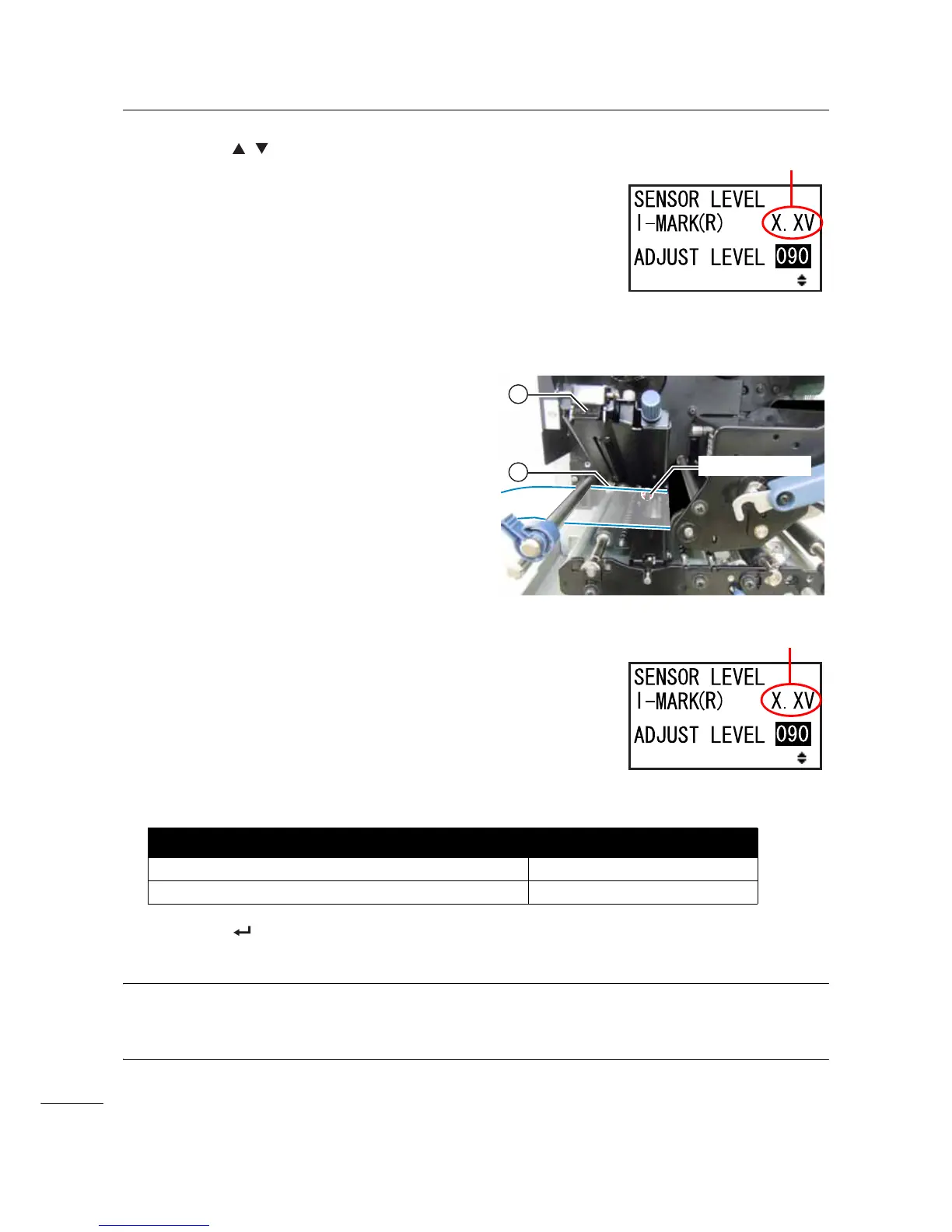

8 Press the / buttons to change ADJUST
LEVEL until the I-MARK(R) value is 0.3 V
or lower.
The adjustment range of ADJUST LEVEL is from 0
to 127.
9 Take a note of the I-MARK(R) value from
the above procedure. This is the “Low”
level value for the I-mark sensor.
Next, check the “High” level (voltage) of the I-mark sensor.
10 Unlock the media feed and media sensor
assembly .
11 Physically place the I-mark media  again,
so that the media sensor can sense the
I-mark.
12 Press the media feed and media sensor
assembly  down to lock it.
To get the correct adjustment result, close the
media sensor assembly before performing the
adjustment.
13 Check the new I-MARK(R) value. This is
the “High” level value for the I-mark sensor.
If the difference between the “High” and the “Low”
level value is 1.0 V or more, then the adjustment
has satisfied the criteria.
If the difference between the “High” and the “Low”
level value is less than 1.0 V, repeat the procedure
from steps 5 through 13.
Hint: In step 8, adjust the ADJUST LEVEL such that
the low level value is a little higher than 0.3 V.
14 Press the ENTER button to confirm the setting and proceed to the next adjustment
screen.
Note
If you are having difficulties in adjusting the sensor level properly, clean the media sensor portion. If the
problem persists, contact your SATO reseller or technical support center to replace the media sensor.
Criteria for Adjustment:
Low level (portion without I-mark): ≤ +0.3 V
High level (I-mark position) - Low level: ≥ +1.0 V
Low level: ≤ +0.3V
1
2
I-mark sensor
High level
