7 Appendix
251
S84-ex/S86-ex Operator Manual
8 Insert the gear end of the pressure
roller fully into the printer’s center
frame.

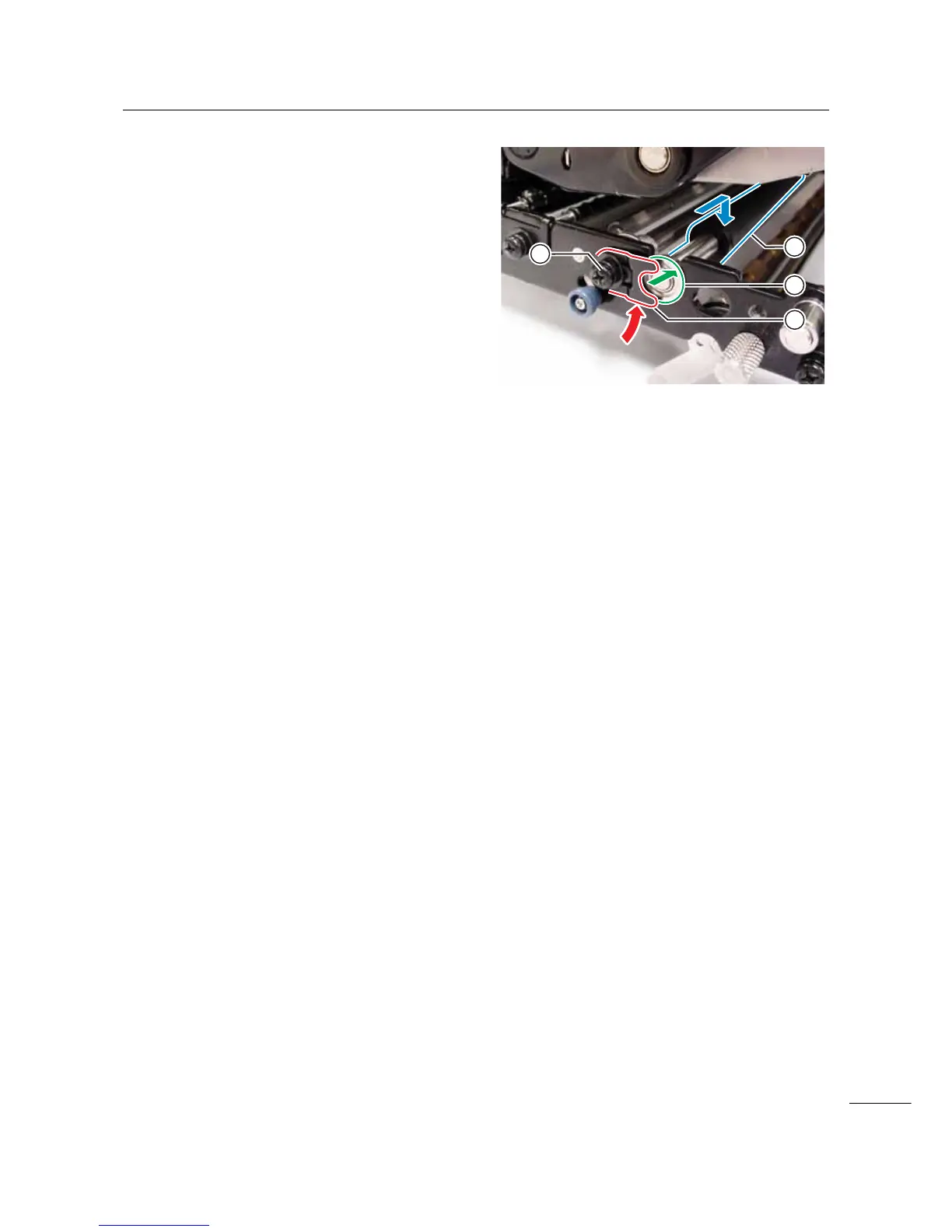

9 Place the bearing back to the chassis
and the shaft of the pressure roller.
10
Rotate the bearing clamp onto the
bearing and attach it with the
screw .
11
Push the center of the pressure roller
plate to latch it in place.
To Next Page
