Communication interfaces
5-5
Onboard interfaces
5

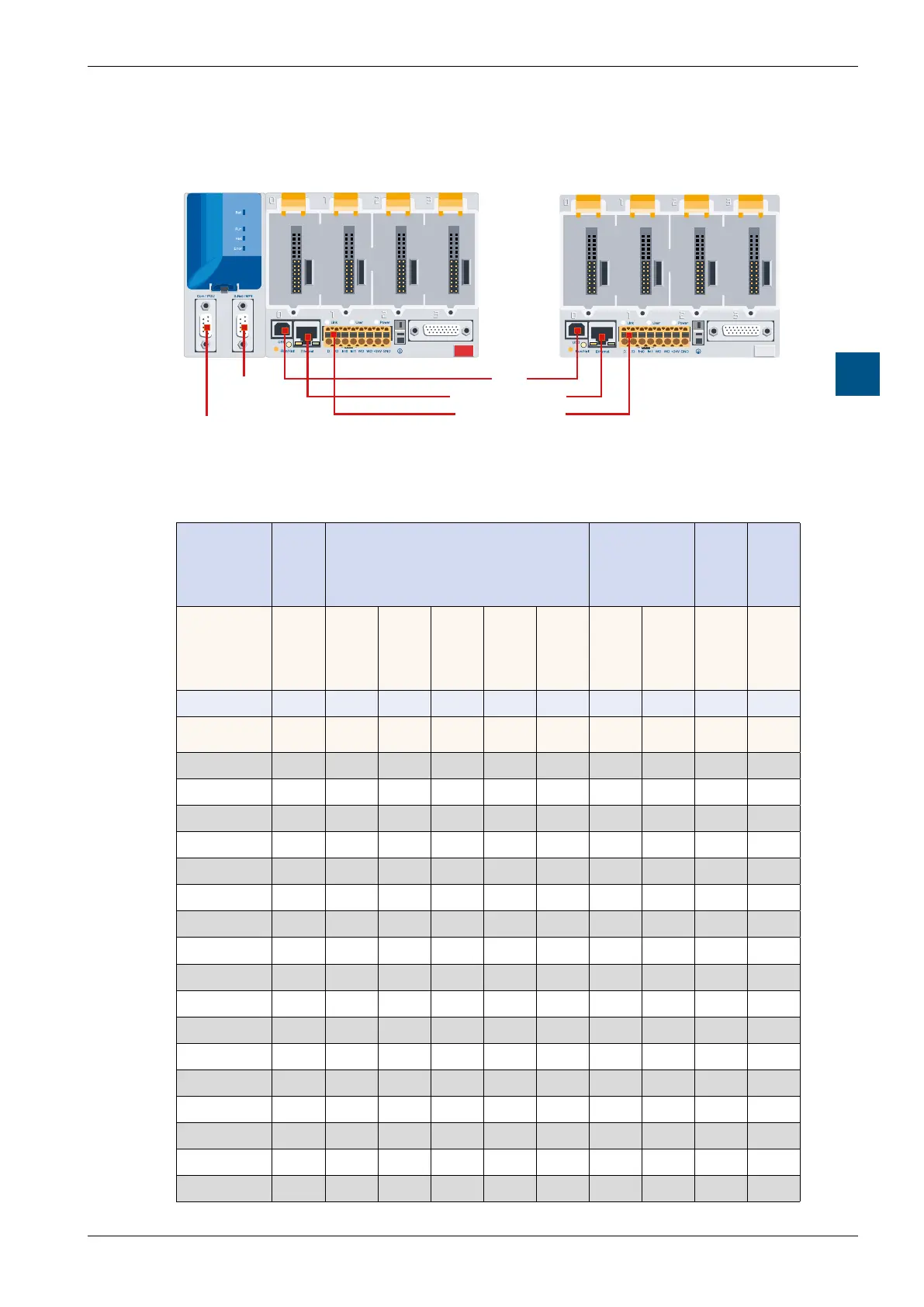

5.3 Onboard interfaces
RS-232/PGU (Port 0)
5560
Saia PCD3.M
3330
Saia PCD3.M
USB
Ethernet (Port 9)
RS-485 (Port 2)
S-Net/MPI
(Port 10)
5.3.1 Summary table
Connec- tion type D-Sub #1 (PGU) D-Sub #2 Terminal block Ethernet USB
Onboard interfaces RS-232 RS-485 (serial) RS-422 (serial) ProS-Net/ DP slave CAN ProbusDP Master RS-485 ProS-Net/ DP slave USB 1.1 slave (PGU)
PortNo 0 3 3 10 10 10 2 2 9
Max. baud
rate
115.2
kbit/s
115.2
kbit/s
115.2
kbit/s
1.5
Mbit/s
12
Mbit/s
115.2
kbit/s
187
kbit/s
10/100
Mbit/s
PCD3.M3020
  
PCD3.M3120
   
PCD3.M3160
   
PCD3.M3230
  
PCD3.M3330
   
PCD3.M3360
   
PCD3.M5340
      
PCD3.M5360
      
PCD3.M5440
    
PCD3.M5540
     
PCD3.M5560
     
PCD3.M6240
    
PCD3.M6340
     
PCD3.M6440
    
PCD3.M6540
     
PCD3.M6560
     
PCD3.M6860
 
2×

