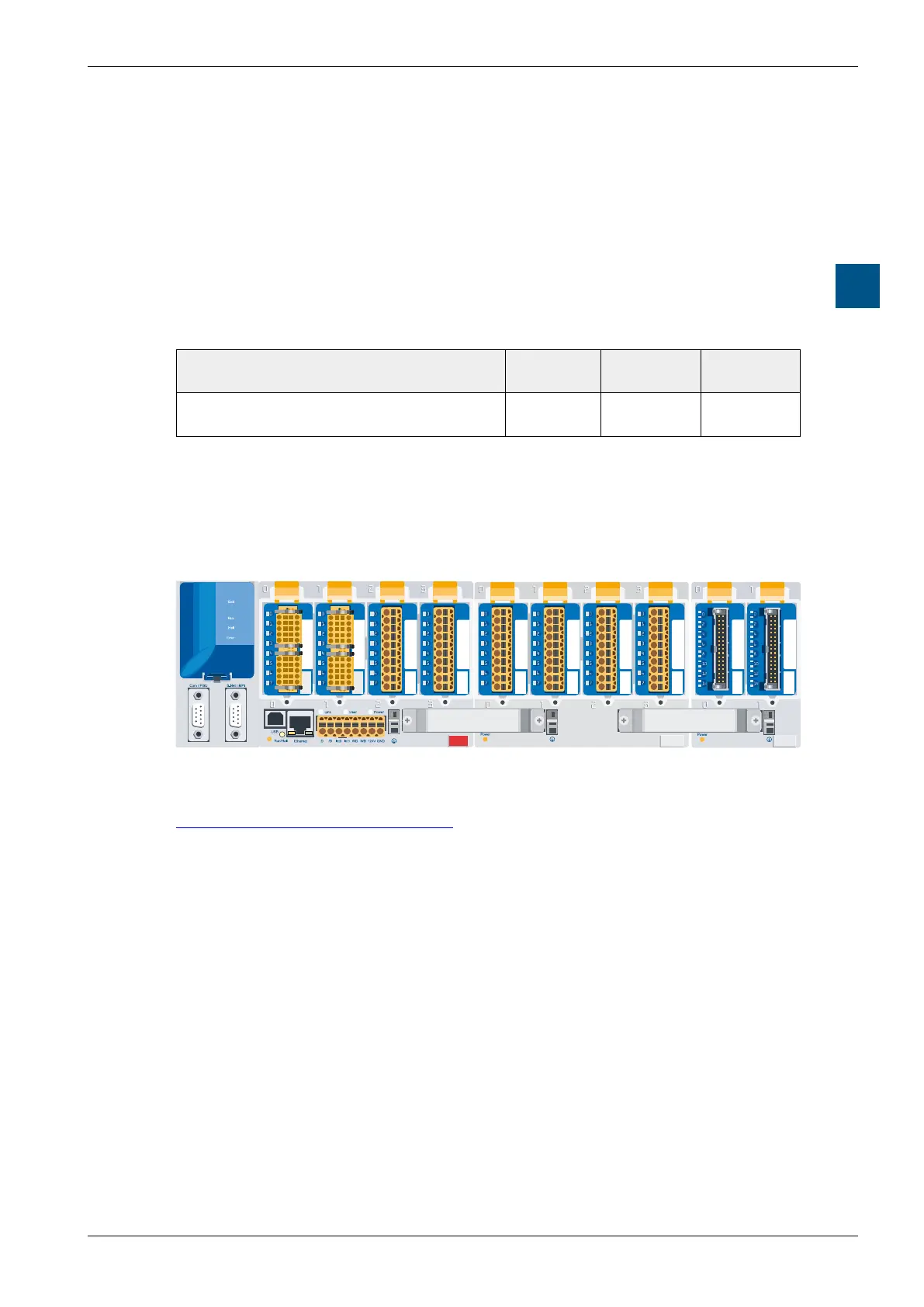

3.5 Extension with PCD3 components
The PCD3.Mxxxx can be extended with extension module carrier PCD3.Cxxx so
that additional module slots are available (chapter 3.6 Module carrier).
Up to 15 PCD3.Cxxx module carriers with PCD3.K010 connectors and/
or PCD3.K106 or PCD3K116 cables can be connected to the PCD3.Mxxx0
(PCD3.M3020 / 3120 are not expandable). This allows the user to connect a
maximum of 64 I/O modules or 1023 digital inputs/outputs.
PCD3.M.. 3020
3120
3230
3330
5xx0
6xx0
Maximum number of inputs / outputs or
I/O module slots of the system:
64
1)
4
1023
1) 2)
64
1023
1) 2)
64
1) When using digital I/O modules PCD3.E16x or PCD3.A46x with 16 I/Os each
2) The address 255 is reserved for the watchdog on all PCD3. The I/O reserved for the watchdog can not be used
by the user, and analog and H modules must not be deployed with the slots with base address 240
PCD3.M5560 PCD3.C100 PCD3.C110
100
C110
Saia PCD3.C
5560
Saia PCD3.M
E
1
6
0
E
1
6
0
A
4
0
0
A
4
0
0
W
3
4
0
W
3
4
0
W
3
4
0
W
3
4
0
F
2
8
1
F
2
1
0
For details see 3.6 Module carrier
