5.3.7 USB PGU interface for programming device connection
For the USB interface (type B) of the PCD3.Mxxx0 to be
used, PG5 version 1.3.100 or later must be installed.
3330
Saia PCD3.M
WhenaPCD3.MxxxxisconnectedtoaPCforthersttimeviatheUSBinterface,
the operating system of the PC automatically installs the relevant USB driver.
To establish a connection with a Saia PCD
®

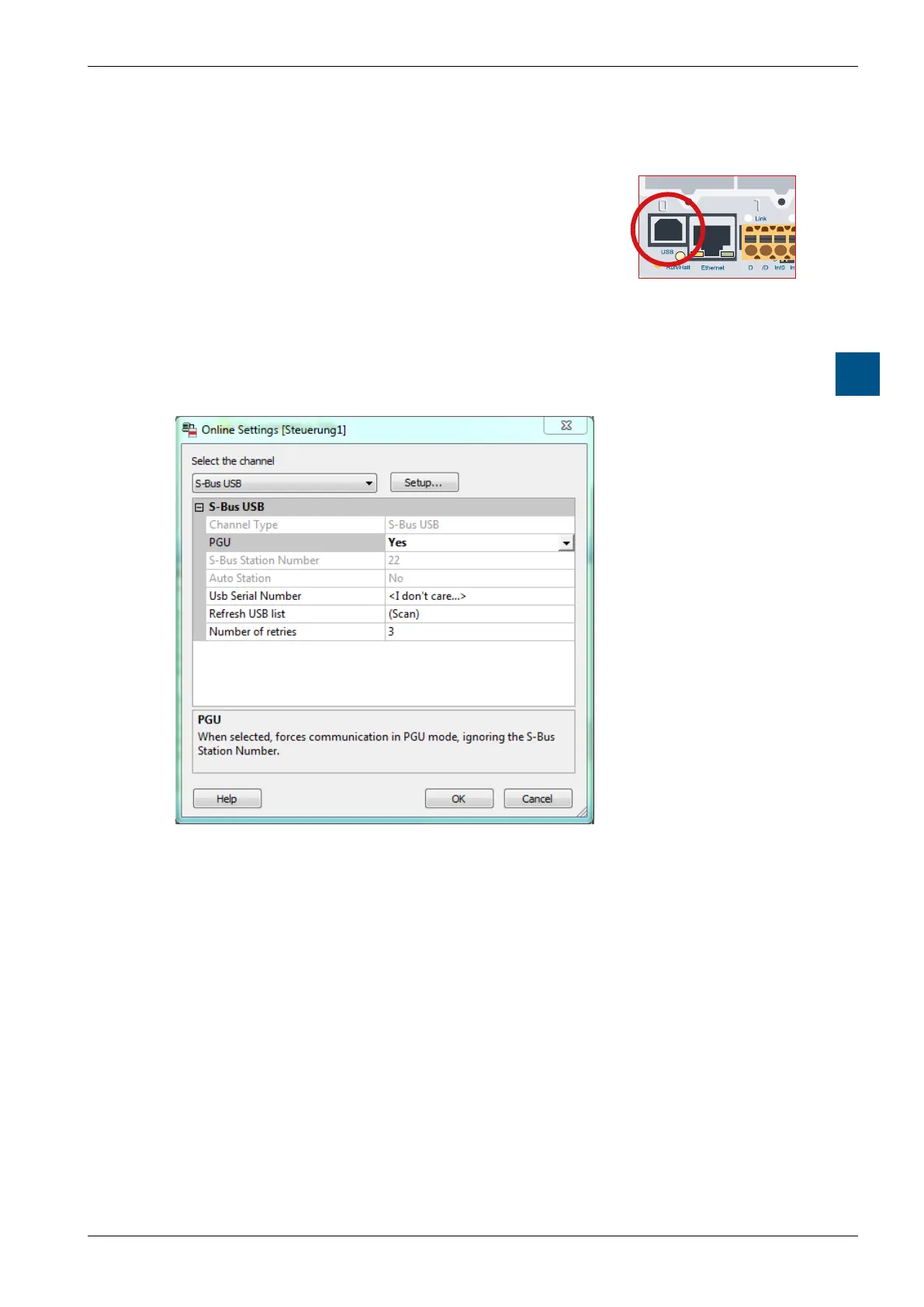

via USB, the following settings must
be made in the online settings of the PG5 project:
The activation of the PGU option ensures that the PCD3.Mxxxx connected directly
tothePCcanbecommunicatedindependentlyoftheconguredS-Busaddress.
