SBC PCD3 Series User Manual

Saia-Burgess Controls AG
Hardware manual for PCD3 series │ Document 26-789 ENG19│ 2018-06-29

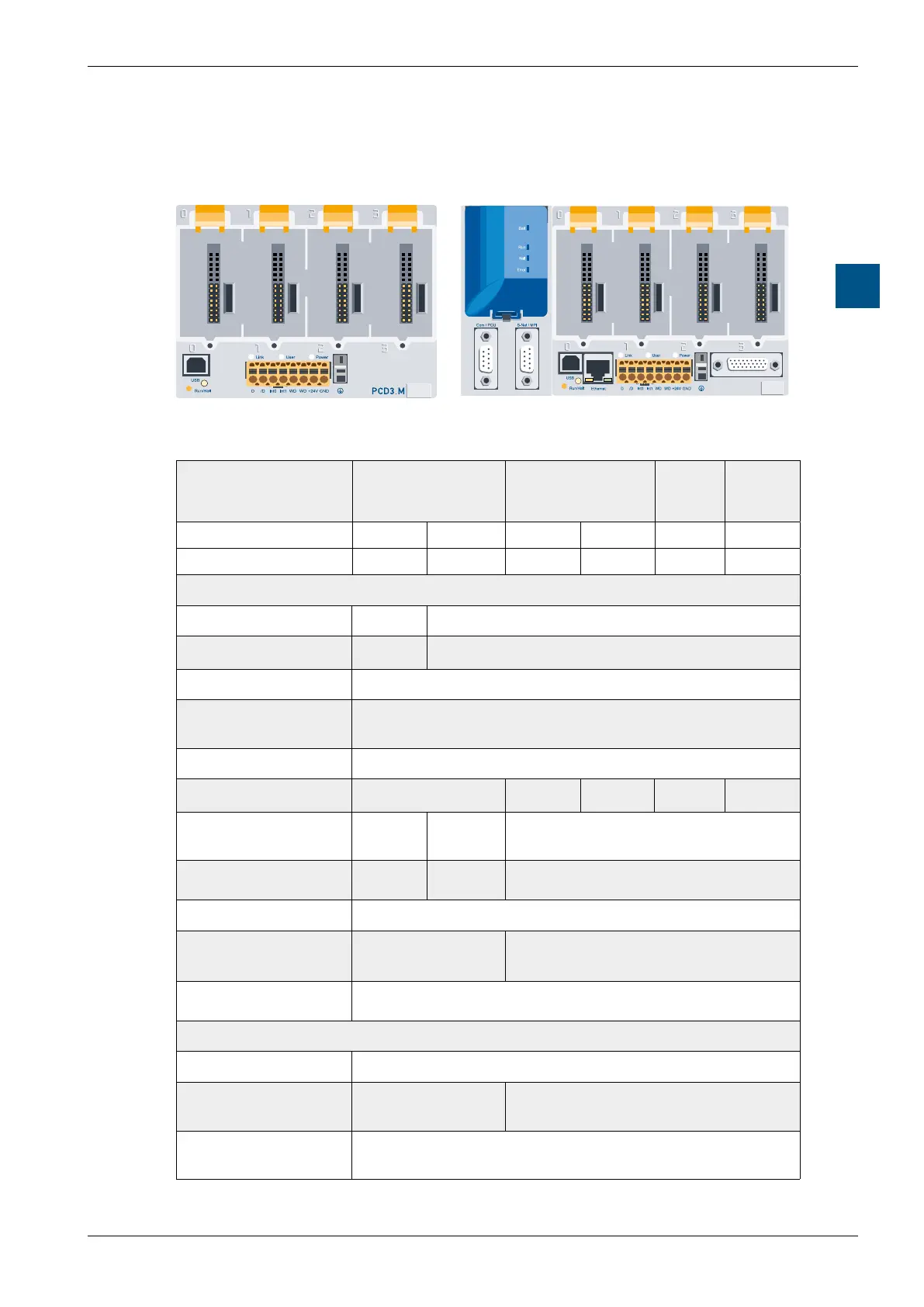

PCD3 CPUs
PCD3.Mxxx0 Classic CPU and expansion enclosure
3-8
3
3.4.2 PCD3.M3x20 / PCD3.M3x30 and PCD3.M5x40 / PCD3.M6x40
3020
5540
Saia PCD3.M
󰀨
basic devices
Basic Extended CAN

DP
Master
PCD3.M. 3020 3230 5340 5440 6240 6440
PCD3.M. 3120 3330 5540 6340 6540
General features
I/O bus extension -

In-/Outputs or
I/O module slots
to 64
1)
4
bis 1023
1) 2)
64
Processor (Motorola) CF 5272 / 66 MHz
Processing time
Bit command
word command
0.3…1.5 µs
3)
0.9 µs
3)
Firmware update Download with PG5 possible
Can be programmed
with PG5
from 1.3.1002 M3120
from 1.4.100
from
1.4.120
from
1.3.1002
from
1.4.100
from
1.4.120
Memory for user program /
text / DB
(RAM)
128 KByte 512 KByte
4)
1 MByte
4)
Backup memory onboard
(Flash)
128 KByte 512 KByte
4)
1 MByte
4)
1 MByte Flash Card (optional)
Date-clock accuracy
, better than 1 min./month
Data backup
4 hours with Super Cap
(after 10 minutes of
charging time)
Lithium Battery Renata CR 2032
1-3 years
5)
Interrupt inputs max. Input
frequency
2
1 kHz
6)
Interfaces
Programming interface USB
7)
Programming interface
(PGU) or as a serial
interface
-
Port 0
RS-232
to 115 kBit/s
Optional serial data
interfaces
Port 1
RS-232, RS-422/485 or TTY current loop 20mA,
pluggable (PCD3.F1xx modules), up to 115 kBit / s
