Module carrier
PCD3.Mxxx0 Classic CPU and expansion enclosure
3-20
3
3.6.2 Calculation of the possible load
ThePG5DeviceConguratorautomaticallycalculatestheloadofthepower
supplying devices through the I/O modules used. This indicates whether one or
more I/O bus repeaters PCD3.C200 should be used.
Comment: I/O bus segment means all module carriers from the current CPU
or PCD3.C200 to another PCD3.C200 repeater.
3.6.3 Module carrier connections
To connect the module carriers with each other, the following plug connections
should be used.

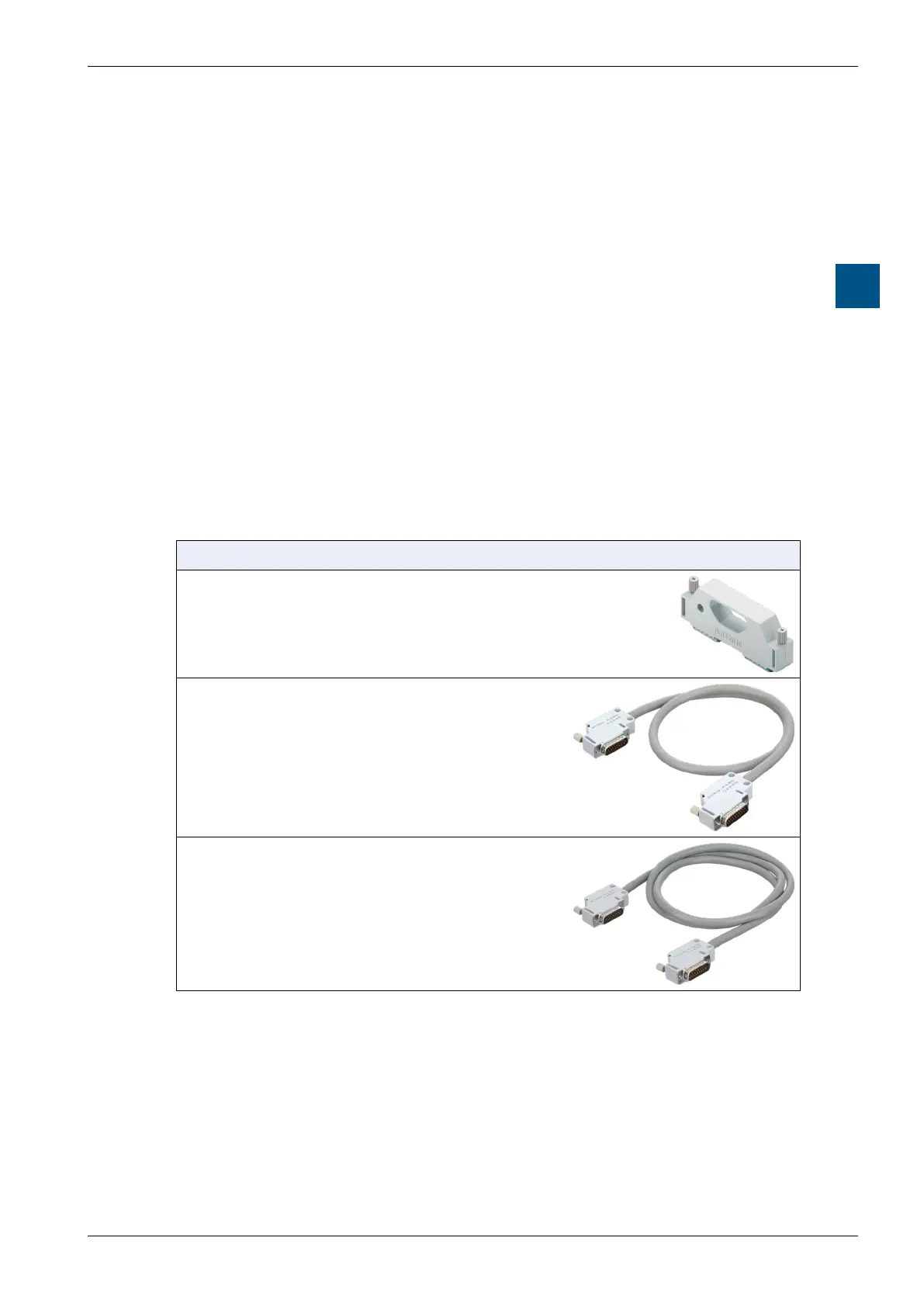

Ordering information:
Extension plug and cables
PCD3.K010 Extension plug
PCD3.K106 Extension cable 0.7 m
PCD3.K116 Extension cable 1.2 m
