SBC PCD3 Series User Manual

Saia-Burgess Controls AG
Hardware manual for PCD3 series │ Document 26-789 ENG19│ 2018-06-29
Storage space on the PCD3
PCD3.Mxxx0 Classic CPU and expansion enclosure
3-48
3
 
In the case of automation devices with
nointegratedμSDcardandwhichare
equipped with the COSinus system, the
user application is copied directly to the
user memory from Saia PG5
®
. If no valid
program is detected in the user program
when the controller is started up, a search
is executed for a backup program in the
onboardashoranoptionalmemory
module.
P CD3.Mxx4x P CD3.M3xxx
P CD3.M2x30
PCD7.R562

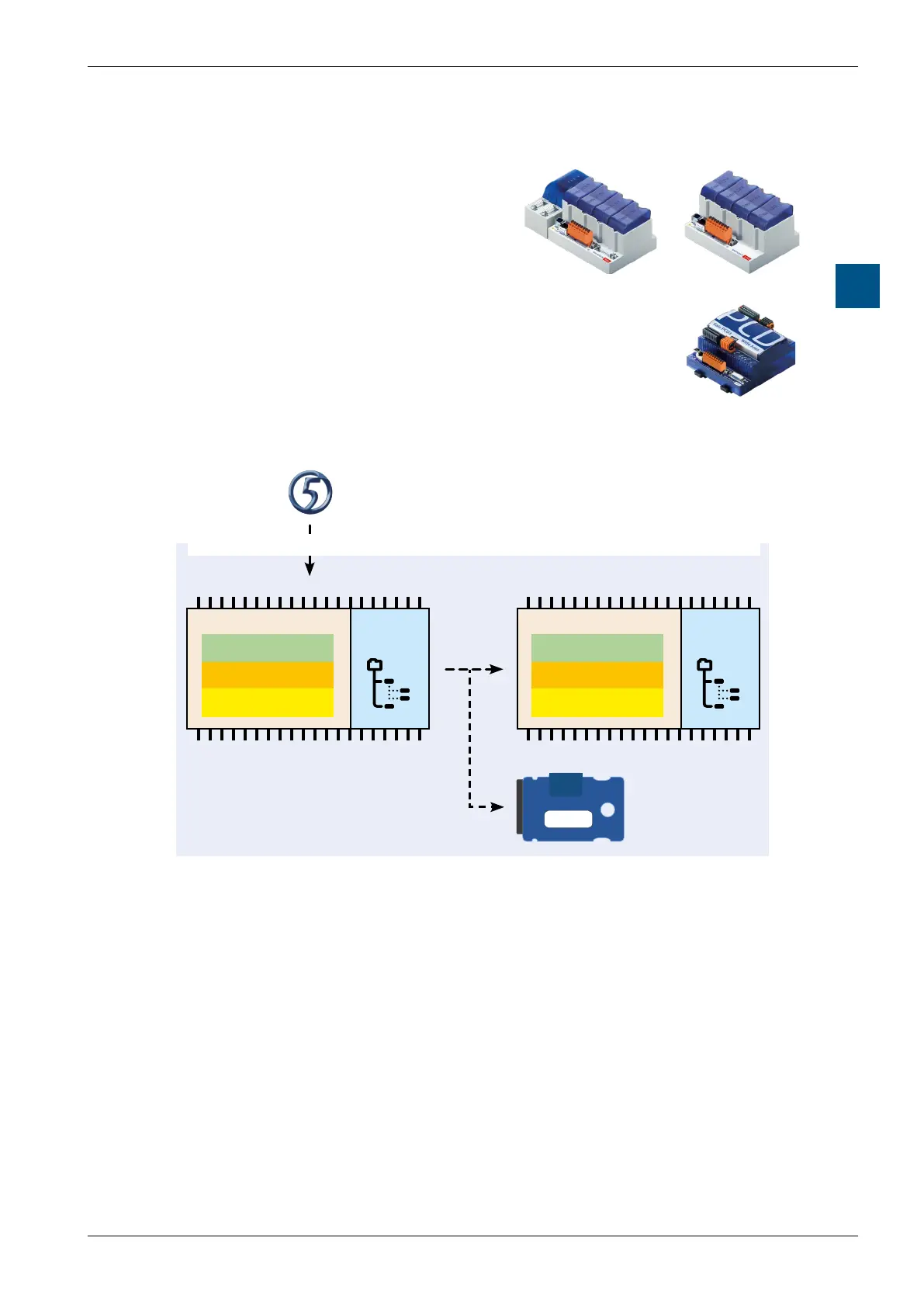

Loading of the user program from PG5® onto Saia PCD®
automation devices and allocation of dierent data between
the storage media.
On-Board Flash
save
if required
RAM TEXT/DB
SRAM
User program
ROM TEXT/DB
Media (R, T, F)
File system
Flash memory modules
PCD3.M3xxx, PCD3.M554x, PCD3.M2130, PCD3.M2330
PCD7.R5xx
PCD7.R6xx
PCD7.R-SD
PCD7.R5xx
PCD7.R6xx
PCD7.R-MSD
RAM TEXT/DB
SRAM
User program
ROM TEXT/DB
Media (R, T, F)
File system
RAM
Memory = User Program Memory (RAM)
In these systems, the User Program Memory consists of a RAM (Random Access
Memory) and includes the program code and a range of text and DB memory
(addresses 0…3999). Furthermore, it contains the extension memory, which also
contains texts and DBs (addresses ≥ 4000) as well as the media R, T, F.
AlltextsandDBsarealwaysinRAMonthisPCD3.Themaindi󰀨erencebetween
the texts and DBs in the text/DB memory segment and those in the extension
memory is the higher maximum capacity of the DBs and texts.
