Hardware manual for PCD3 series │ Document 26-789 ENG19│ 2018-06-29
Dimensions
PCD3.Mxxx0 Classic CPU and expansion enclosure
3-23
3

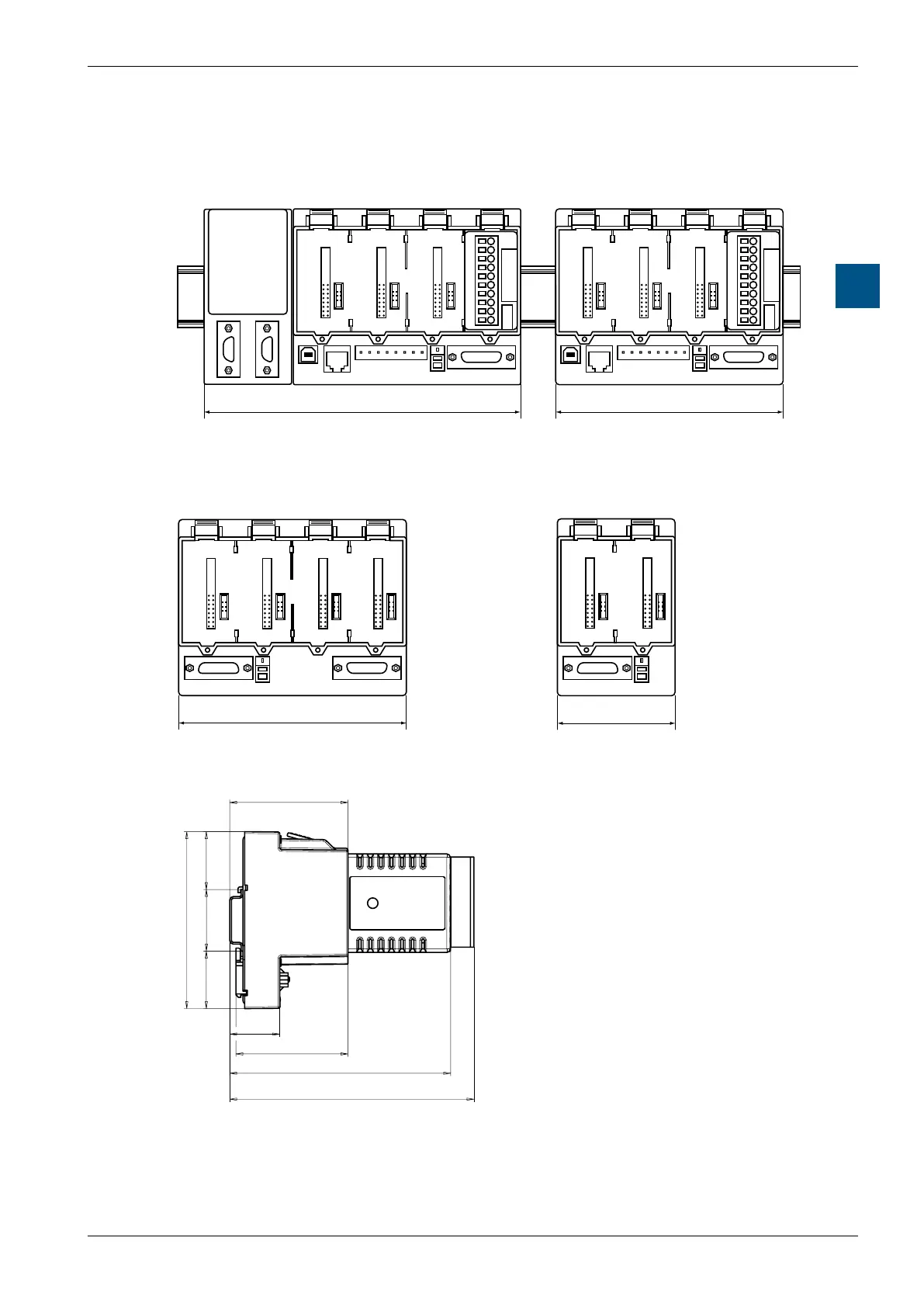

3.8 Dimensions
PCD3.M5xx0/M6xx0 PCD3.M3xx0
180
130
PCD3.C100/C200/T76x
PCD3.C1
10
130
66
28.5
63.8
125.8
139
67.3
100.5
35
32.8
32.7
45
47
