SBC PCD3 Series User Manual

Saia-Burgess Controls AG
Hardware manual for PCD3 series │ Document 26-789 ENG19│ 2018-06-29
Communication interfaces
5-9
Onboard interfaces
5

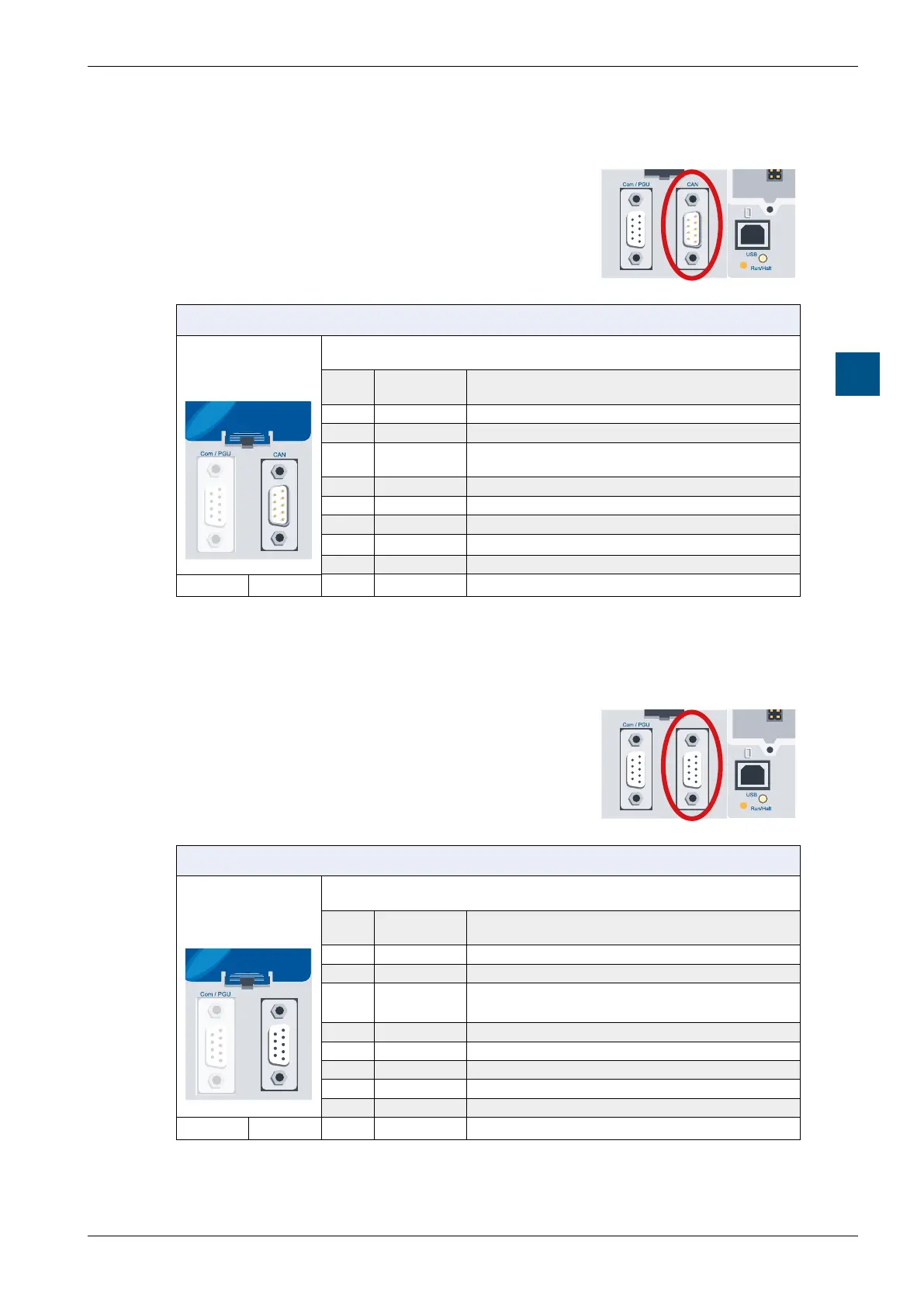

5.3.5 CAN (port 10)
This interface is connected to a 9-pin D-sub (plug)
connector and is of type RS-485.
6240
PCD3.M6240, PCD3.M6340 and PCD3.M6360
6360
Saia PCD3.M
Saia PCD3Saia PCD3 Saia PCD3Saia PCD3 Saia PCD3Saia PCD3 Saia PCD3Saia PCD3
5
4
3
2
1
9
8
7
6
CAN
Port 10
D-Sub
pin
Signal Explanation
1 n.c. ---
2 CAN_L
1)
Receiving/sending neg.
3 GND
Data transfer pot.
Dimensions
4 n.c. ---
5 n.c. ---
6 n.c.
7 CAN_H
1)
Receiving/sending pos.
8 n.c. ---
9 n.c. ---
Port 0 Port 10
1)
Electrically isolated
 
This interface is routed to a 9-pin D-sub connector
(socket) and is of type RS-485.
6440
Profibus DP
PCD3.M6440, PCD3.M6540 und PCD3.M6560
6540
Profibus DP
Saia PCD3.M
Saia PCD3Saia PCD3 Saia PCD3Saia PCD3 Saia PCD3Saia PCD3 Saia PCD3Saia PCD3
5
4
3
2
1
9
8
7
6

Port 10
D-Sub
pin
Signal Explanation
1 ---
2 GND
2)
Shield dimensions
3 B red Receiving/sending pos.
4 En ---
5 GND_BUS For terminators
6 +5 V_BUS For terminators
7 24 V
2)
---
8 A green Receiving/sending neg.
9 n.c. ---
Port 0 Port 10
2)
not electrically isolated
