Optional memory upgrades
PCD3.Mxxx0 Classic CPU and expansion enclosure
3-60
3
3.19.2 Storage module PCD3.R600 for Flash cards (FC)
System overview
PCD3.R600 is an I/O module for industrial Secure Digital (SD) Flash card
applications, which can be plugged into the I/O slots 0 … 3 of a PCD3.Mxxxx.
The SD cards can be replaced under voltage.
TheSDcardscanbeaccessedinthreedi󰀨erentways:
● Via Ethernet TCP/IP with FTP server
● With a browser via Saia PCD
®
web server
● With the Saia PCD
®
programmusingalesystemlibrary

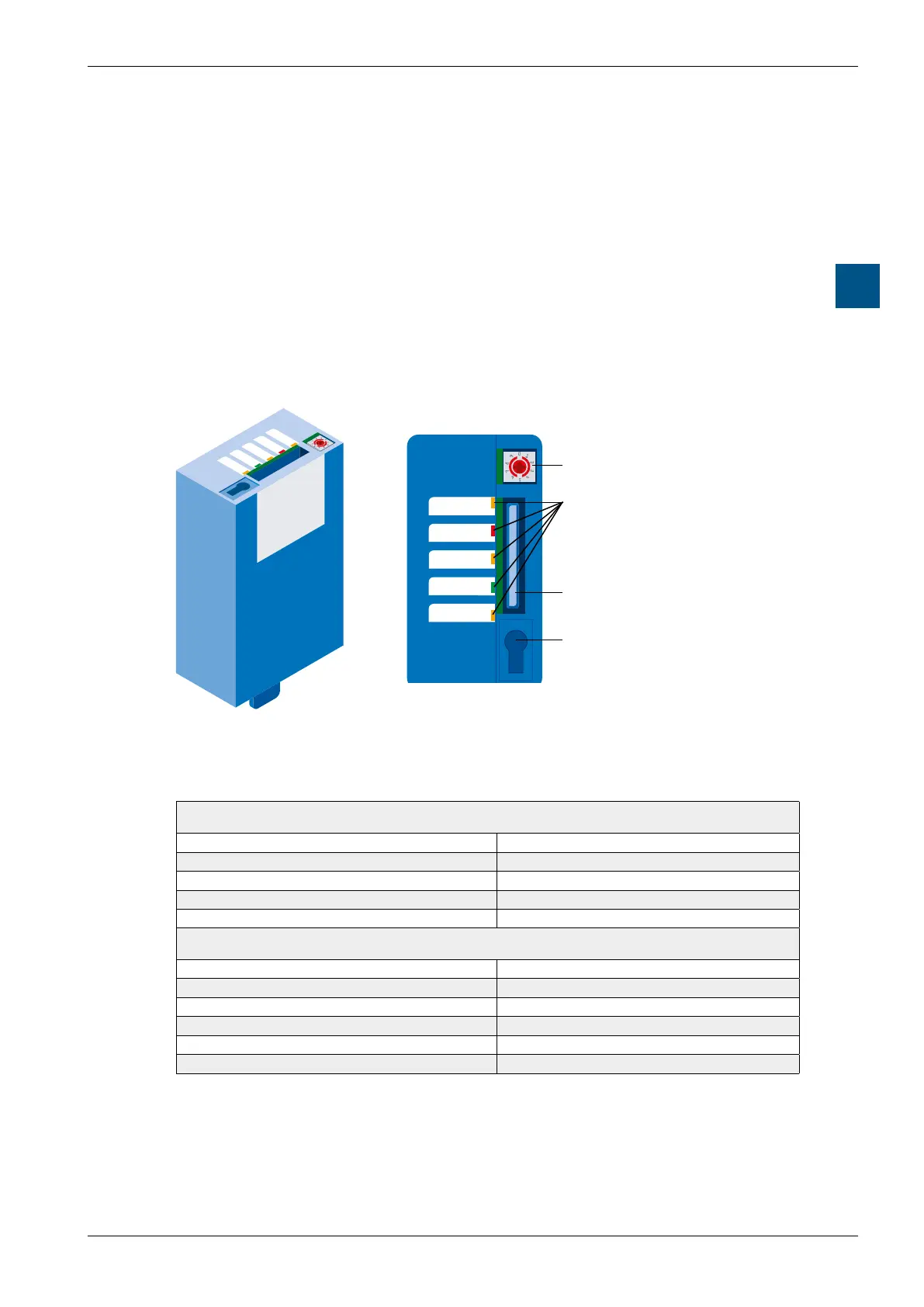

Activity
Busy
Write
Prot
Diag
User
BCD switch
LEDs
Flashcard
slot
Switch
Activity
Busy
Write
Prot
Diag
User
Technical data
PCD3.R600 module
PowerconsumptionwithoutSDashcard 15 mA
Max.Powerconsumptionincl.SDashcard 100 mA
Display 5 LEDs
Operating mode setting BCD Switch
Card holder and detection switch With labeling clip

Supported capacity 128, 256, 512 MB, 1 GB
Technology Single level cell
Durability 600,000 or more program/delete cycles
Data retention 5 years or more
Operating temperature –25 °C…+85 °C or better
MTBF 1,000,000 hours or better
