SBC PCD3 Series User Manual

Saia-Burgess Controls AG
Hardware manual for PCD3 series │ Document 26-789 ENG19│ 2018-06-29
Cabling
Guidance
2-7
2

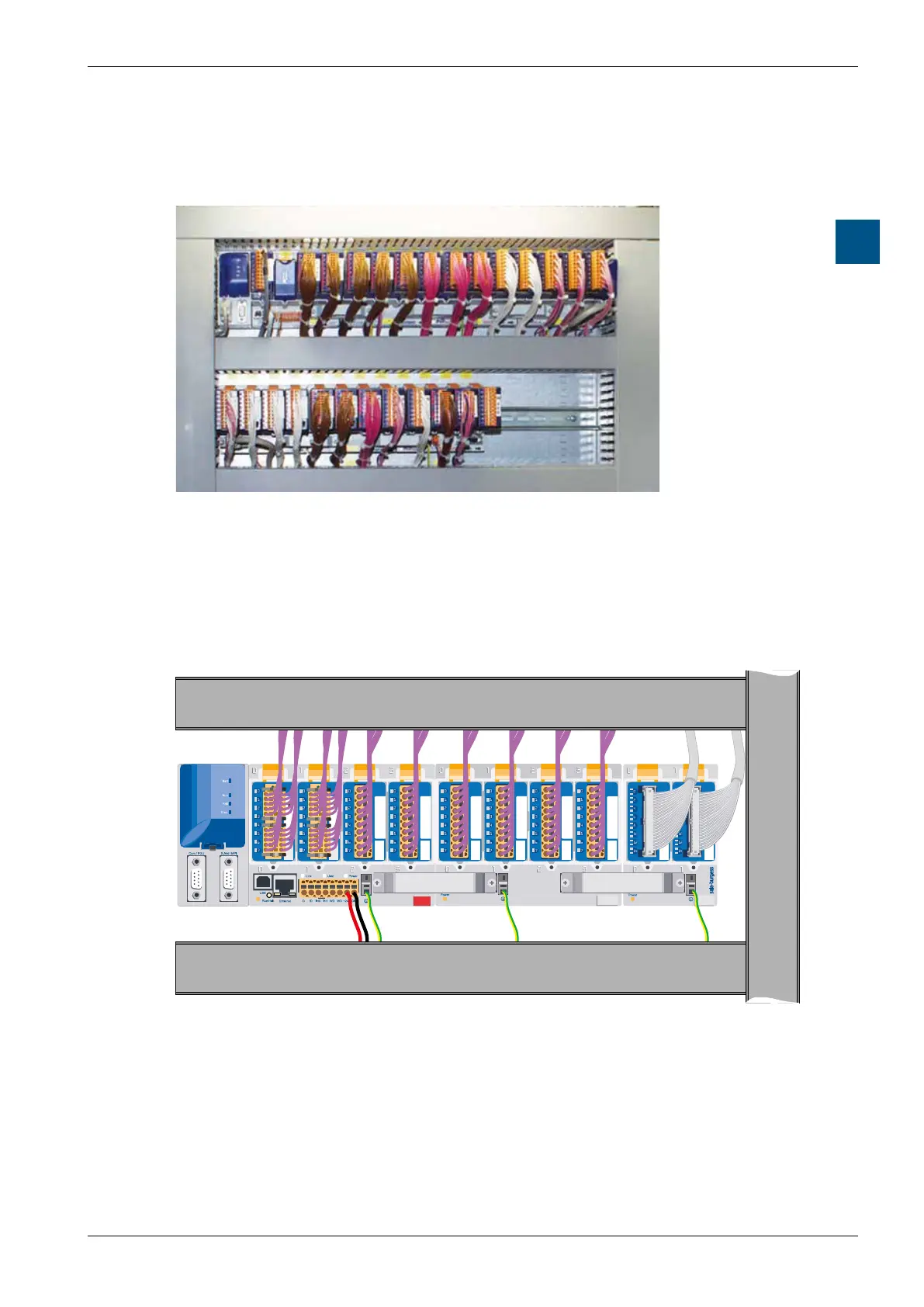

2.5 E/A module cabling
It is recommended to wire the I/O modules from a cable duct.
2.5.1 Cable layout
Inordertohaveenoughspace,adistanceofatleasttwongersbetweenthe
module carrier and the cable channel is recommended. This is very helpful in
troubleshooting (wiring) and a possible module change.
100
Saia PCD3.C
5560
Saia PCD3.M
110
E
1
6
0
E
1
6
0
A
4
0
0
A
4
0
0
W
3
4
0
W
3
4
0
W
3
4
0
W
3
4
0
F
2
8
1
F
2
1
0
In particular cables to connections on the lower part of the module carrier (supply,
grounding) should preferably be wired under the module carriers with a cable duct.
Following these rules ensures the visibility of the LEDs and access to the bus ports.
