Module carrier
PCD3.Mxxx0 Classic CPU and expansion enclosure
3-16
3

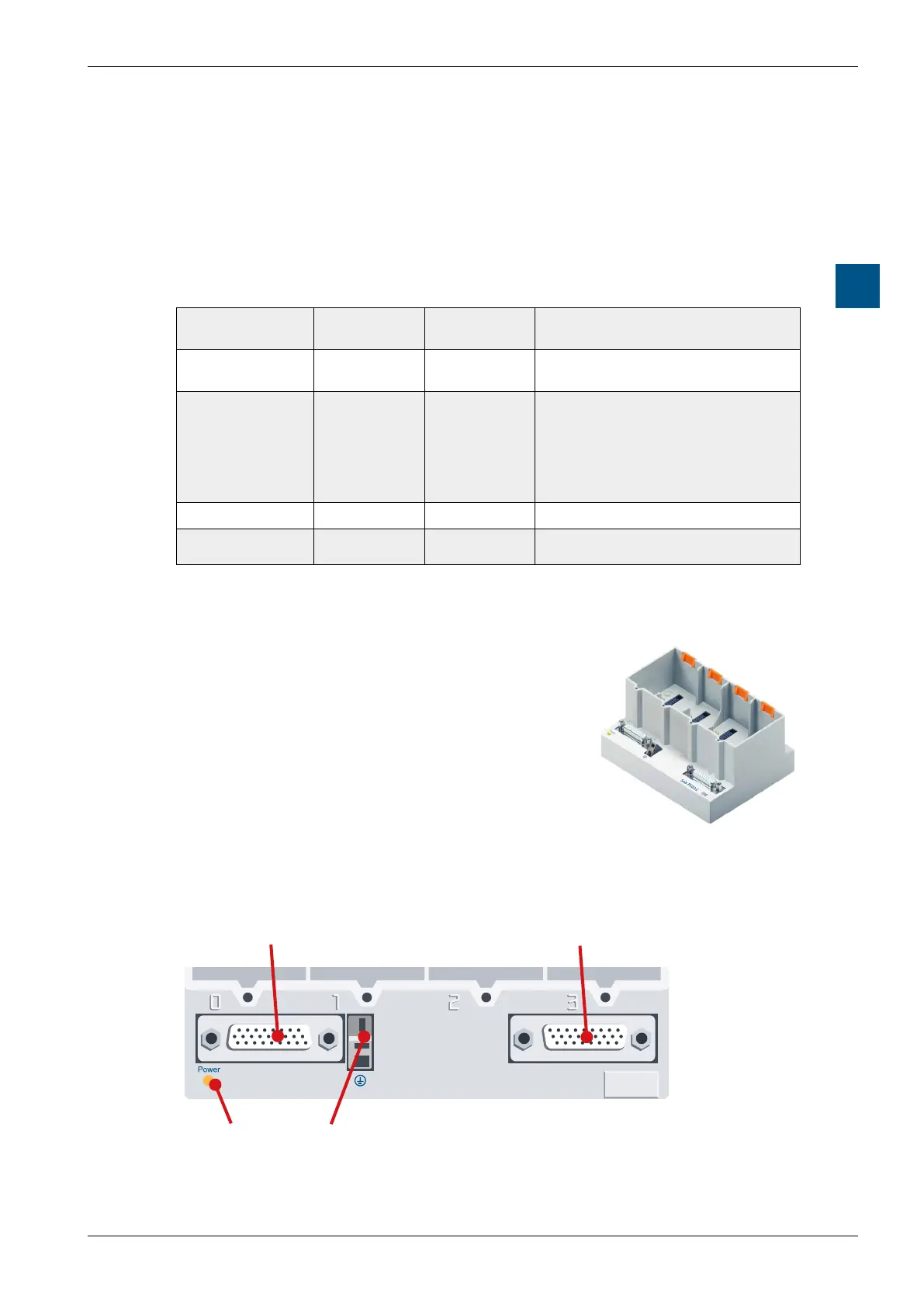

3.6.1 The module carriers (LIO)
The PCD3.LIO (Local Input/Output = LIO) is used to acquire central I/O signals.
The compact PCD3.LIO snap onto a 35 mm DIN rail and can be equipped with
PCD3 I/O modules. PCD3.LIOs can be connected as an I/O extension to a
PCD2 CPU, PCD3 CPU or PCD3.RIO.
Threedi󰀨erentmodulecarriersareavailableforreceivingI/Omodules:
Module carrier /
LIO
PCD3.C100 PCD3.C110 PCD3.C200
Number of module
slots
4 2 4
Description 4 I/O modules 2 I/O modules
4 I/O modules,
serves as I/O bus repeater and internally
provides + 5 V and V + for one segment
of I/O modules (for calculation of possible
load see 3.18.3)
Ext. Supply - - 24 VDC
Int. Supply
I to +5 V
10 mA 10 mA -
PCD3.C100 for 4 modules
● For 4 pluggable PCD3 I/O modules
(freely selectable)
● Can be connected to PCD2.Mxxx,
PCD3.Mxxx0, PCD3.RIO and
PCD3.LIO
● Expandable with further PCD3.LIO
(PCD3.C100 /... C110 /... C200)
Connections PCD3.C100 for 4 modules
100
Saia PCD3.C
Bus connection to
module carrier
EarthLED
power ok
Bus connection from CPU
or module carrier
