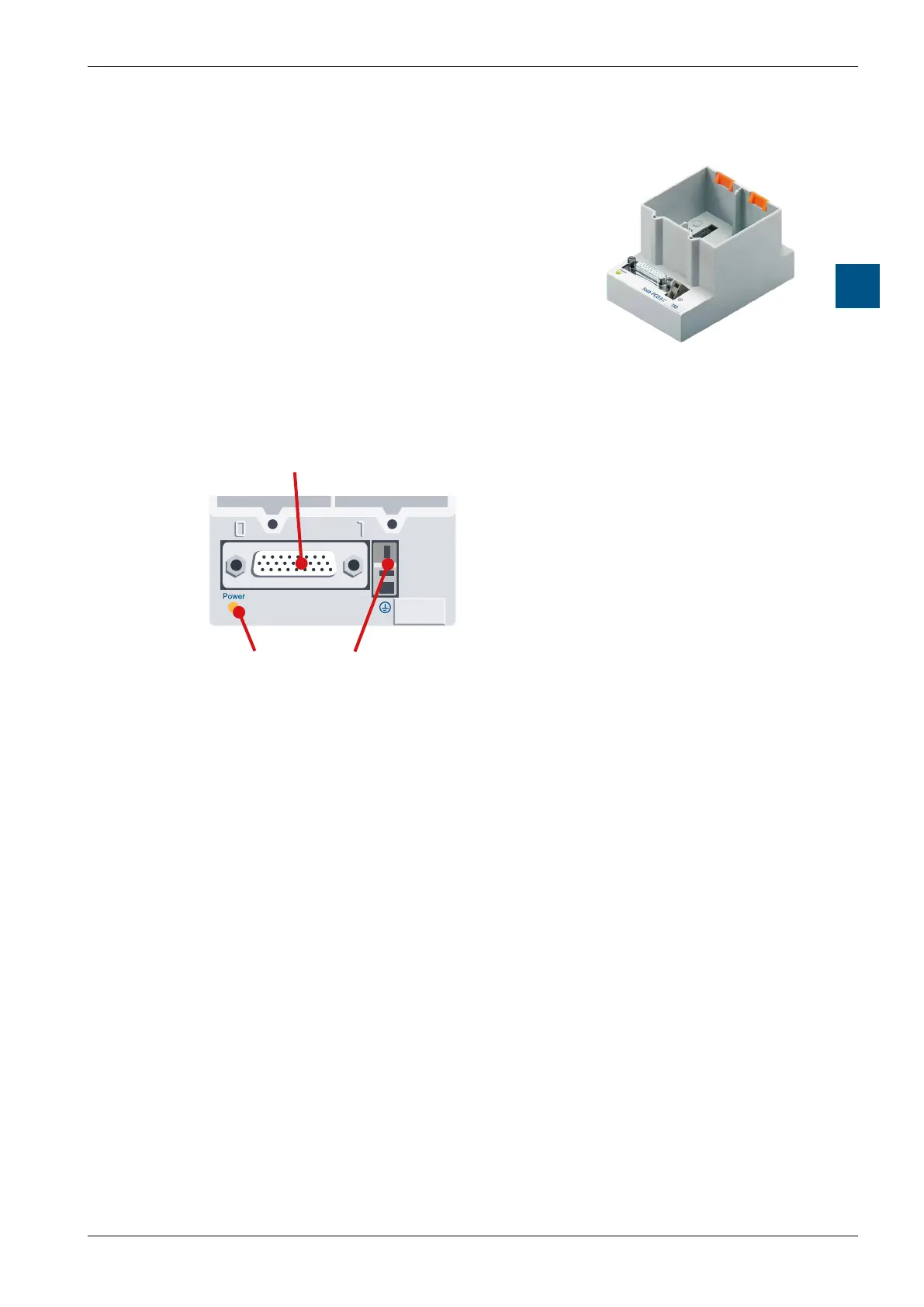

PCD3.C110 for 2 modules
● For 2 pluggable PCD3 I/O modules
(freely selectable)
● Can be connected to PCD2.Mxxx,
PCD3.Mxxx0, PCD3.RIO and
PCD3.LIO
● Not expandable
Connections
C110
Saia PCD3.C
EarthLED
power ok
Bus connection from CPU
or module carrier
