SBC PCD3 Series User Manual

Saia-Burgess Controls AG
Hardware manual for PCD3 series │ Document 26-789 ENG19│ 2018-06-29
Labeling of the module carriers and I/O plug-in modules
Guidance
2-12
2

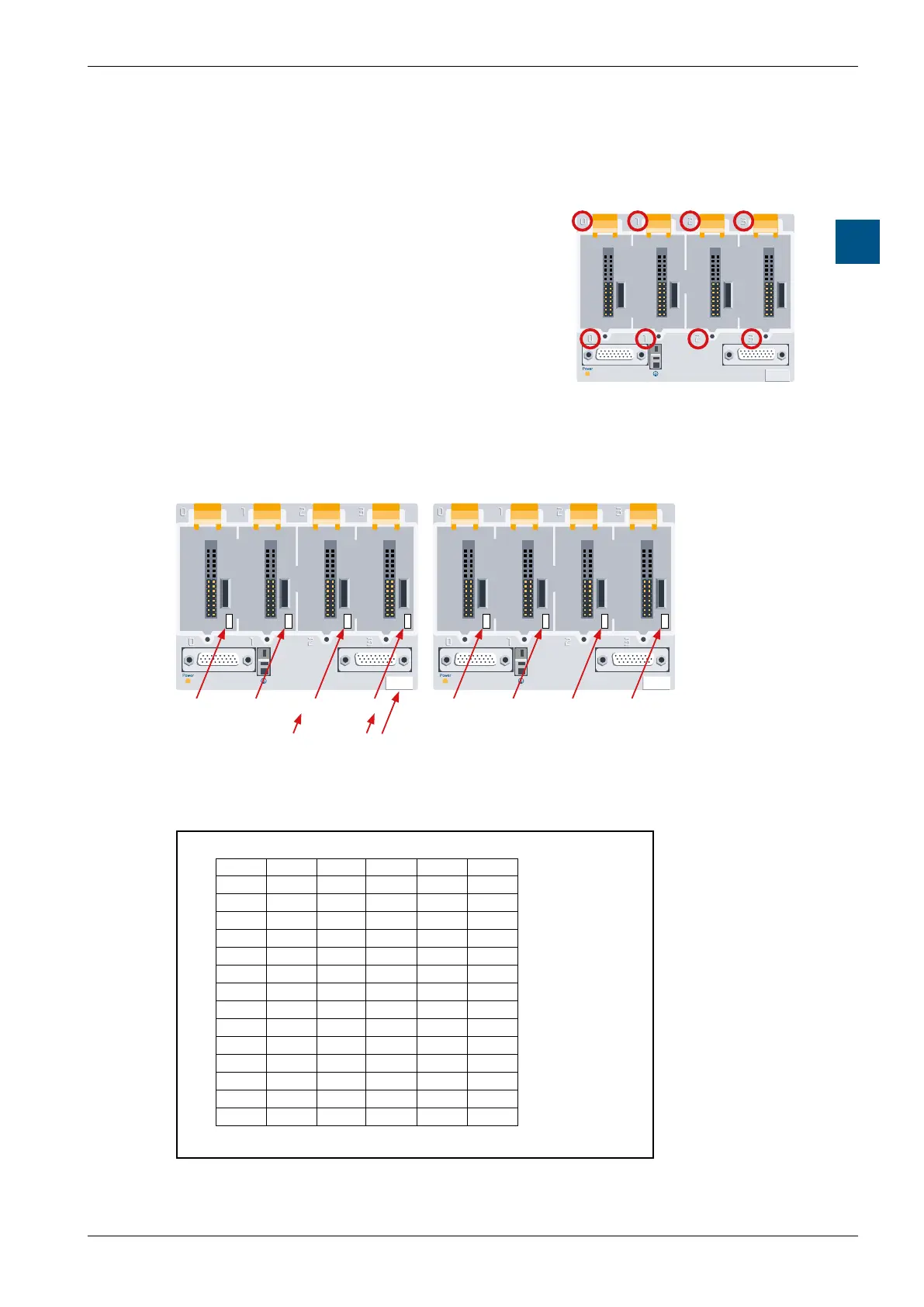

2.8 Labeling of the module carriers and I/O slot modules
2.8.1 Module carrier
The I/O module slots in the module carrier are
labelled with highlighted digits:
0…3 (PCD3.Mxxxx, /T76x, /T66x, /C200, /C100)
0…1 (PCD3.C110
100
Saia PCD3.C
Viewed from the front, each module carrier housing and each module slot has an
addresseldinthelowerrightcorner.
Example:
100
Saia PCD3.C
0-L1 1-L1 2-L1 3-L1
L1
100
Saia PCD3.C
0-L2 1-L2 2-L2 3-L2
L2
Slot module carrier no.
0-L2 1-L2
2-L2 3-L2
0-L1 1-L1
2-L1
3-L1v
All PCD3 module carriers and the extension cable PCD3.K106 / 116 are
accompanied by a matching set of labels as an additional option for labeling.
64 64 80 96 112 0
128 128 144 160 176 0
192 192 208 224 240 16
256 256 272 288 304 32
320 320 336 352 368 48
384 384 400 416 432
448 448 464 480 496
512 512 528 544 560
576 576 592 608 624
640 640 656 672 688
704 704 720 736 752
768 768 784 800 816
832 832 848 864 880
896 896 912 928 944
960 960 976 992 1008
4 310 8686 0
