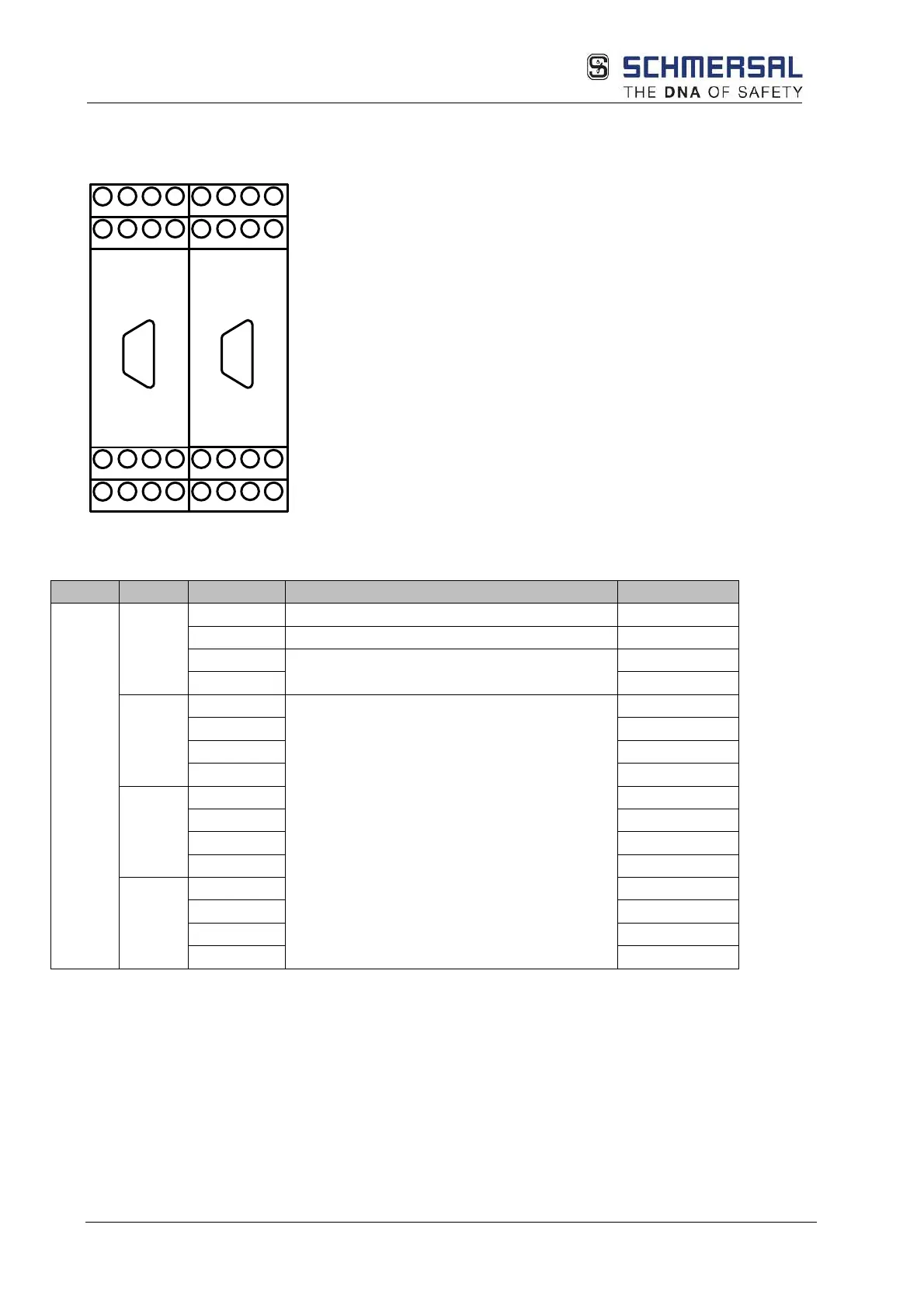

5.7.4 Terminal assignment PSC1-E-23-SDM2
UE1+ UE1- NC NC
I09
I10 I11
I08
X1
1
1
X13
X14
4
4
I00 I01
I02 I03
I04 I05
I06 I07
CPU
1
1
X23
X24
4
4
UE2+ UE2- NC NC
NC
NC NC
NC
X2
1
1
X15
4
4
NC NC
NC NC
NC NC
NC NC
ENC
1
1
4
4
Unit Terminal Pin Description Note
CPU
X13
1 – UE1+
Encoder power supply DC (X1)
2 – UE1-
Encoder power supply 0V DC (X1)
3 – NC
No function
4 – NC
X14
1 – I 00
Safe digital inputs
2 – I 01
3 – I 02
4 – I 03
X23
1 – I 04
2 – I 05
3 – I 06
4 – I 07
X24
1 – I 08
2 – I 09
3 – I 10
4 – I 11
