Installation manual
HB-37420-810-01-25F-EN PSC1-C-100 Installation manual - V2.2.docx Page 31 of 201
Version: 25F
3.7.3 Decentral expansion module

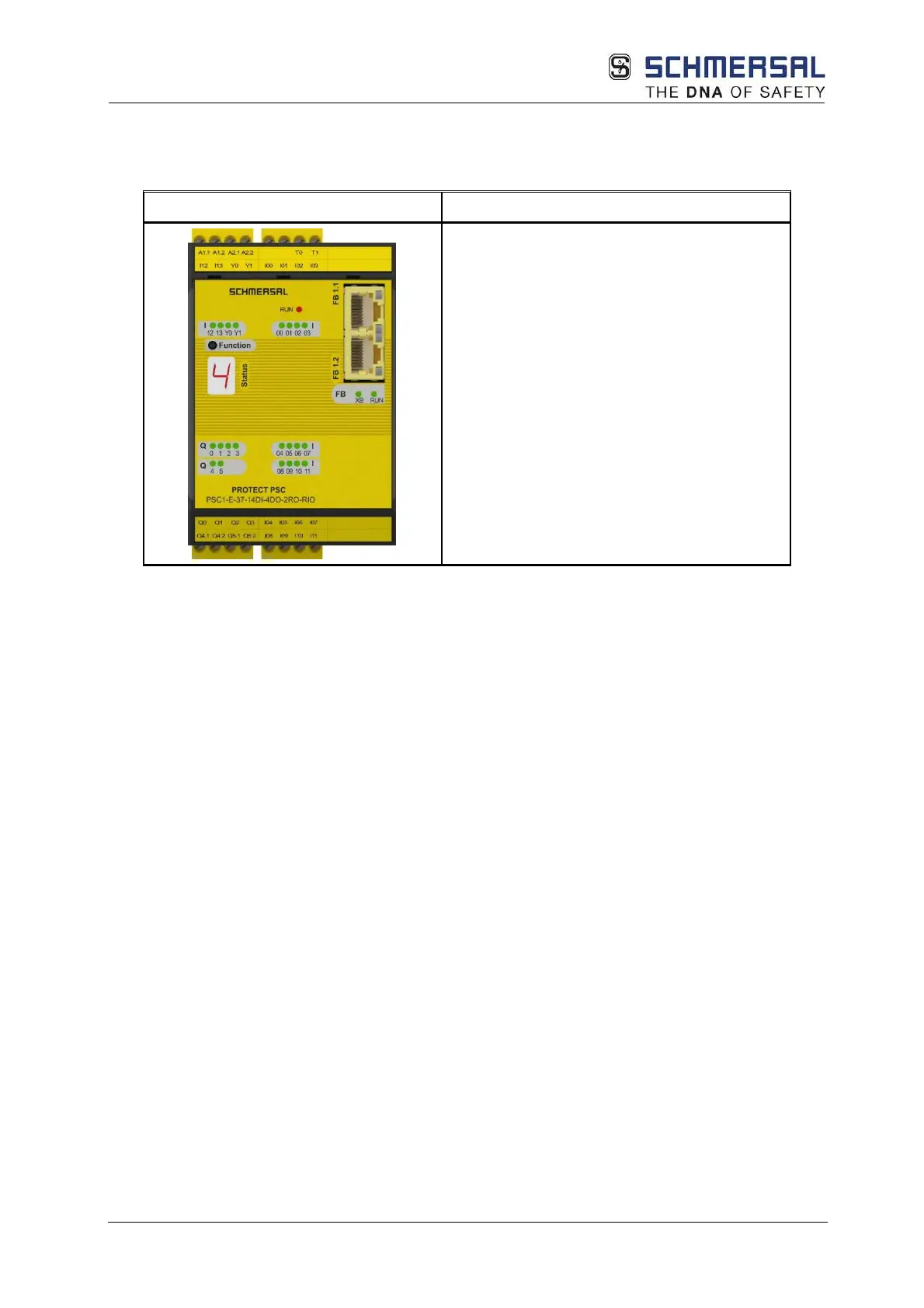

3.7.3.1 PSC1-E-37
Type designation Device features
Version of the module with following
peripherals:
14 digital inputs
2 pulse outputs
2 relay outputs (1-channel)
2/4 pn or pp switching outputs
2 signal outputs
1 7-segment display
1 status LED
14 status LEDs for inputs
2 status LEDs for relay outputs
6 status LEDs for outputs
Properties of the module:
• 14 safe inputs, OSSD support
• Cross-circuit monitoring
• Contact multiplication or contact rating increase by means of external contactors in
conjunction with integrated monitoring possible
• Comprehensive diagnostic functions integrated in the firmware
• Mounting on DIN rail
