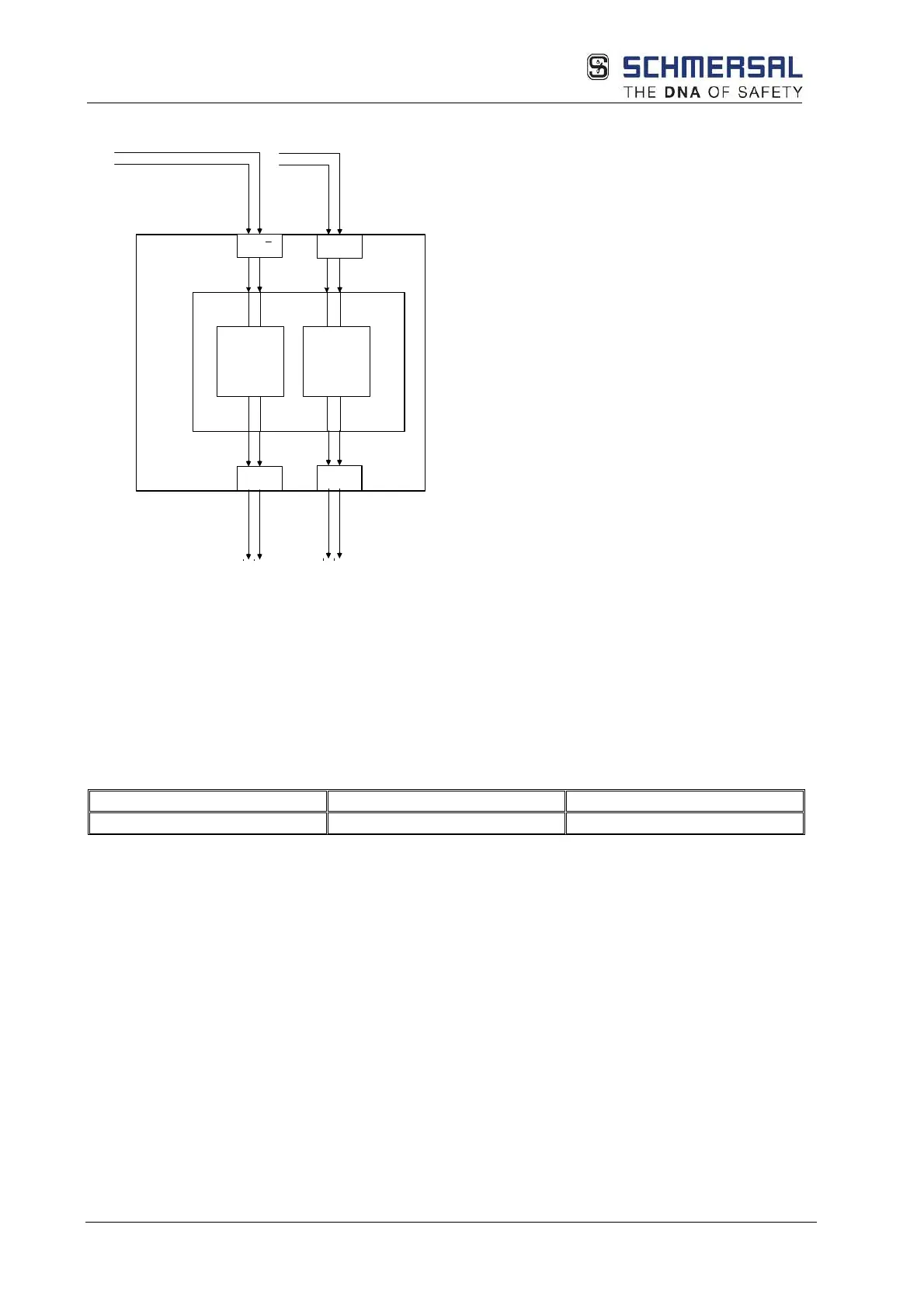

5.9.2 Resolver
1)
PSC1
X15
1 2
UR3
UE3-
X17
3 2
1)
X15
1 2
UR4
UE4-
X19
3 2
2)
X3
Ref_In+_3
Ref-_3
3 7
1)
X4
Ref_In+_4
Ref-_4
3 7
2)
Referenz-
Signal-
generierung
Referenz-
Signal-
generierung
(1)
Only PSC1-E-22 and PSC1-E-24
(2)
Only PSC1-E-24
When using resolvers in master mode, an additional power supply with 24 V DC is required to
generate the reference signal.
The encoder supply must be protected with maximum 2 A.
Supply voltage monitoring:
Nominal voltage
Minimum voltage
Maximum
voltage
24 VDC
20 VDC
29.5 VDC
