schmersal PSC1 - Terminal Assignment PSC1-E-131

Installation manual
HB-37420-810-01-25F-EN PSC1-C-100 Installation manual - V2.2.docx Page 114 of 201
Version: 25F

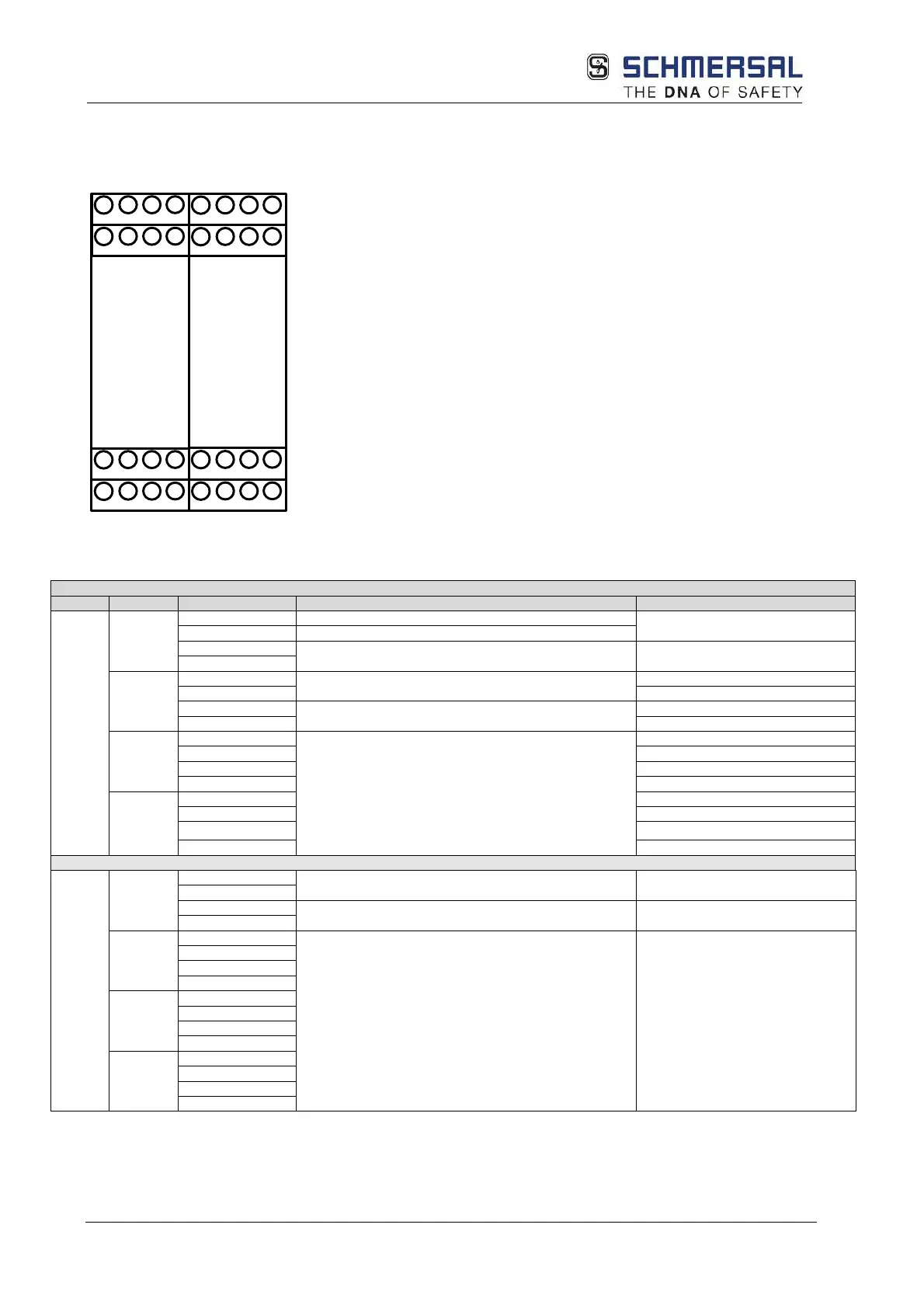

5.7.6 Terminal assignment PSC1-E-131
1
1
X11
X12
4
4
1
1
X21
X22
4
4
IQ00 IQ01
Y0 Y1
IQ07
IQ08 IQ09
IQ02 IQ03
IQ04 IQ05
IO
IQ06
A1.1 A1.2 A2.1 A2.2
1
1
X13
X14
4
4
I00 I01
I02 I03
NC NC
T0 T1
I09
I10 I11
I04 I05
I06 I07
CPU
I08
1
1
X23
X24
4
4
Terminal assignment
Unit
Terminal
Pin
Description
Note
IO
X11
1
–
A1.1
Device power supply +24V DC
Attention: see: "External 24 VDC
power supply"
2
–
A1.2
Device power supply +24V DC
3
–
A2.1
Device power supply 0V DC
4
–
A2.2
X12
1
–
IQ 00
Safe digital inputs, outputs pp switching
2
–
IQ 01
3
–
Y0
Signal outputs
4
–
Y1
X21
1
–
IQ 02
Safe digital inputs, outputs pp switching
2
–
IQ 03
3
–
IQ 04
4
–
IQ 05
X22
1
–
IQ 06
2
–
IQ 07
3 – IQ 08
4
–
IQ 09
CPU
X13
1
–
NC
No function
2
–
NC
3
–
T0
Pulse outputs
4
–
T1
X14
1
–
I 00
Safe digital inputs
2
–
I 01
3
–
I 02
4
–
I 03
X23
1
–
I 04
2
–
I 05
3
–
I 06
4
–
I 07
X24
1
–
I 08
2
–
I 09
3
–
I 10
4
–
I 11
