5.4 Mounting the modules
The modules are mounted on standard C rails using a snap-action catch
5.4.1 5.4.1 Mounting on C rail

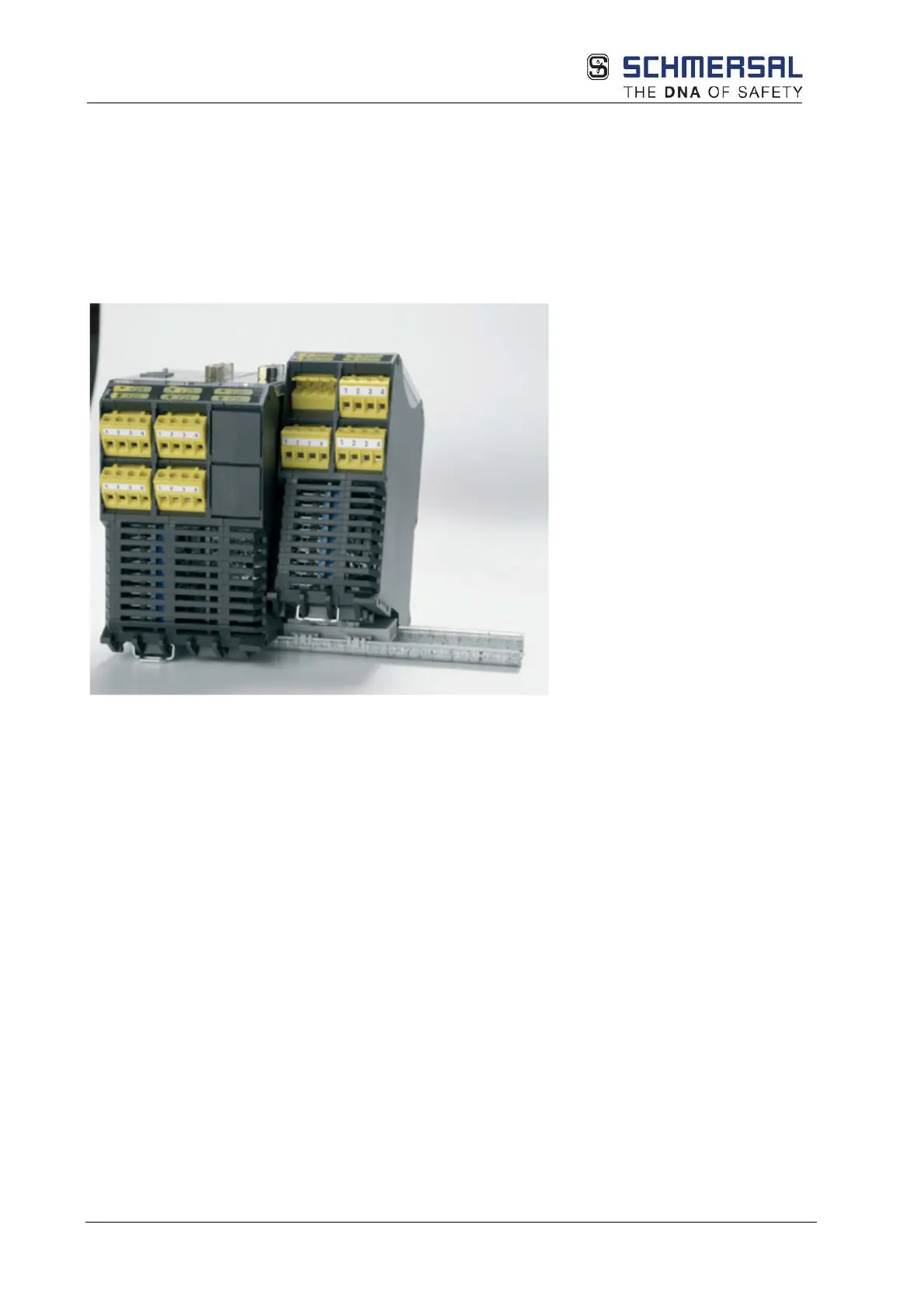

The devices are fitted to the rail from above at an angle and snapped downward.
They are removed using a screwdriver that is inserted in the slot on the catch protruding from
the bottom of the device and then moved upward.
