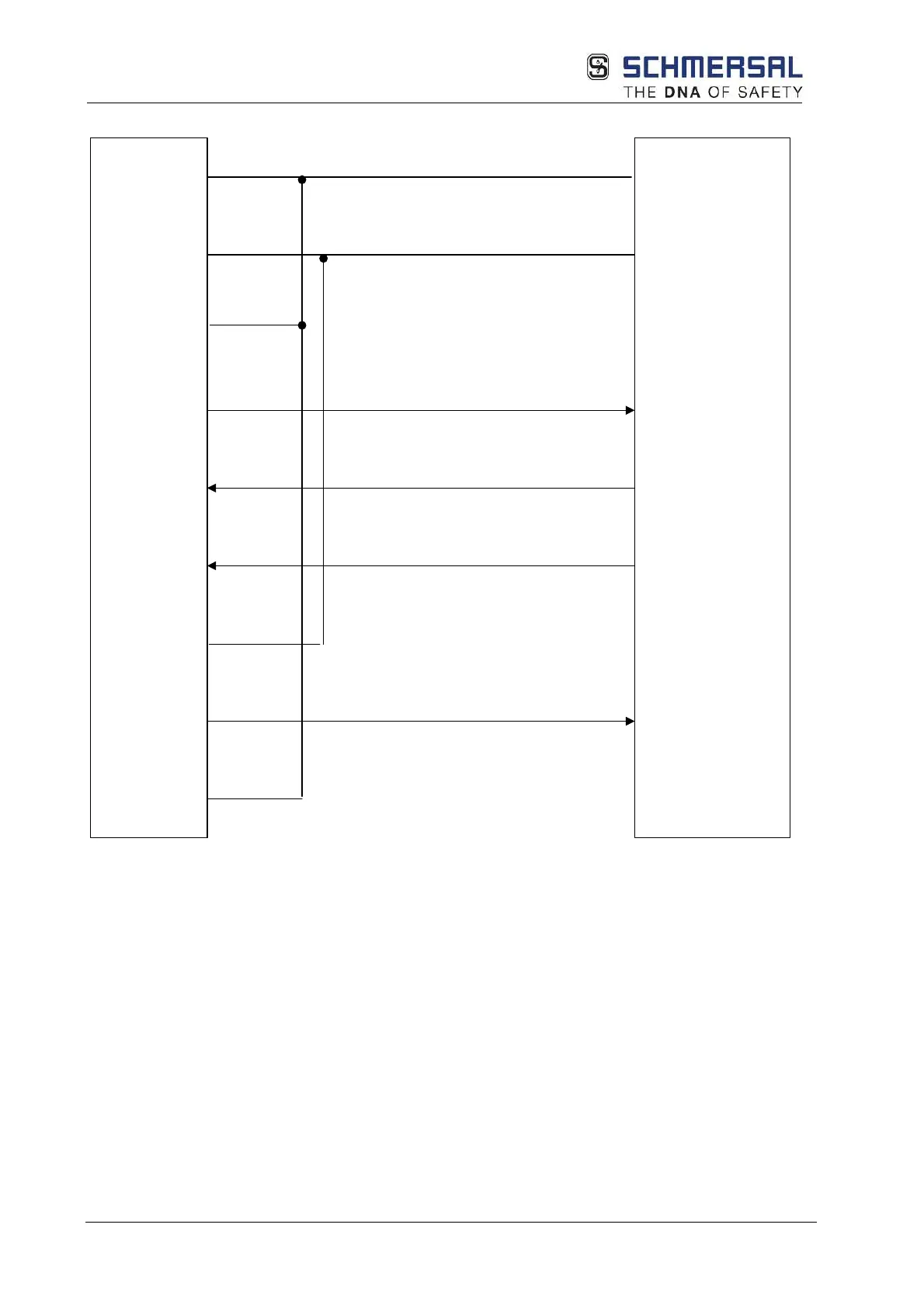

5.11.3.5 Connection of resolver as master
Sub-D-
Stecker
(9 polig)
SMX
Resolver
(Master-Betrieb)
Reference Out +
COS -
SIN +
SIN -
COS +
Monitor Reference Voltage
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Reference Out -
Reference In +
Reference In -
With this type of connection, the clock signals pass from the PSC1 module to the absolute
encoder and the data from the encoder to the PSC1.
