Installation manual
HB-37420-810-01-25F-EN PSC1-C-100 Installation manual - V2.2.docx Page 99 of 201
Version: 25F
5.4.2 Mounting on backplane bus

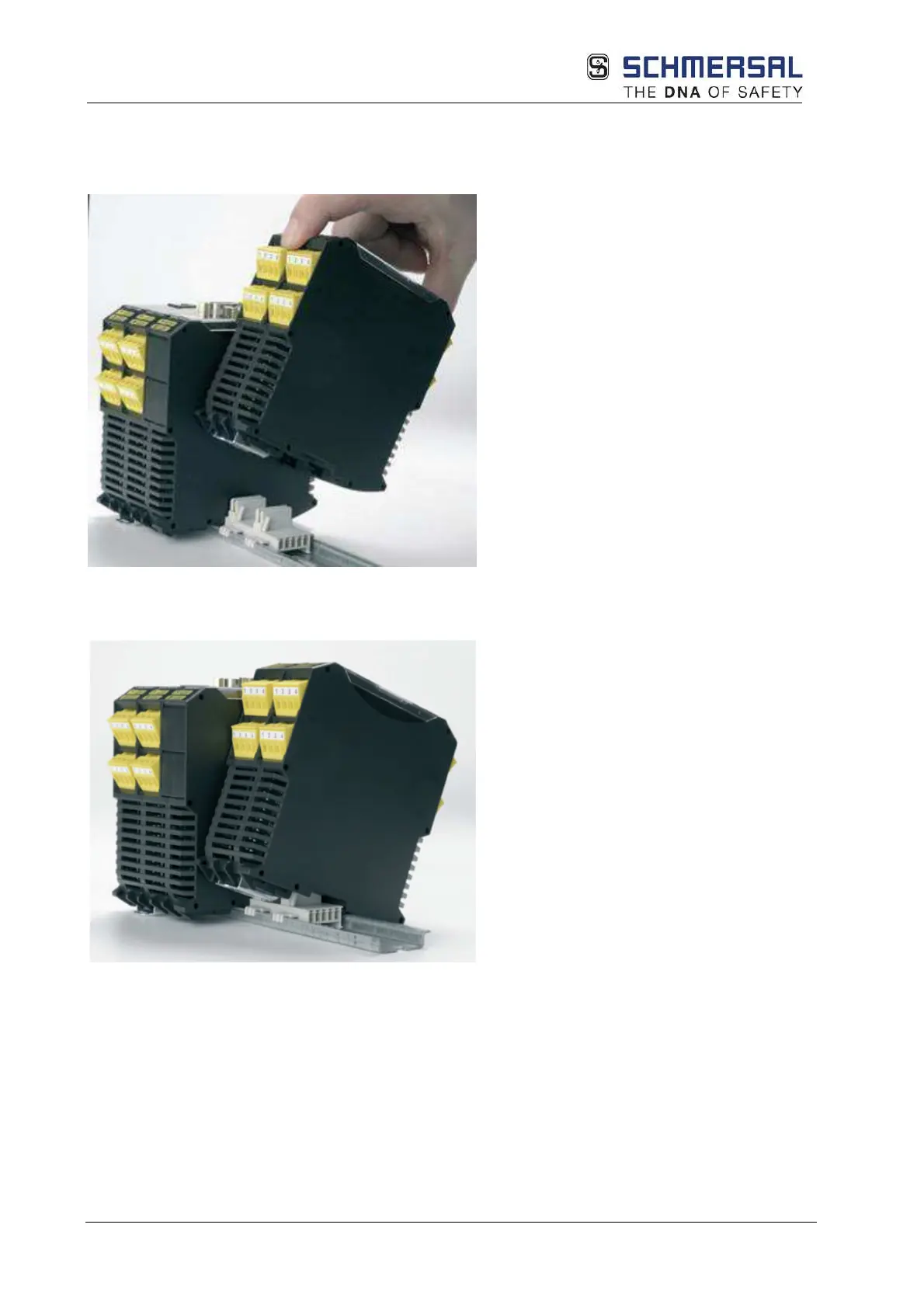

The device can be installed after mounting the backplane bus. For this purpose the module is
fitted to the connector at an angle from above and snapped to the C rail
Fit module at an angle from above
Snap down onto the C rail
