4.3 Safety-related characteristic data and circuitry for the outputs
The PSC1 modules have safe outputs of a different type. In the circuitry the related
characteristic as per the description below is to be taken into account.

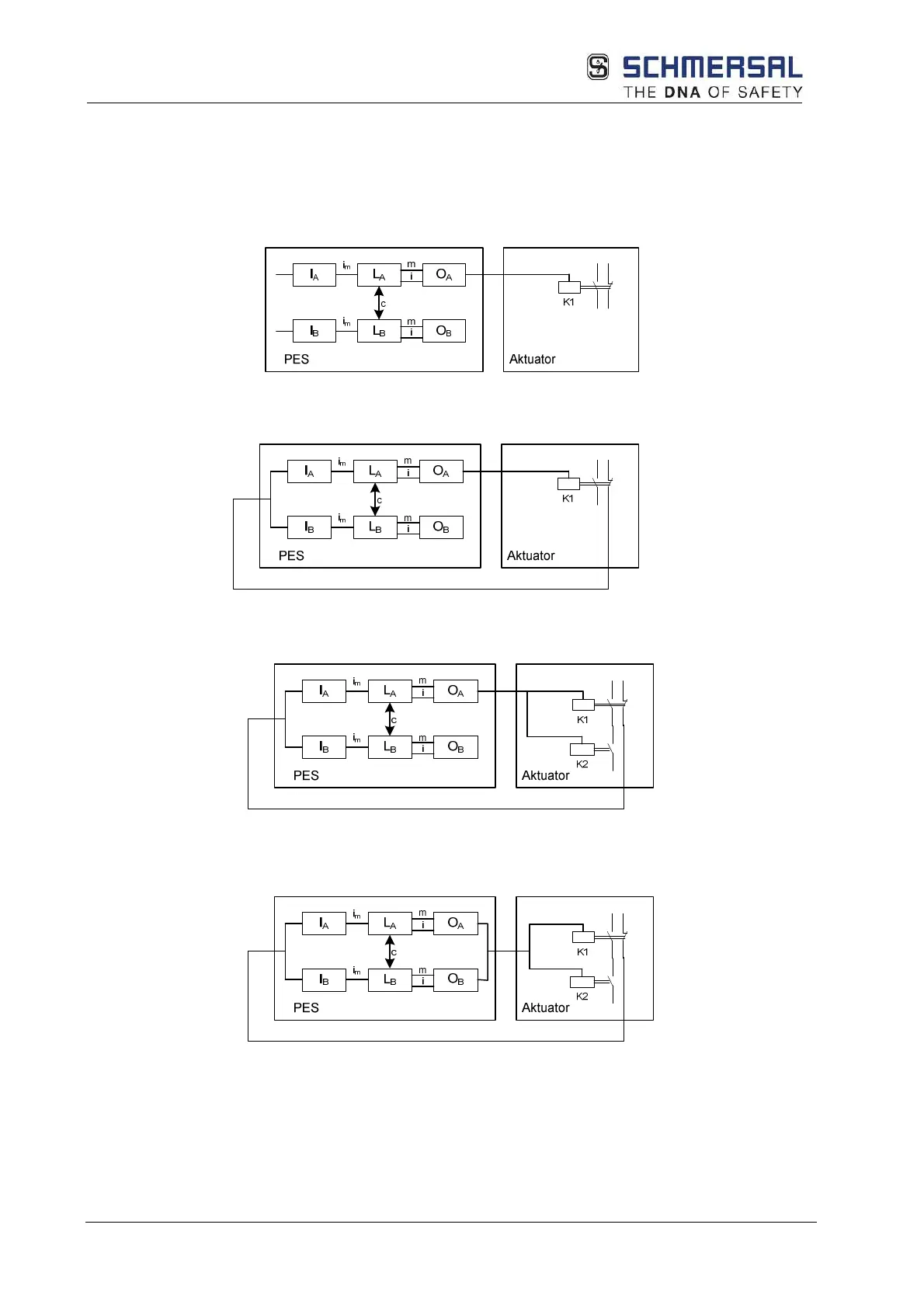

4.3.1 Characteristics of the output elements
Single-channel output PSC1 and single-channel actuator without diagnostics
Single-channel output PSC1 and single-channel actuator with diagnostics
Single-channel output PSC1 (Q 4/5, Q0/2_P, Q1/3_N) and dual-channel actuator
with at least single-channel diagnostics
Single-channel output PSC1 with internal dual-channel processing (IQQx)
and dual-channel actuator with at least single-channel diagnostics
