5.11.3 Connection variants

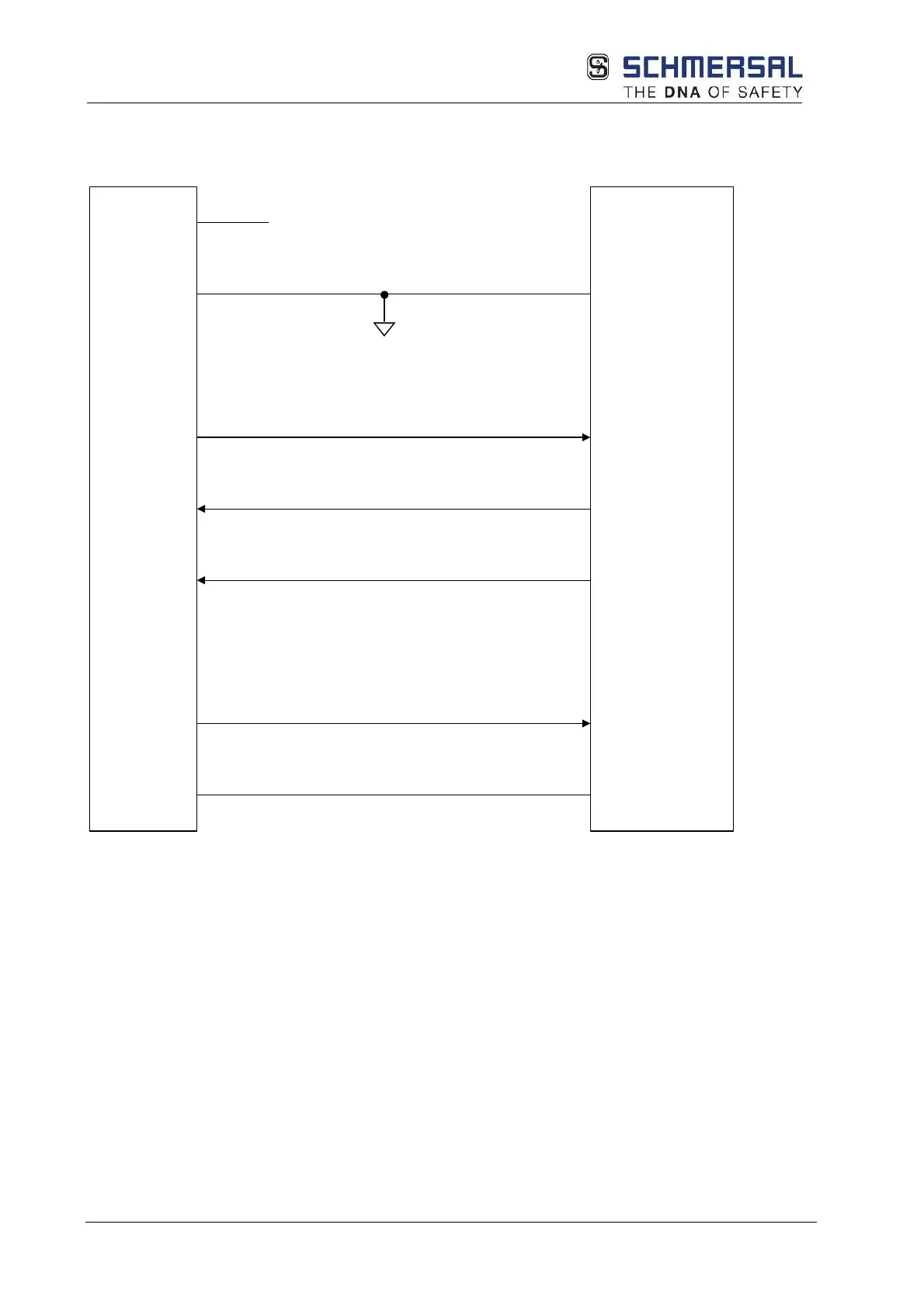

5.11.3.1 Connection of an absolute encoder as master
Sub-D-
Stecker
(9 polig)
SMX
Absolut-
Encoder
(Master-Betrieb)
n.c.
n.c.
CLK-
DATA+
DATA-
n.c.
CLK+
Versorgungspannung
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Ground
With this type of connection, the clock signals pass from the PSC1 module to the absolute
encoder and the data from the encoder to the PSC1.
GND for the supply voltage
24 V DC
