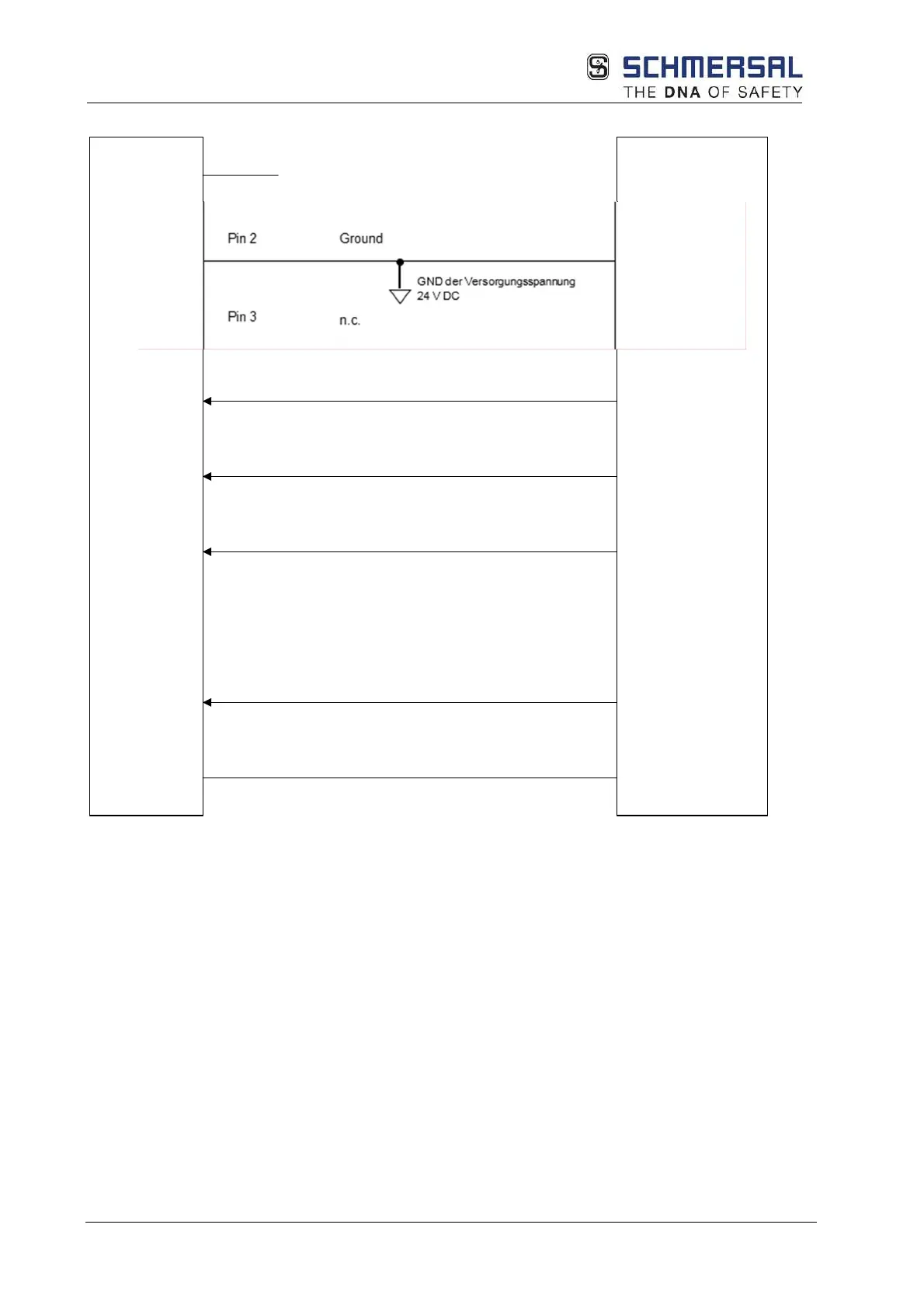

5.11.3.4 Connection of a SIN/COS encoder
Sub-D-
Stecker
(9 polig)
SMX
SIN/COS
Geber
n.c.
Ground
n.c.
COS-
SIN+
SIN-
n.c.
COS+
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Versorgungsspannung
Pins 1, 3 and 7 remain open and are reserved for later expansions.
