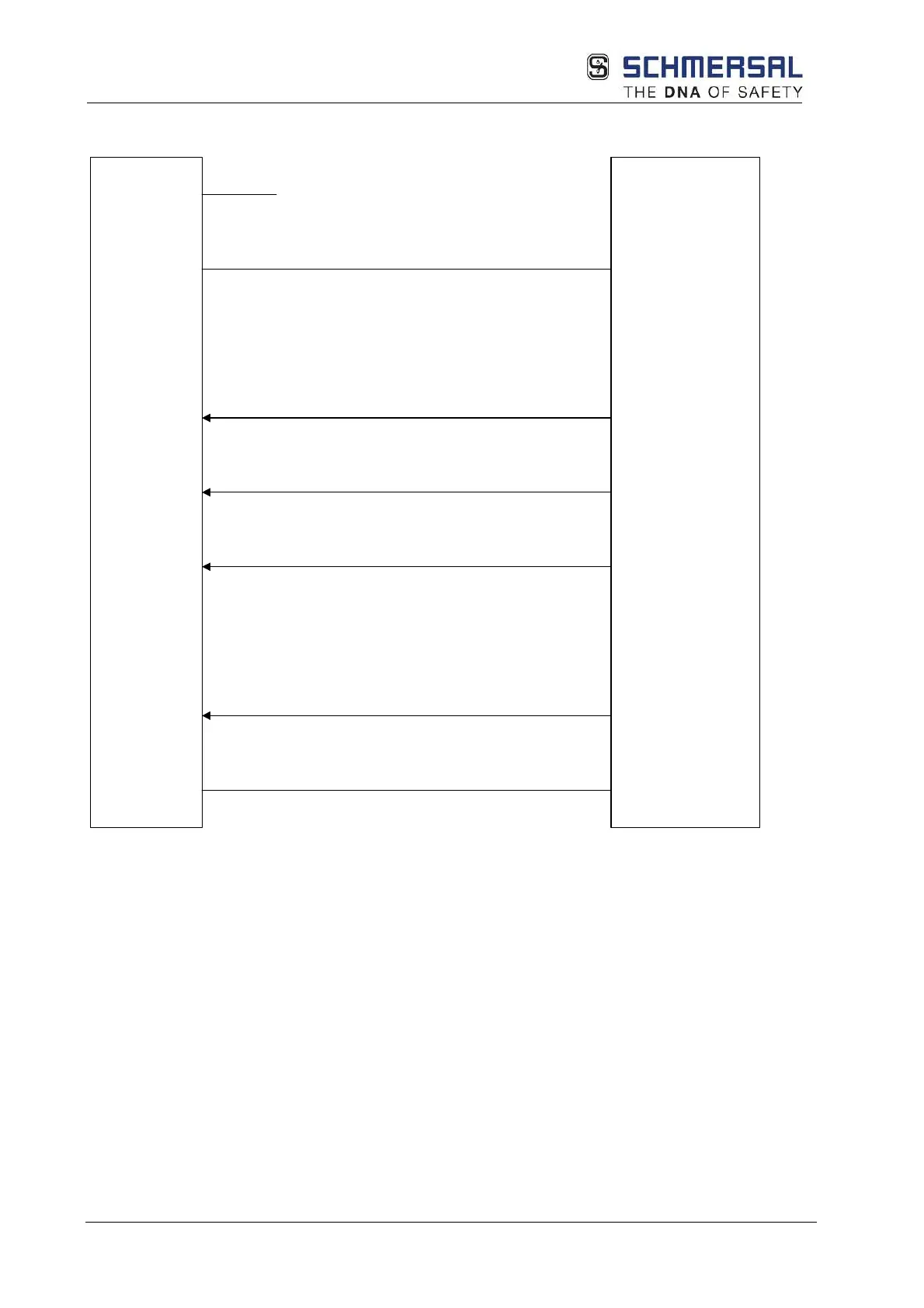

5.11.3.3 Connection of an incremental encoder with TTL signal level
Pins 1, 3 and 7 remain open and are reserved for later expansions.
Sub-D-
Stecker
(9 polig)
SMX
Inkremental
Encoder
n.c.
Ground
n.c.
B-
A+
A-
n.c.
B+
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Versorgungsspannung
