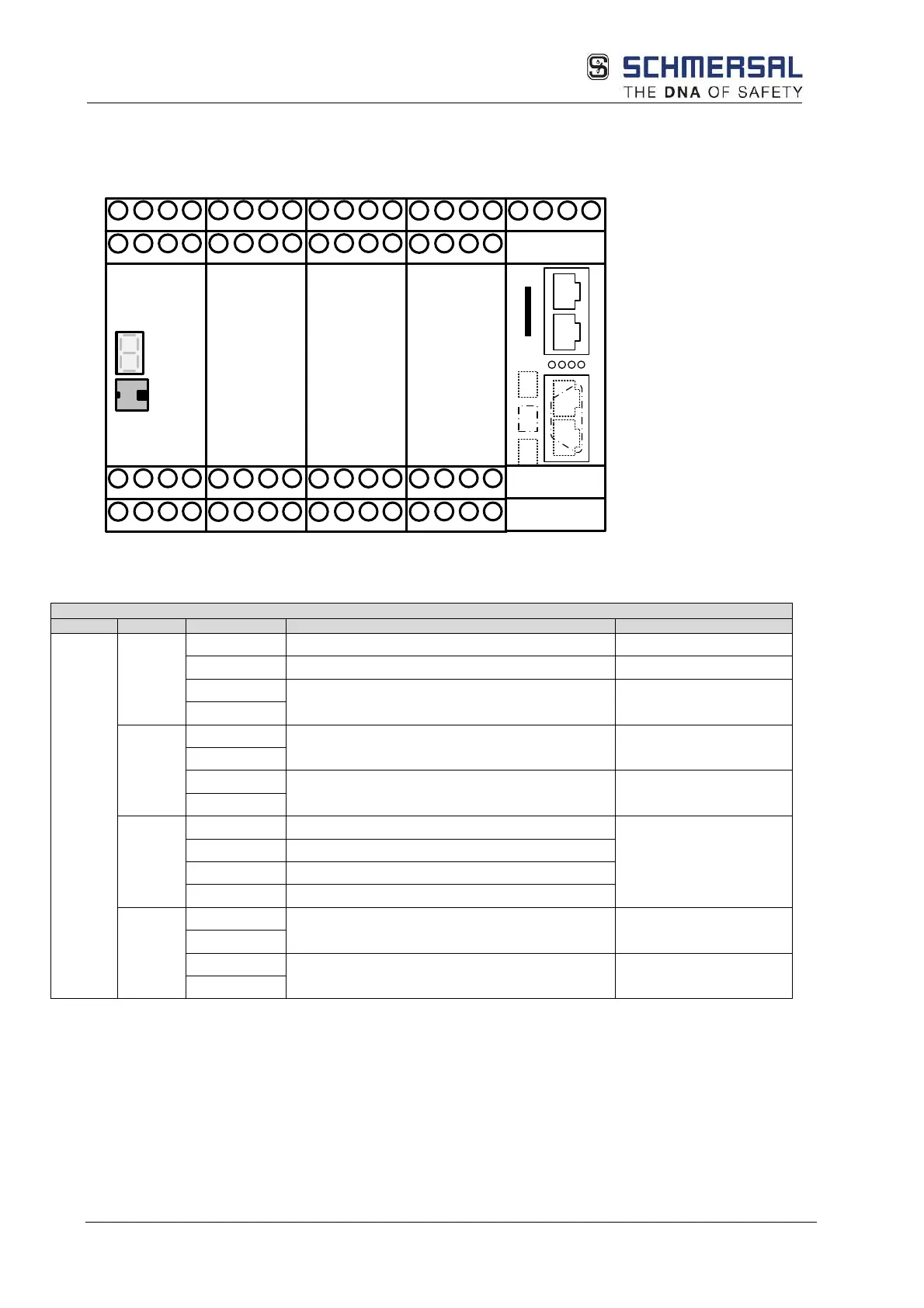

5.7.1 Terminal assignment PSC1-C-100 (-FBx/-MC)
A1.3 A1.4
A2.3 A2.4
A1.5 A1.6 A2.5 A2.6
IQ01 IQ02
Y3 Y4
IQ07
IQ08 IQ09
IQ03 IQ04
IQ05 IQ06
IO
IQ06
IQ11 IQ12
Y5 Y6
IQ17
IQ18 IQ19
IQ13 IQ14
IQ15 IQ16
IO
IQ16
1
1
X41
X42
4
4
1
1
X43
X44
4
4
1
1
X45
X46
4
4
1
1
X47
X48
4
4
1
1
X49
X50
4
4
1
1
X51
X52
4
4
A1.1 A1.2 A2.1 A2.2
I12 I13
Y0 Y1
Q4.1 Q4.2
Q5.1 Q5.2
Q0 Q1
Q2 Q3
REL
1
1
X65
X66
4
4
1
1
X67
X68
4
4
I00 I01
I02 I03
NC NC
T0 T1
I09
I10 I11
I04 I05
I06 I07
CPU
I08
IQ03
IQ04 IQ05
IQ02
IQ00 IQ01
Y2 Y3
IO
IQ13
IQ14 IQ15
IQ12
IQ10 IQ11
Y4 Y5
IO
A1.3 A2.3
1 4
SD
FE
FB 1.1FB 1.2FB 2.1FB 2.2
SDHC
1 4
FB 2
Option
FB1/FB2
X99
Terminal assignment
Unit
Terminal
Pin
Description
Note
REL
X41
1 – A1.1
Device power supply +24 VDC
2 – A1.2
Device power supply +24 VDC outputs
3 – A2.1
Device power supply 0 VDC
4 – A2.2
X42
1 – I 12
Safe digital inputs
2 – I 13
3 – Y0
Signal outputs
4 – Y1
X43
1 – Q0
Output pn switching Q0_PP / pp switching Q0
optionally can be configured
in the parameters via
SafePLC2
2 – Q1 Output pn switching Q1_PN / pp switching Q1
3 – Q2 Output pn switching Q2_PP / pp switching Q2
4 – Q3 Output pn switching Q3_PN / pp switching Q3
X44
1 – Q4.1
Safe relay output
2 – Q4.2
3 – Q5.1
Safe relay output
4 – Q5.2
