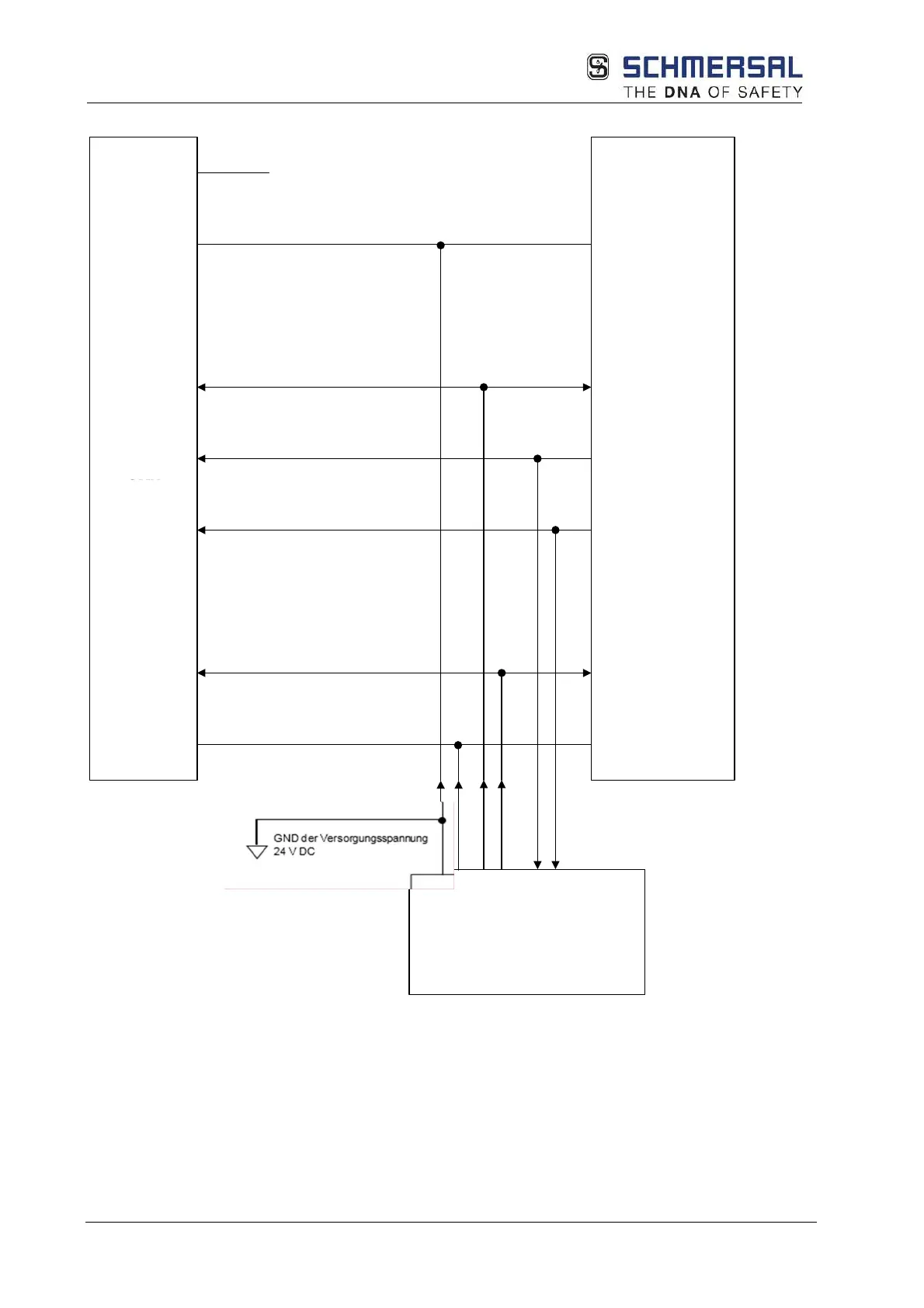

5.11.3.2 Connection of an absolute encoder as slave
Sub-D-
Stecker
(9 polig)
SMX
Absolut-
Encoder
(Slave-Betrieb)
n.c.
Ground
n.c.
CLK-
DATA+
DATA-
n.c.
CLK+
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
externes Abtastsystem
Versorgungsspannung
With this type of connection, the clock signals and the data are read together. In this example
the encoder is not supplied with power from the module.
