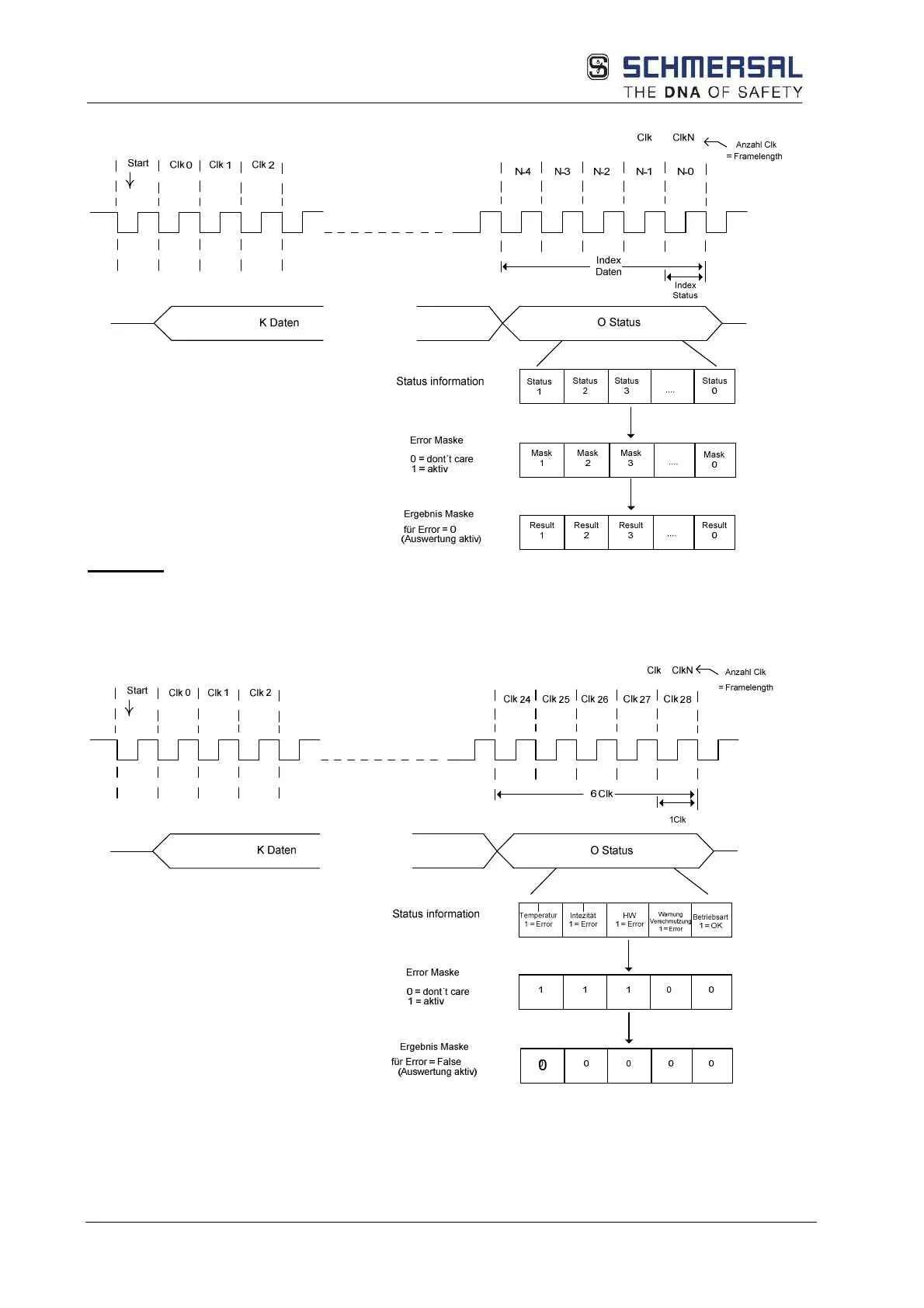

SSI format parameter configuration:
Example:
SSI-Frame length: 28 pulses
Data length: 22 bits
Status: 5 bits, 3 bits error + 2 bits warning/ready for operation
