eSwitch_3oT
NC1 NC2 NC
3
A
0 0 0 0
1 0 0 0
0 1 0 0
1 1 0 0
1 1 1 1

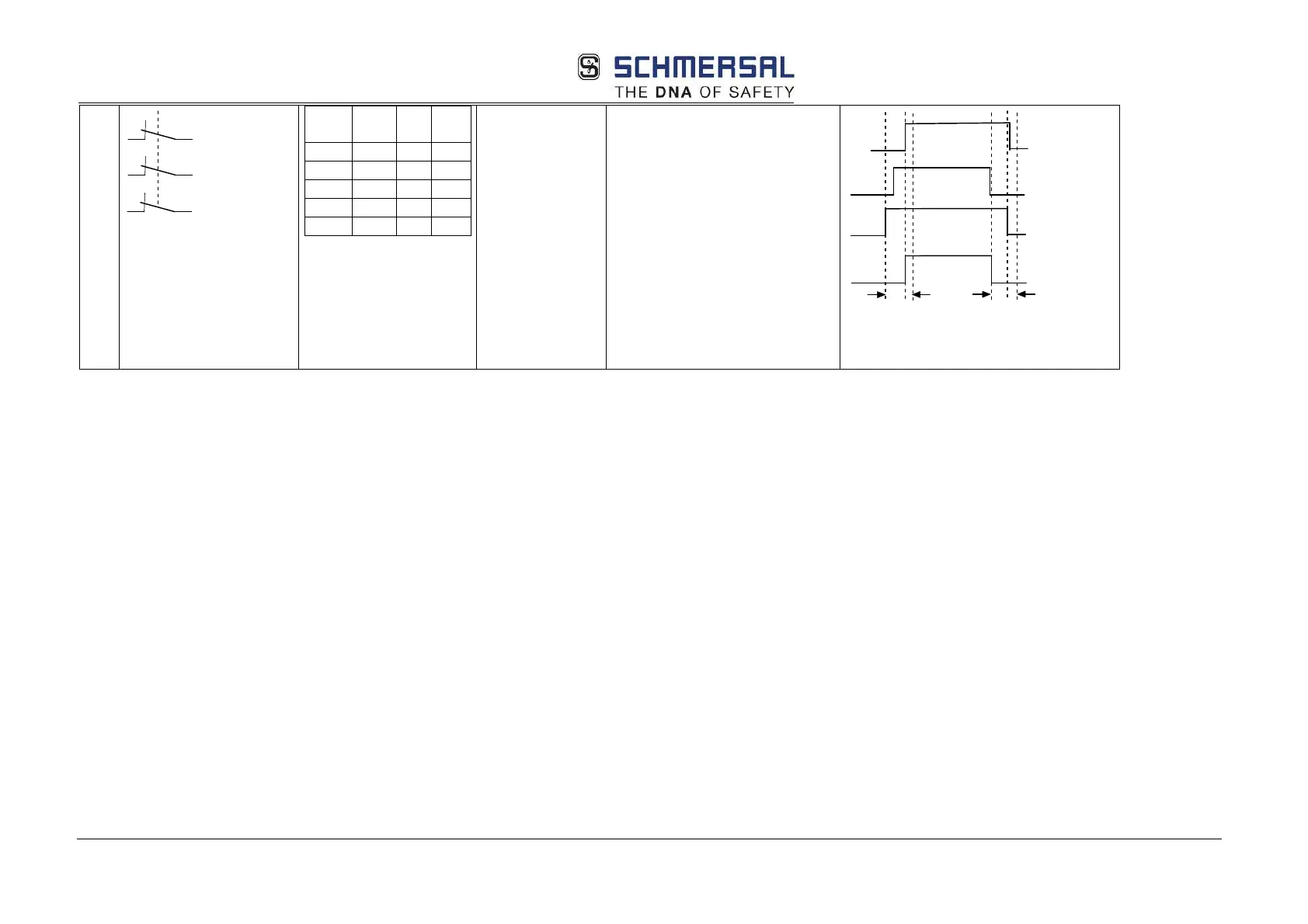

Time monitoring Like 8, however with time
monitoring of state changes.
On signal change on one of the
NC inputs the other inputs must
follow within time t=3 s. If not
change to fault and O=0
Öffner 2
Ausgang
Öffner 1
max. 3 s
max. 3 s
Öffner 3
