Installation manual
HB-37420-810-01-25F-EN PSC1-C-100 Installation manual - V2.2.docx Page 192 of 201
Version: 25F

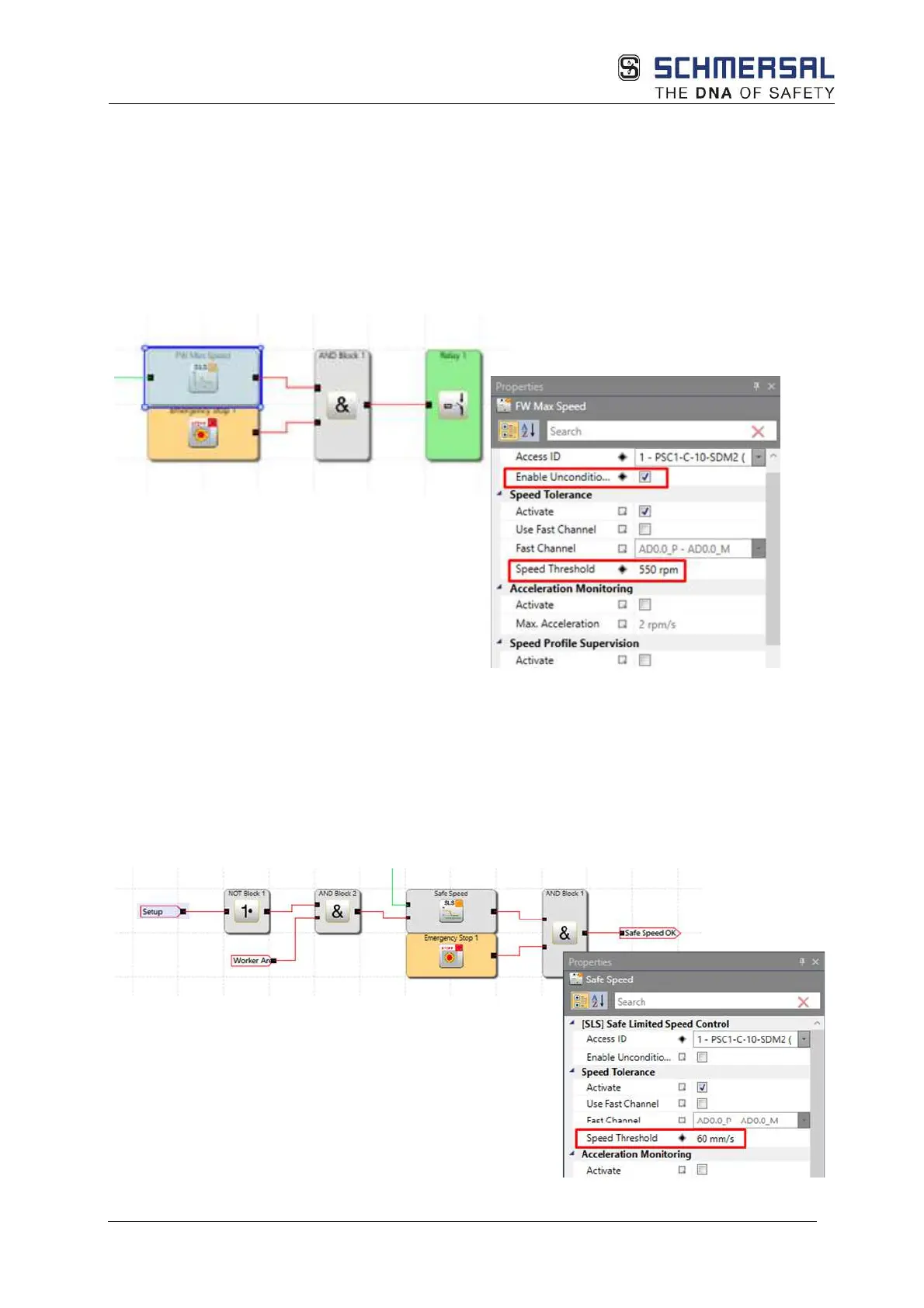

Example:
Safety function:
• Limitation of the max. travel speed of the running gear (FW) to 1.1 VMax
• Monitoring of the maximum speed for < 1.1 VMax
• Monitoring "FW Max Speed" is continuously activated and triggers if a speed of
550 rpm is exceeded.
Safety function:
• Limitation of the max. travel speed of the running gear (FW) in the worker's area
• Monitoring of the maximum speed for < 60 mm/s
• Safe Speed" monitoring is activated when the running gear is in the "WorkerArea",
"Setup" has not been activated and the maximum speed is exceeded.
