Installation
700-0042 R004 2–11

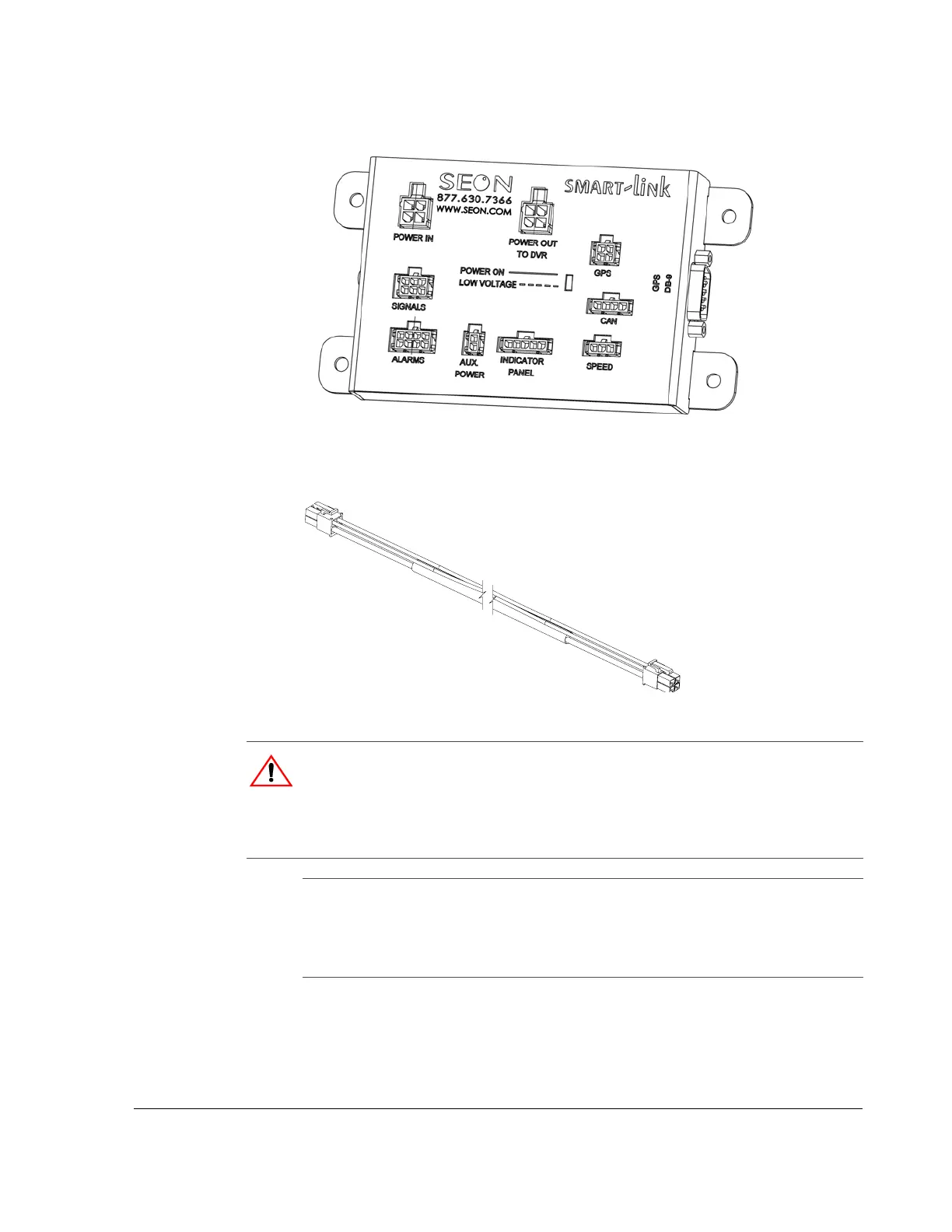

Figure 2-7
Smart-Link module
Figure 2-8
Smart-Link-to-DVR connection harness (EX4 Plus)
CAUTION: Power and ignition harness connection
To ensure proper performance, connect the red and black power wires to points as close to
the battery as possible. Never connect the ground wire (black wire) to the vehicle chassis
by drilling a hole into a panel and using a sheet metal screw. The ground connection will
be corroded very quickly and the performance will be compromised.
Important:
The supplied in-line automotive fuse holders are for protecting the red
battery positive wire and the yellow ignition trigger wire. Butt-splice connectors are
supplied to connect the fuse holders to their respective wires. The battery positive fuse
holder uses the 5 A automotive blade fuse, and the ignition trigger fuse holder uses the 1 A
automotive blade fuse.
