Appendix MultiExact Gas Analyser
A1.5 Configuration transfer
If you are setting up multiple units and you want to use the same configuration settings
in each analyser, you can transfer configuration data from one unit to another, either
via a computer or directly with one another. This way all the user setable
configurations: calibration tolerances and targets; auto validation sequences, mA
ranges and settings, alarm settings etc can be transferred to multiple units. Both units
must have matching options fitted. If they differ, a transfer will not be possible.
1. To activate the transfer configuration
utility hold down the 4th soft key for
5 seconds during the analyser start
up sequence. The screen to the right
will appear:

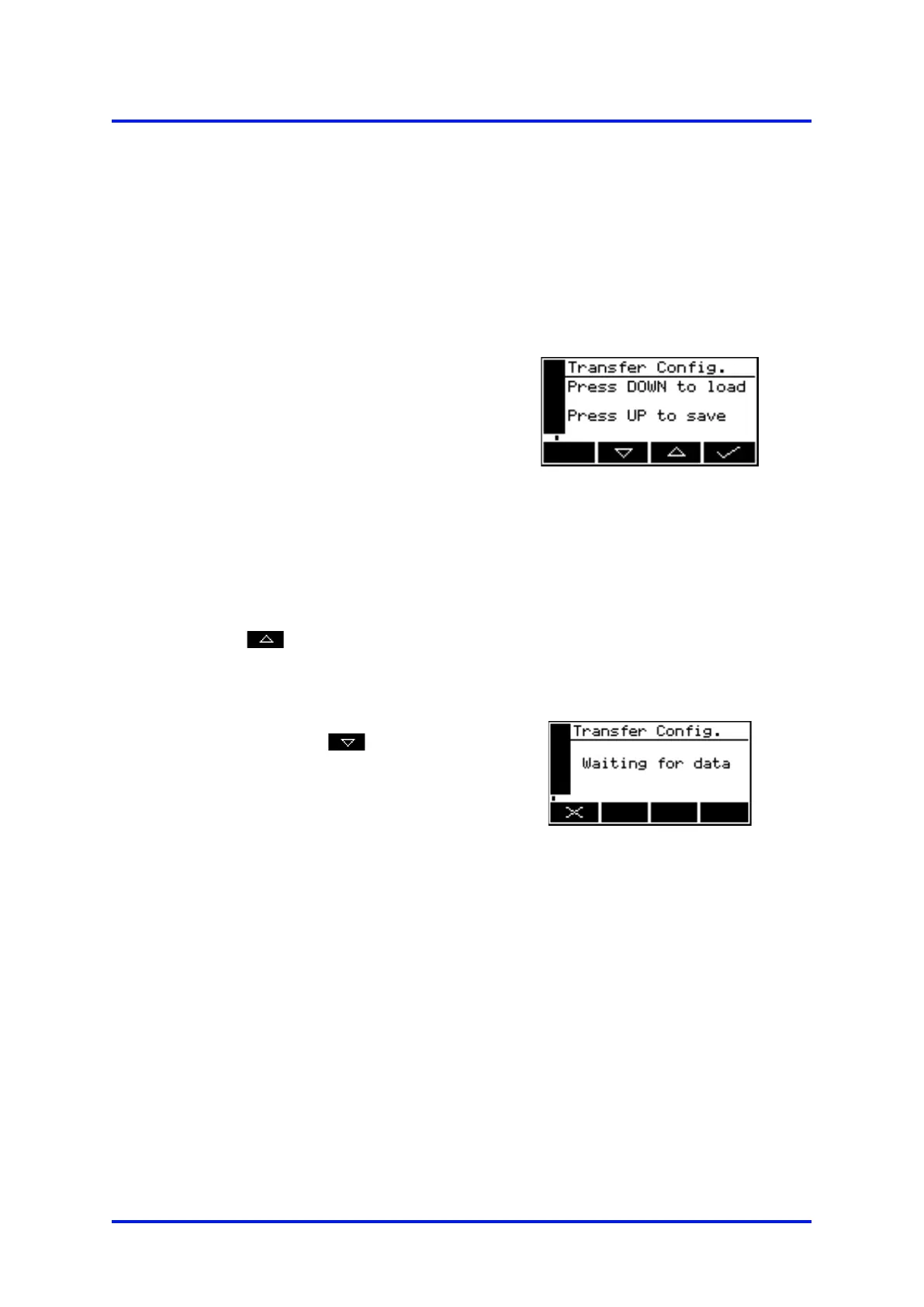

Figure A3 – Transfer configuration
screen
2. Connect a computer to the RS232 serial port and run a terminal emulator
program such as
Windows HyperTerminal. Set the communications
parameters to match the analyser.
3. To save a configuration to a pc, set the terminal to log a text file and then press
the key on the unit. The activity display on the 5400 will freeze briefly
while out putting the file. Once the output stops, close the logged file. This file
can now be used to set other units.
4. To load a configuration file from a
PC, press the key on the unit,
the following screen will appear:
Figure A4 – Transfer configuration
interim screen
100 05410001A / Revision 6
