5 – Installation and set-up MultiExact Gas Analyser
5.5.4 Automatic validation/calibration target and tolerance
1. Select
Set up
Auto val.
2. Use the and soft keys
to highlight the measurement for
which you want to set
validation/calibration, then press the
soft key.

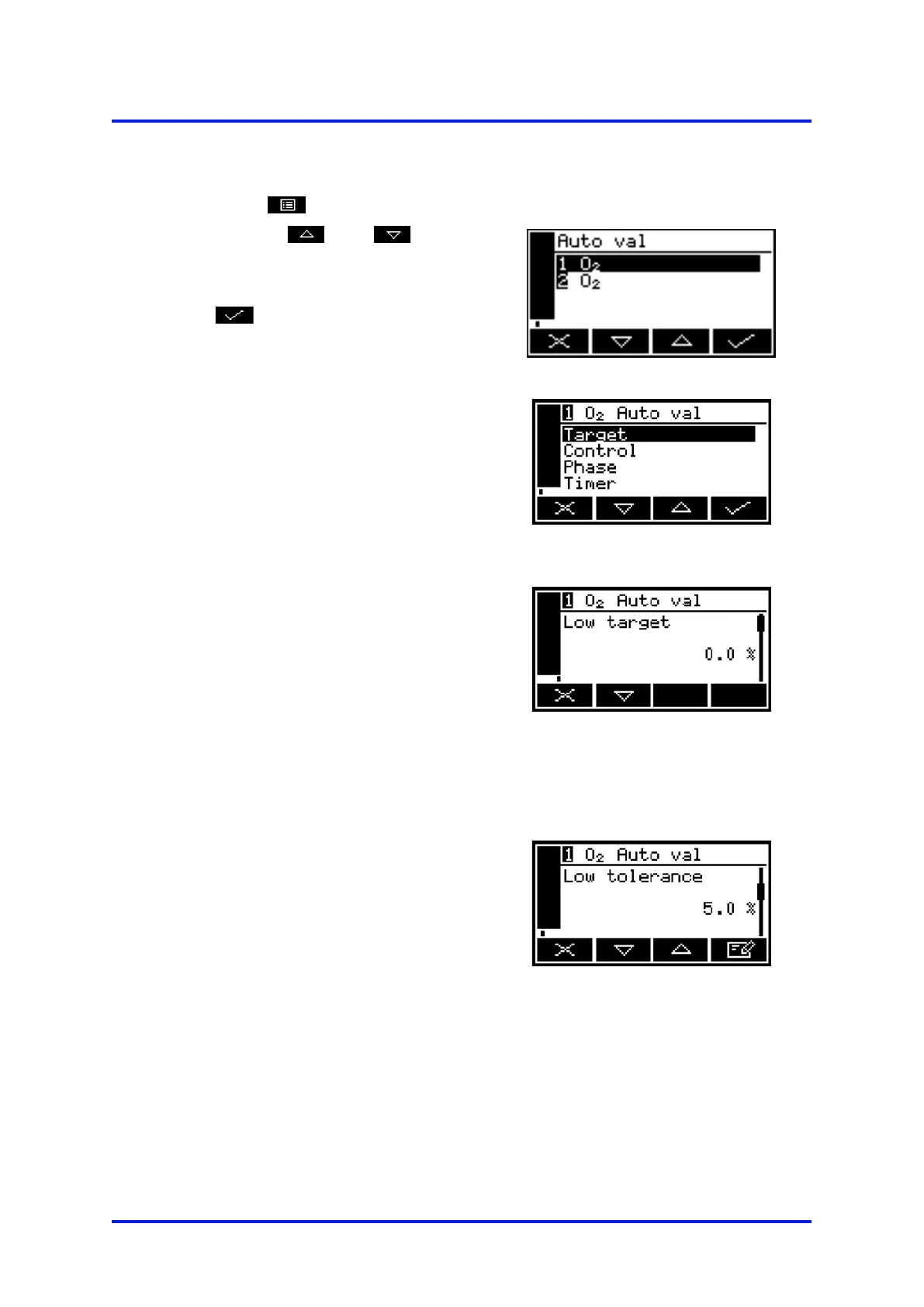

Figure 29 – The auto val/cal screen
3. Select target, the auto val/cal low
target value screen will then be
displayed.
Figure 30 – The auto val/cal
parameters screen
4. Edit the displayed low target value as
described in Section 4.10.
Figure 31 – The auto val/cal
low target value screen
The low target value can only be changed for the O
2
trace, purity and control
measurements (see Section 2.5).
5. Edit the low tolerance value.
Figure 32 – The auto val/cal
low tolerance screen
46 05410001A / Revision 6
