MultiExact Gas Analyser 6 – Calibration
6.2.2 Automatic validation/calibration status indications
During an automatic validation/calibration:
• A 'service in progress' icon ( ) is shown on the measurement screen, if displayed.
• The calibration screen, if displayed, (pre-warning and inerting phase off) will be
updated to show the current phase and the gas being used, as shown in Figure 78
to Figure 80.
If the automatic validation/calibration fails:
• A 'maintenance required' icon (
) is shown on the measurement screen,
if displayed.
• A "failed" message will be shown on the calibration
screen, if displayed, for
example: see Figure 81.

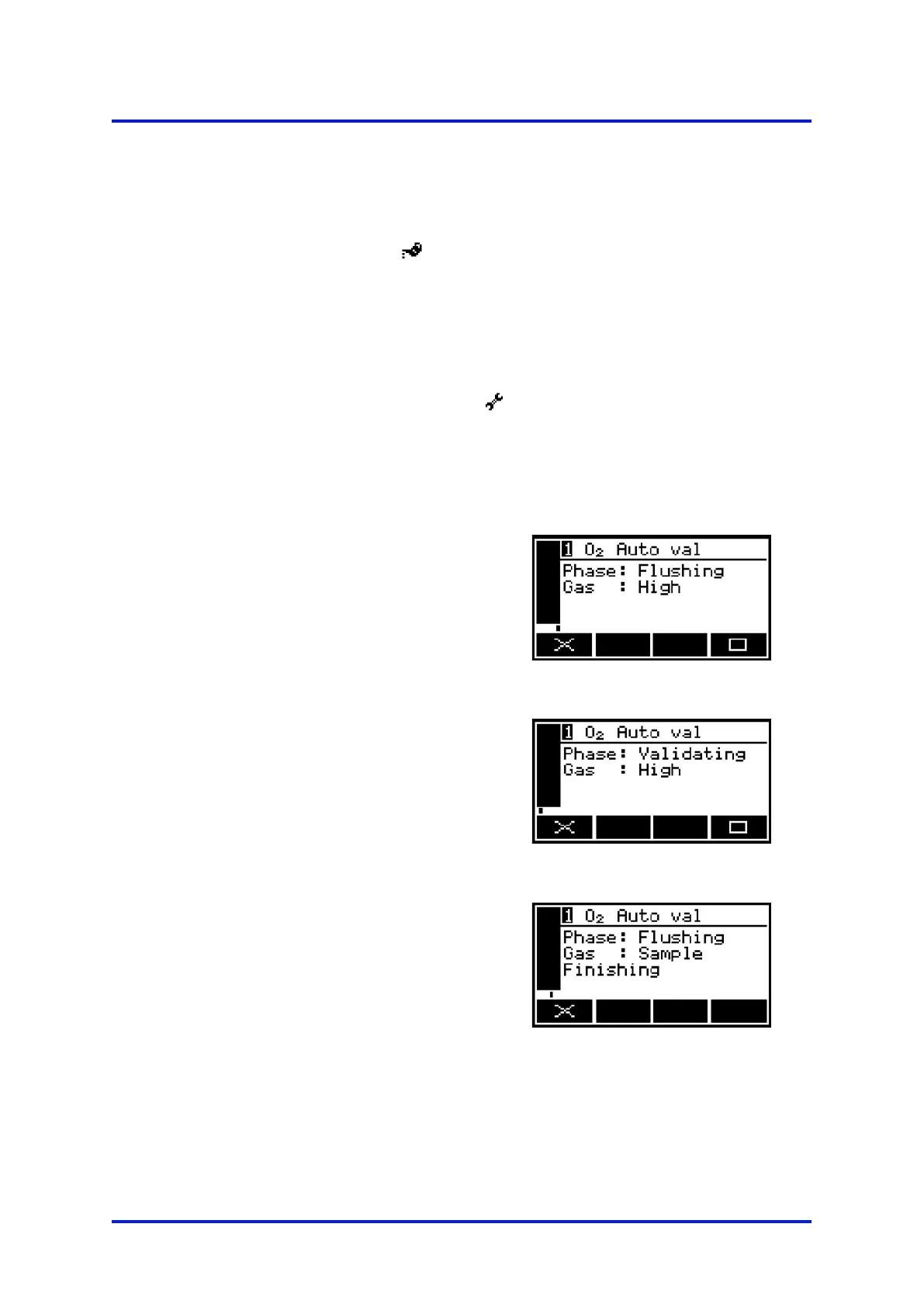

Figure 78 – The auto val/cal
status screen (flushing phase)
Figure 79 – The auto val/cal
status screen (validating phase)
Figure 80 – The auto val/cal
status screen (finishing phase)
05410001A / Revision 6 69
