5 – Installation and set-up MultiExact Gas Analyser
5.6 Calibration linking
Calibration linking only applies to analysers configured for 2 measurements.
If calibration is not link
ed, the alarms for each transducer will operate in
accordance with their corresponding 'During Calibration' options during
calibration.
Calibration linking is useful when you route a single gas stream into both inlets of the
dual measurement analyser.
If you link calibration, then:
• When you calibrate transducer 1, the alarms (Section 5.11.1) and analogue output
(Section 5.7.2) for transducer 2 will operate in accordance with the transducer 2
'During Calibration' option during calibration.
• When you calibrate transducer 2, the alarms and analogue output for transducer 1
will operate in accordance with the transducer 1 'During Calibration' option during
calibration.
1. Select ➞ Set up ➞ Calibration.
2. Select 'Yes' or 'No' for calibration
linking.

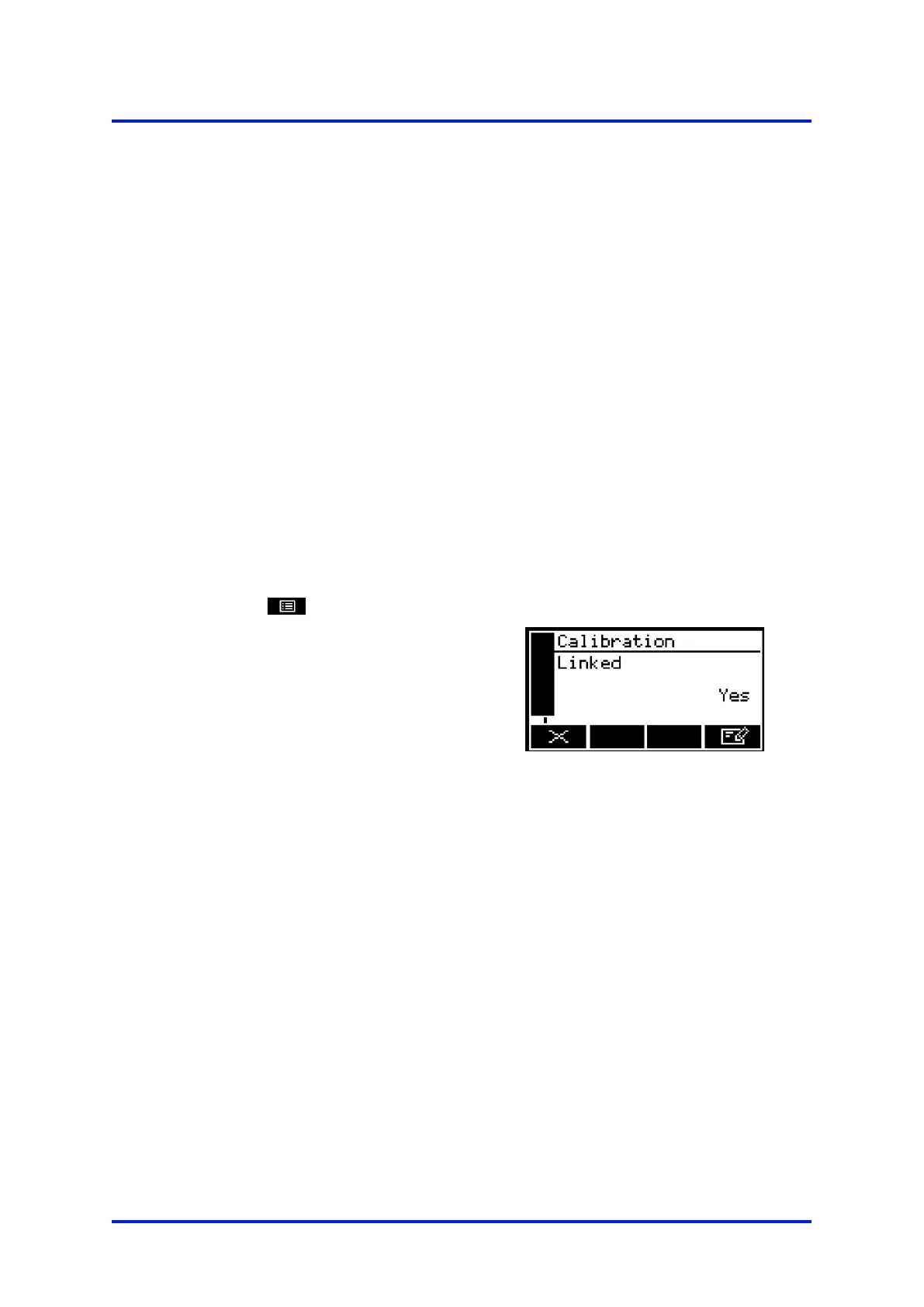

Figure 47 – The Calibration linking
screen
50 05410001A / Revision 6
