Servomex SERVOPRO MultiExact User Manual

MultiExact Gas Analyser 4 – Analyser user interface
(A) 1 measurement screen:
(B) 2 measurement screen:
* Only shown when unit is installed with O
2
purity measurement and pressure compensation is
on: see Section 7.2.
#
Only shown when unit is installed with flow alarm option.

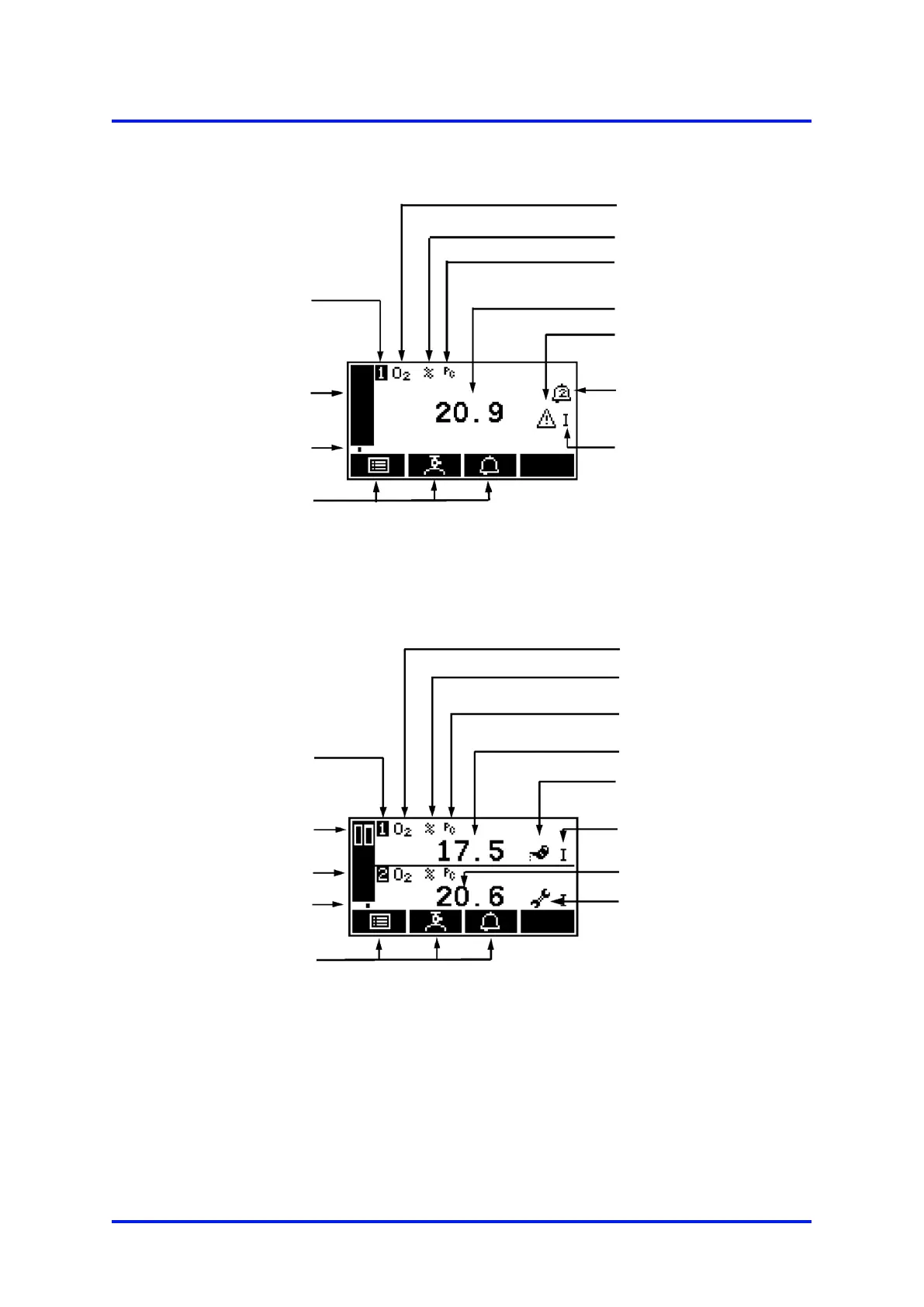

Figure 3 – The measurement screen
Gas being measured
Measurement units
Pressure compensation
indicator
*
Current measurement
Alarm icon
(see
Section 5.11.1)
mA Range
(see
Section 5.7.1)
Fault icon
(see Section 9)
Soft key legends
Status icon bar
(see Section 4.4
)
Transducer number
("1" always shown)
Software health indicator
Gases being measured
Measurement units
Pressure compensation
indicator *
Current measurement 1
Service in progress icon
(see
Section 6.2.2)
mA Ranges
(see Section 5.7.1)
Current measurement 2
Maintenance required icon
(
see Section 6.2.2)
Transducer numbers
Flow icon
#
(see Section 7.3)
Status icon bar
(see Section 4.4)
Software health indicator
Soft key legends
05410001A / Revision 6 13
