5 – Installation and set-up MultiExact Gas Analyser
4. Fit the analyser (3) in the panel (5) and use nuts and bolts through the fixing
holes (7) in the panel and the mounting brackets (1, 4) to secure the analyser in
place.
Key
Description
Key
Description
1. Left-hand mounting bracket
2. Base support bracket (not
supplied)
3. Analyser
4. Right-hand mounting bracket
5. Panel
6. Cut-out (447 mm x 134 mm)
7. Fixing holes: 7 mm dia (4 off)

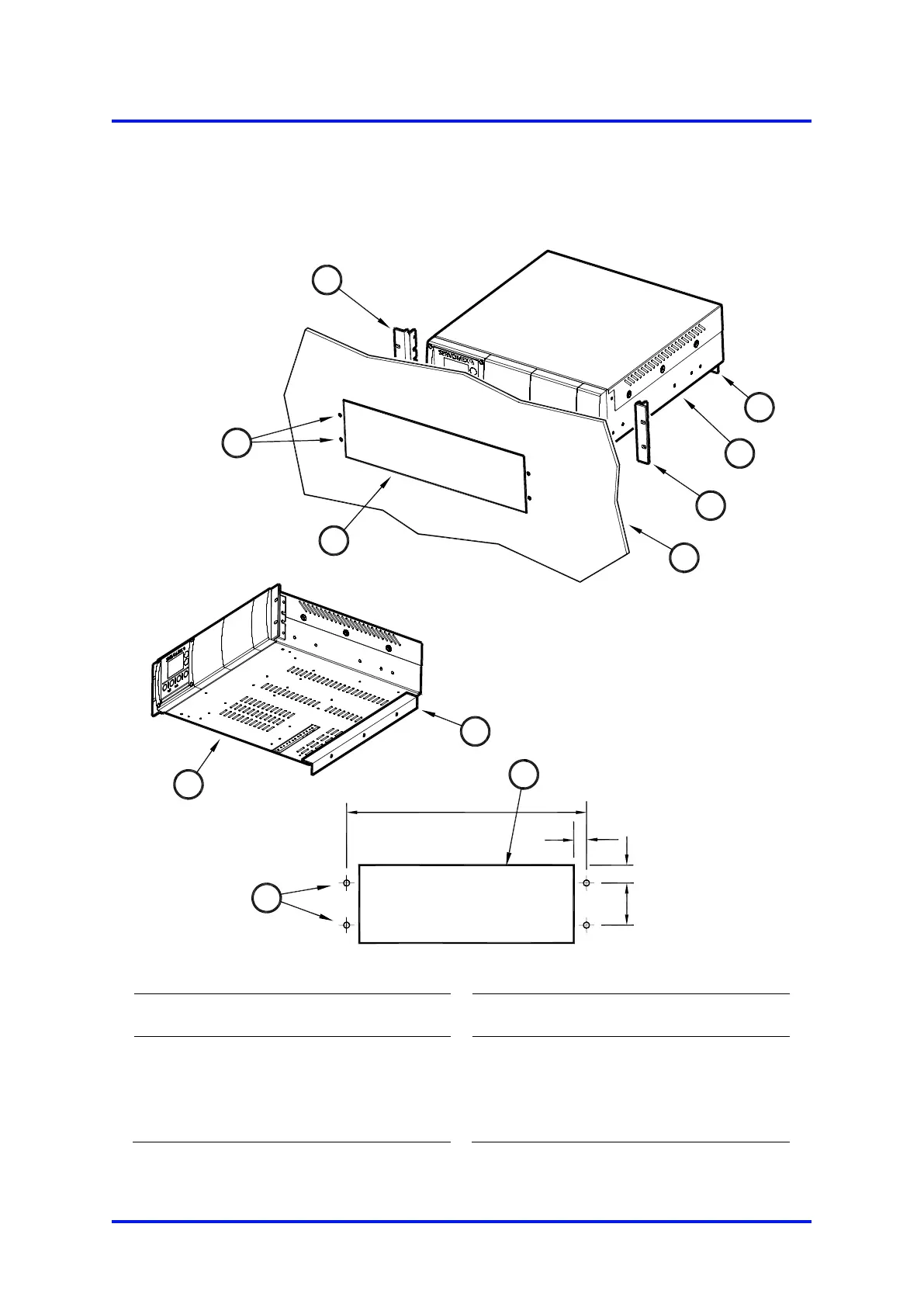

Figure 9 – Install the analyser in a panel
DA/1146/A
465
57
1
2
3
4
5
6
7
2
3
6
7
38.5
9
22 05410001A / Revision 6
