MultiExact Gas Analyser 5 – Installation and set-up

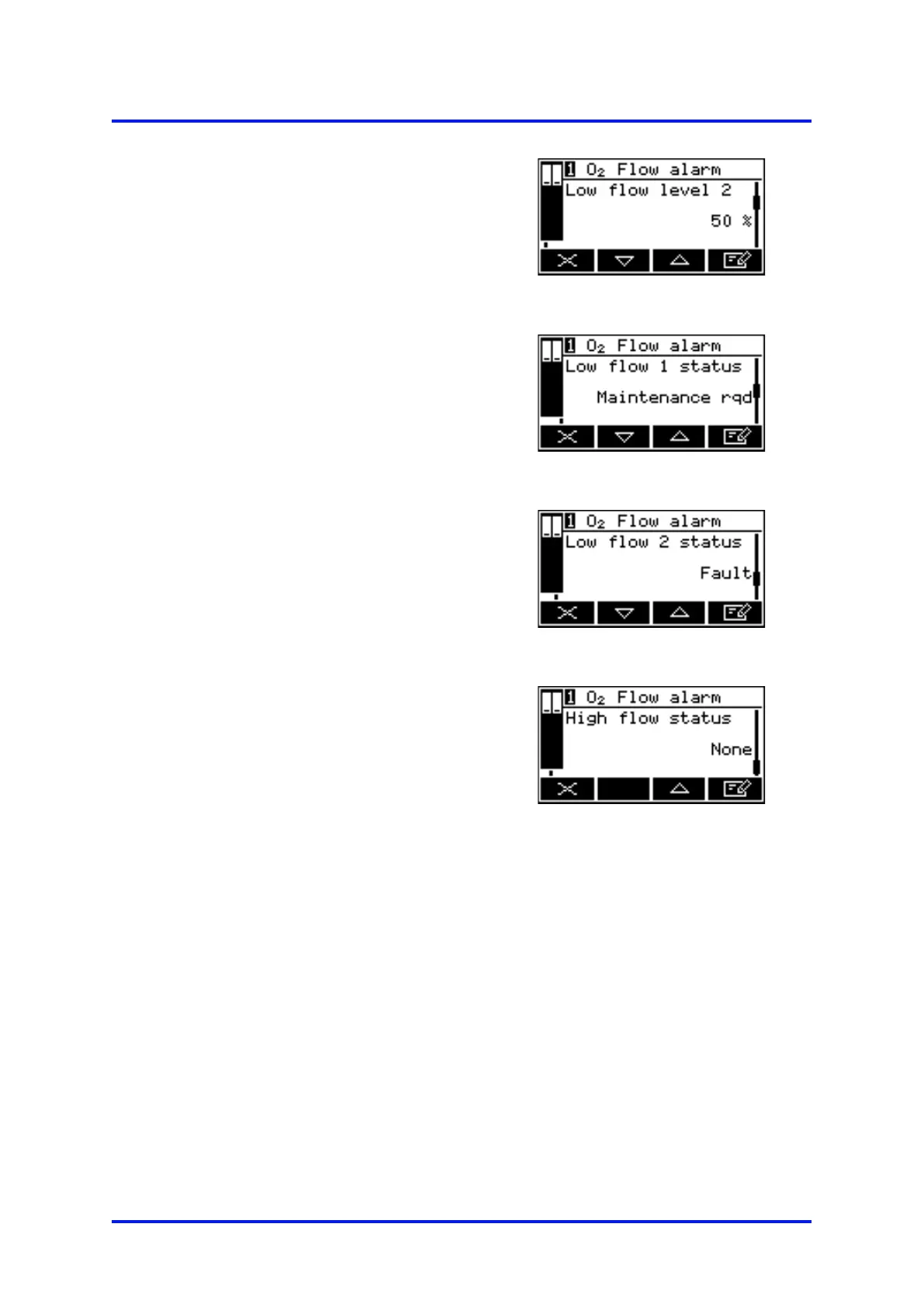

3. Scroll to the low flow level 2 screen
and set the activation level for low
flow alarm 2.
Figure 69 – The low flow
level 2 screen
4. Scroll to the low flow 1 status screen
and set the status type to be reported
on low flow alarm 1 activation.
Figure 70 – The low flow 1
status screen
5. Scroll to the low flow 2 status screen
and set the status type to be reported
on low flow alarm 2 activation.
Figure 71 – The low flow 2
status screen
6. Scroll to the high flow status screen
and set the status type to be reported
on the high flow alarm activation (flow
greater than 130%).
Figure 72 – The high flow
status screen
05410001A / Revision 6 65
