Checkweighing Mode
9

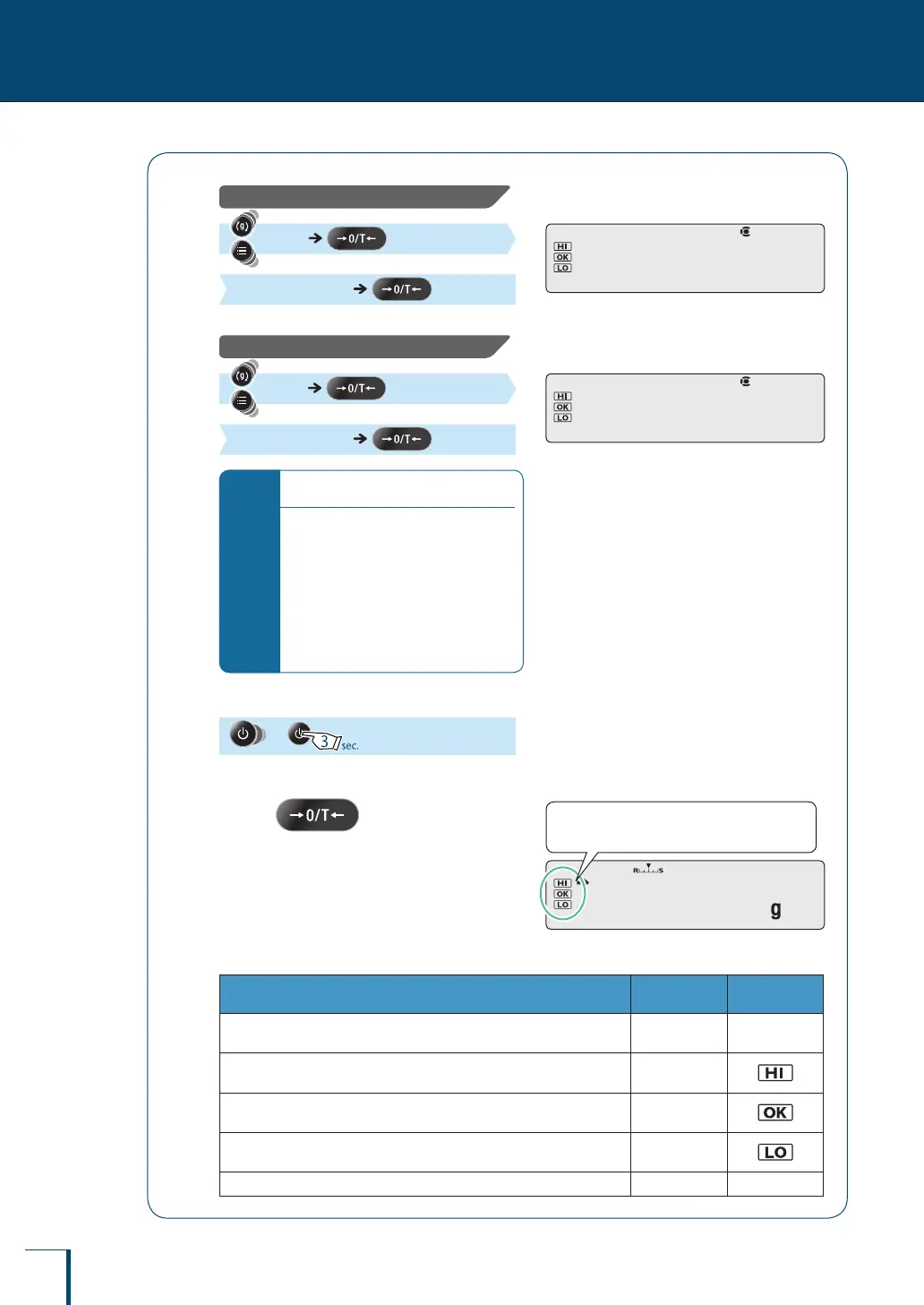

COMPARATOR FUNCTION
To enter the checkweighing range lower limit value:
[UND.RNG] (Enter the checkweighing
range lower limit value.) [SET]
To enter the checkweighing range upper limit value:
[OVR.RNG] (Enter the checkweighing
range upper limit value.) [SET]
*
Be sure to double check all values.
If the entered values don't go together
logically, for example if a value lower
than the lower limit value is entered as
the upper limit value, the values will be
automatically corrected and other values
will be set.
Particular care is required when entering
new values where settings have been
made before (updating).
4
Return to the weighing mode.
or
5
Place the container on the pan and
press
The balance will be tared
6
Insert the sample (item to be
measured) into the container.
Pass or fail determination is based on the
following conditions.
Condition Result
Comparator
Symbol
Upper limit value of the checkweighing range
< indication
Out of Range All off
Upper limit value of the pass range
< indication ≤ upper limit value of the checkweighing range
HI
Lower limit value of the pass range
≤ indication ≤ upper limit value of the pass range
PASS
Lower limit value of the checkweighing range
≤ indication < lower limit value of the pass range
LO
indication < lower limit value of the checkweighing range Out of Range All off
!U!N!D.R!N!G
!O!V!R.R!N!G
1!0!5.0!0!0!0
The comparator symbols light in accordance
with the pass or fail determination.
