Menu Map
The menu map represents the organization of the menu options graphically to make it easy to
understand.
It is useful for quickly accessing the menu option you want to use.
For more on the menu map, see "Menu Map" (^ page 150) and "Menu Map Sheet".


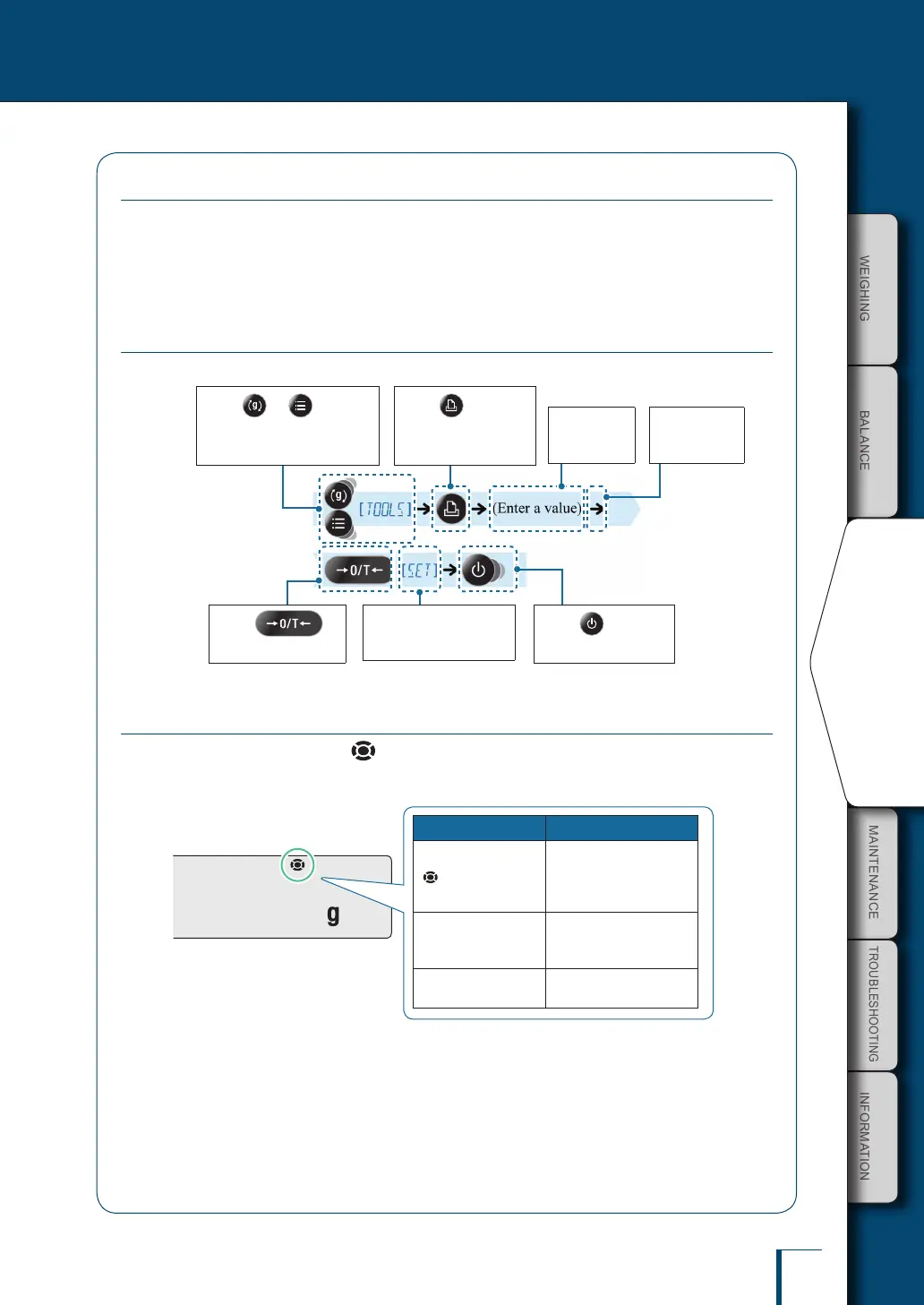

Instruction Manual
The instruction manual describes specic parts of the menu operations in a simplied form.
Press or a number
of times to search for the next
menu option.
Press
to conrm.
Press to proceed
to the next menu
option.
User
operations
Flow of menu
operations
Press a number
of times.
Information displayed in
the menu display area

Menu Operation Key Symbol
On entering menu operation, (the menu operation key mark) lights up.
The keys represented by lid segments can be used.
!0.0!0!0!0
Displayed symbol Meaning
in the middle
The menu option
currently displayed
requires conrm and
set operations
Arcs on the right
and left side
A higher or lower level
exists in the menu
hierarchy
Arcs on the upper
and lower side
Other menu options can
be selected
Example of numeric value entry
