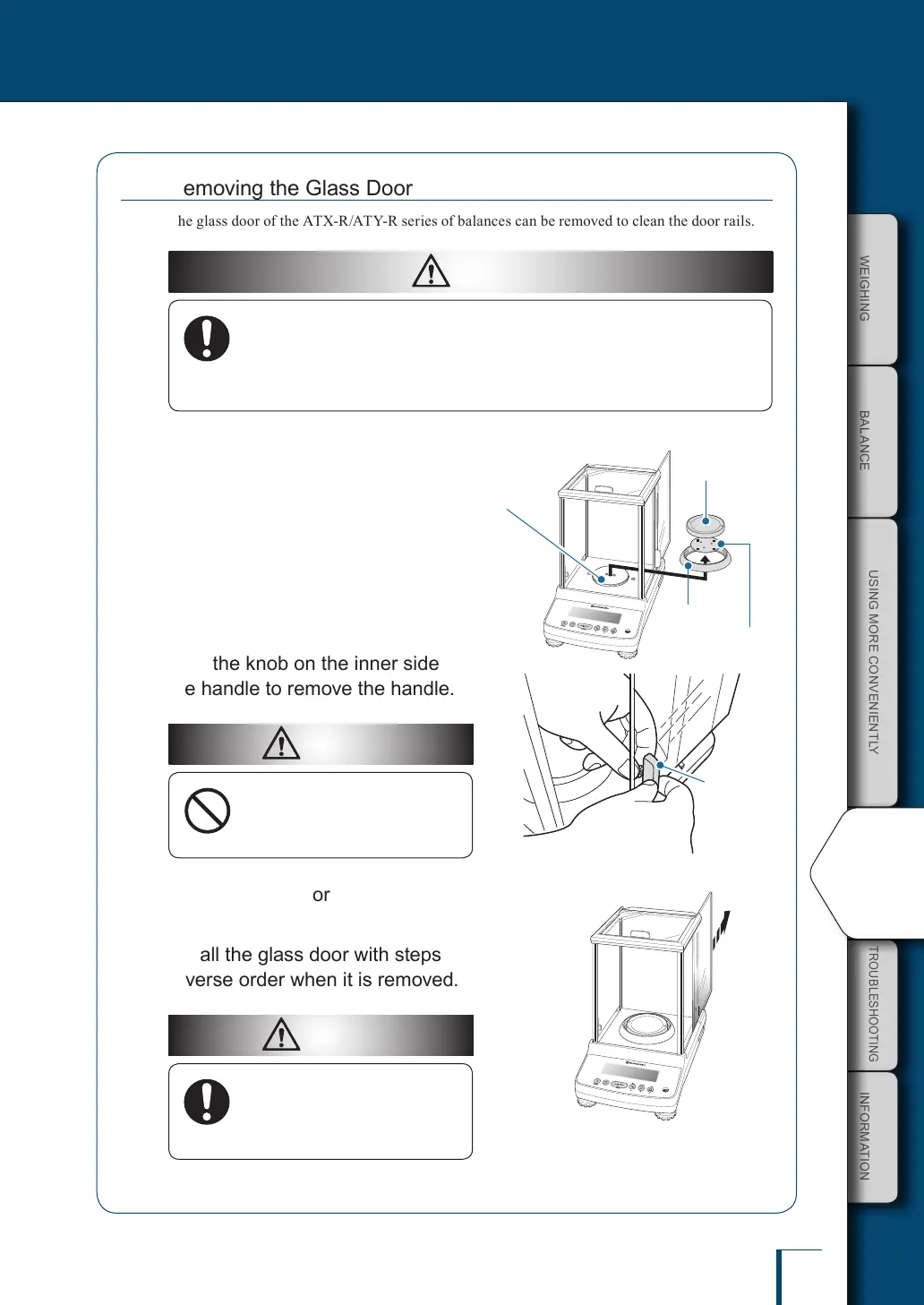

Removing the Glass Door
The glass door of the ATX-R/ATY-R series of balances can be removed to clean the door rails.
Caution
Instructions
Handle the glass door with due care.
•
Take care when handling the glass door so as not to crack it.
•
Take care not to injure your hands on the door rail.
•
Exercise due care when handling broken glass.
1
Remove the pan ring, the pan and
pan supporter.
2
Turn the knob on the inner side of
the handle to remove the handle.
Caution
Prohibitions
Do not touch the pan support
shaft.
This could damage the balance.
3
Pull the glass door out from the rear.
4
Install the glass door with steps in the
reverse order when it is removed.
Caution
Instructions
When tting the glass door,
be sure to t the knob.
If you forget to t the knob the
glass door could fall off.
Pan
Pan supporter
Pan support
shaft
Handle
Pan ring
