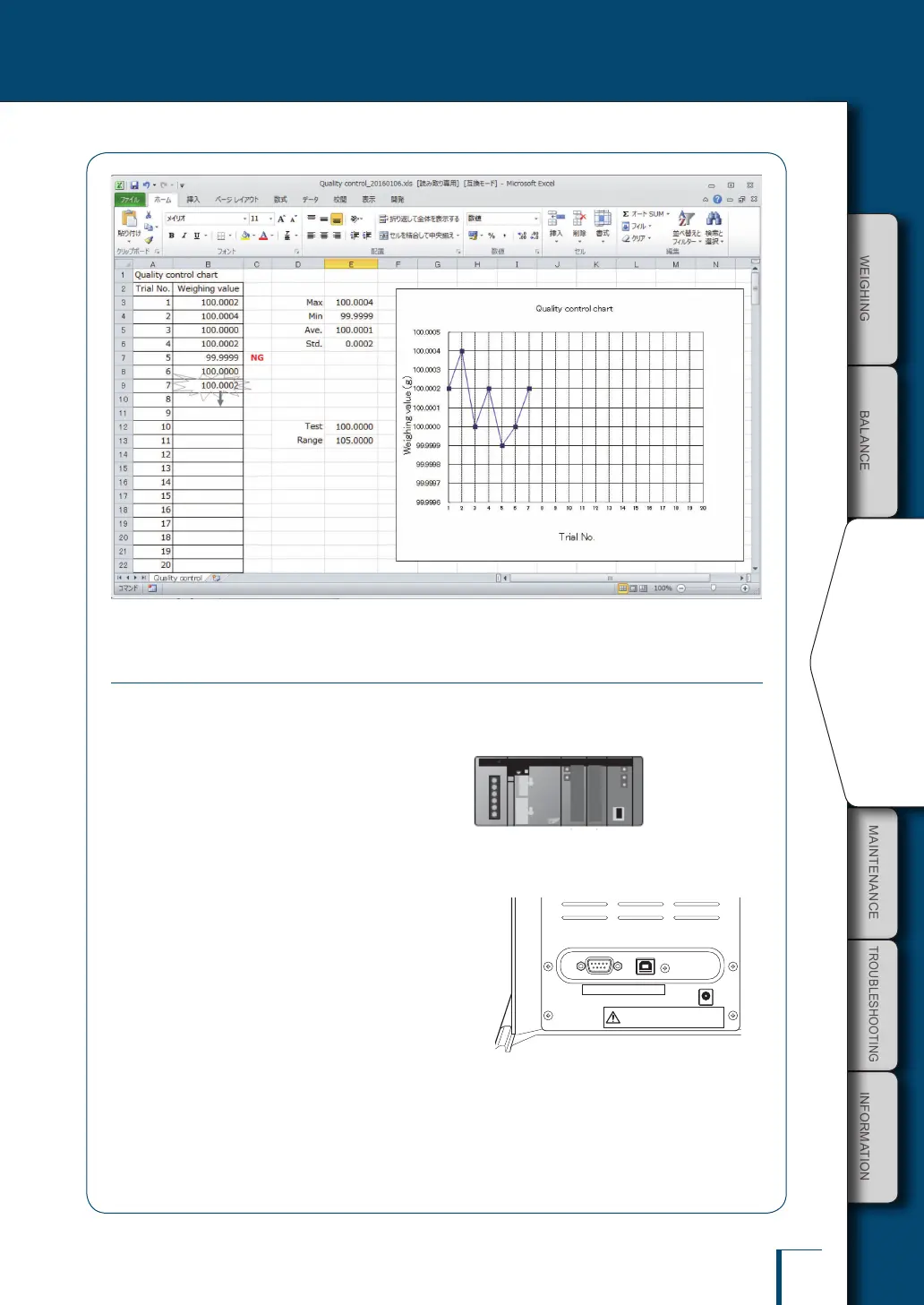

Example of balance data loaded onto an Excel worksheet
Connecting PLCs and Other Serial Communications Equipment
It is possible to connect PLCs and other serial
communication equipment to output weight
values, perform taring and calibration with
special commands, and read and write setting
values. Connect the equipment to the balance
in accordance with the following procedures in
this event.
1
Switch off the power to the
balance and other equipment.
2
Firmly connect the [RS232C]
connector on the rear of the
balance to the communication
connector on the equipment with
the use of a special cable prepared
by the user.
* See [Cable Connections (RS232C)] (P.120).
3
Switch on the power to the balance.
シーケンサ(PLC) 等 シリアル通信機器
ケーブルはお客様でご用意ください。
PLCs and other serial communication
equipment
Cables to be prepared by the user
RS232C USB DEVISE
Rear of the balance
