This measures the sample (solid) weight in air and in liquids of known density (or specic gravity)
and then calculates the sample's density (or specic gravity). The following procedures are when using
hanging plates and water tanks to be prepared by the customer. Use of the optional SMK-501 specic
gravity measurement kit allows for even easier measurement of specic gravity. Refer to the kit
instruction manual for usage methods when using the kit.


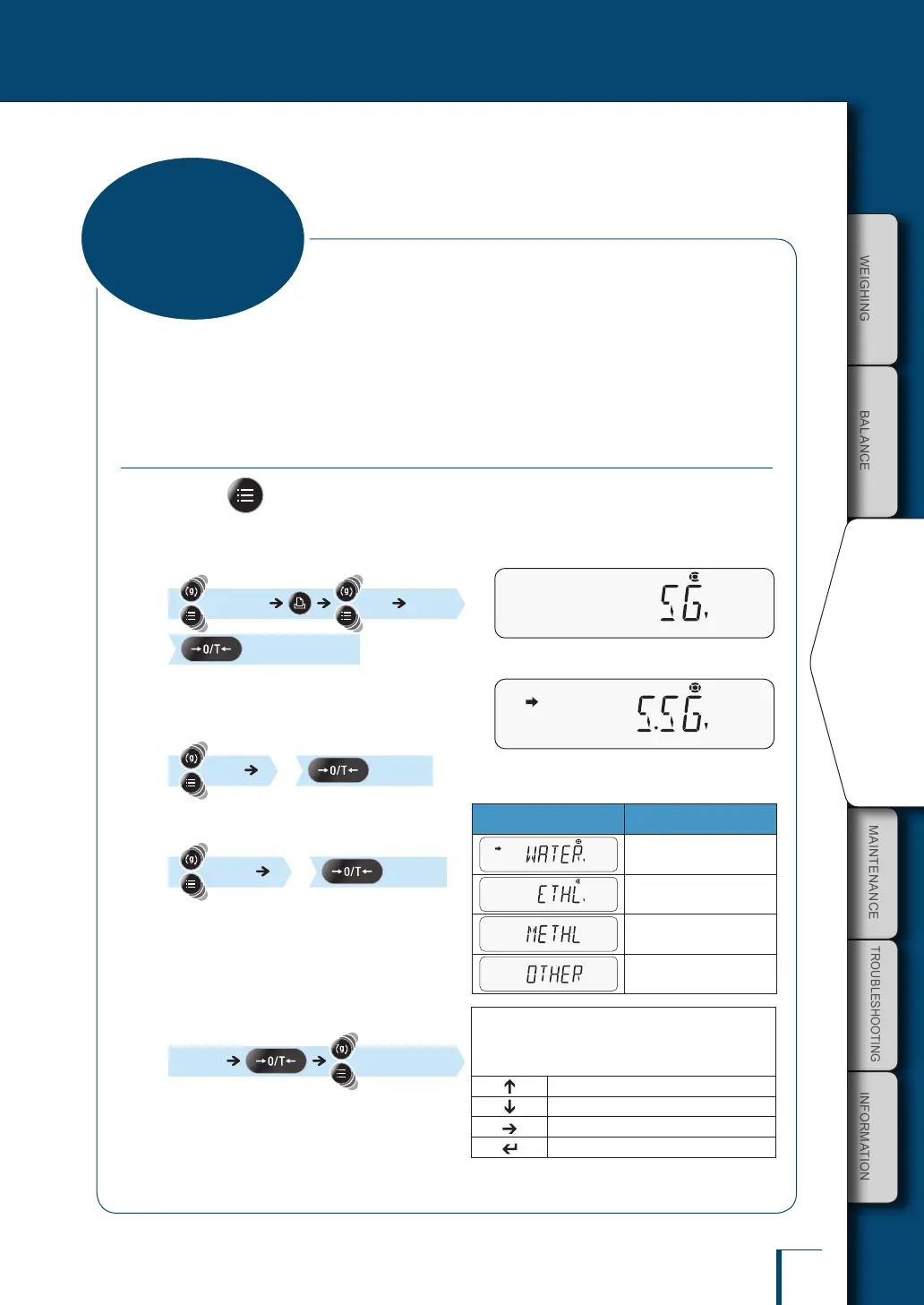

Preparation for Solid Specic Gravity Measurement
1
Press 2 times in mass measurement mode.
The main menu will open.
2
Select specic gravity measurement.
[APL.FUNC] [SG]
[SET]
3
Select solid specic gravity
measurement.
[5.56] [SET]
4
Congure the medium
[WATER] [SET]
5
Enter the medium temperature.
[L.TEMP] [25.0] [SET]
For OTHER, the medium temperature input
screen will not be displayed, and you will
instead input the medium density directly.
Display Medium
Water
Ethyl alcohol
AP
Methyl alcohol
Other
Value input
The balance display will switch to value input mode,
and the 1st digit will blink and be able to be changed
as described below.
Increase value
Decrease value
Move right
Conrm value
Measuring Specic
Gravity of Solids (Solid Specic
Gravity Measurement)
