This section lists the names of the various parts of the ATX-R/ATY-R Series and explains their major
functions.


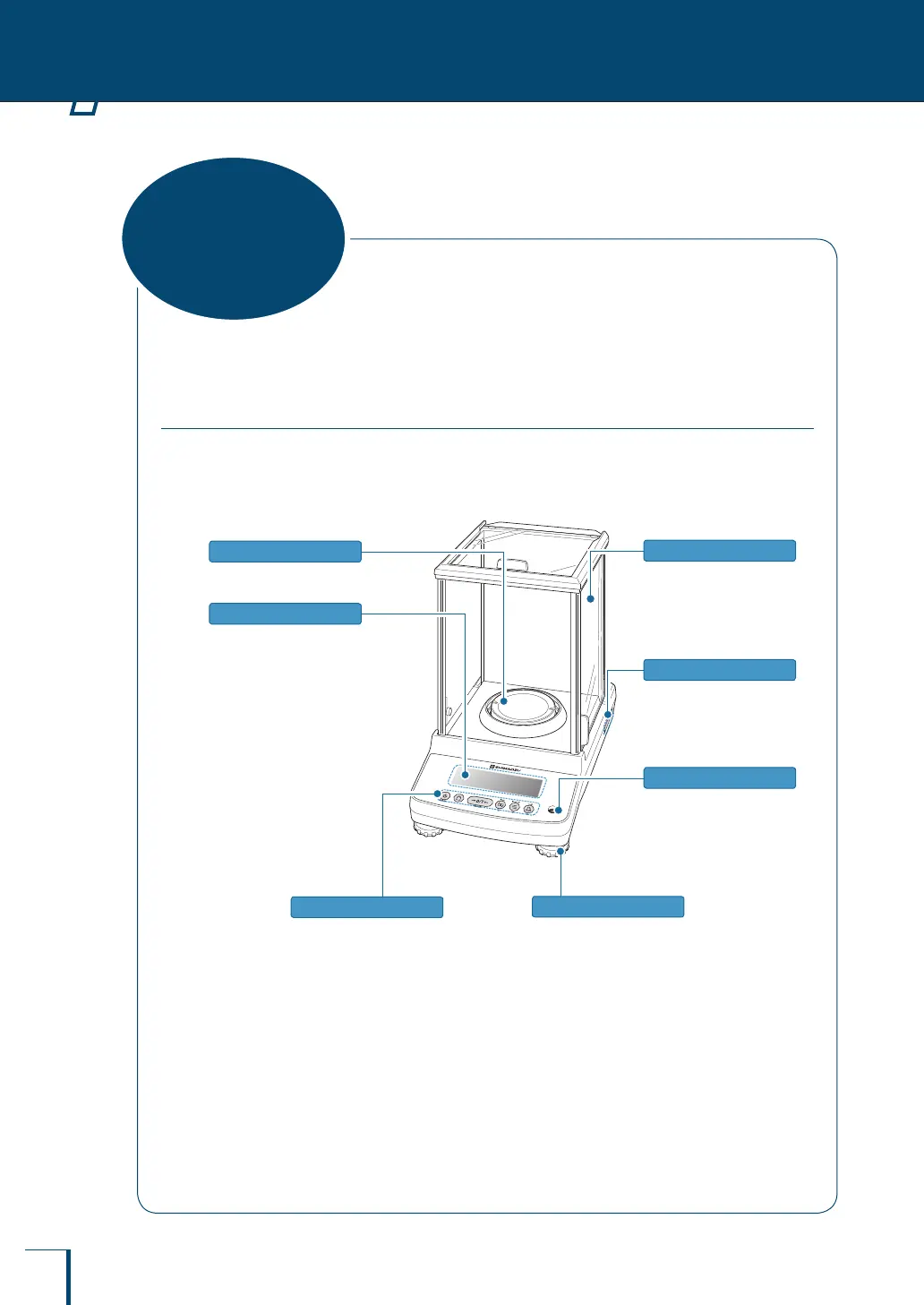

Main body
The ATX-R/ATY-R Series comprises toploading electromagnetic balances with UniBloc
weighing mechanism.

Main body
Even a slight breeze may affect
measurement, so the windbreak
is provided to avoid air
movements in the surroundings
inuencing the weight reading.
Indicates the level of the
balance.
(^ page 27)
Windbreak
Shows the weighing results,
information for making
function settings, the current
function setting, errors, codes
and other information.
(^ page 22)
The model name and serial
number are stated here.
Place the object to be weighed
here.
Pan
Product label
Display panel
Level
Adjust to level the balance.
(^ page 27)
Level screws
Used to tare the balance,
perform calibration and print.
(^ page 22)
Operation keys
1
BEFORE WEIGHING
Name and Function
of Components
