Shimadzu GC-2014 Operation Manual

51
3.3 Analysis using capillary column
3

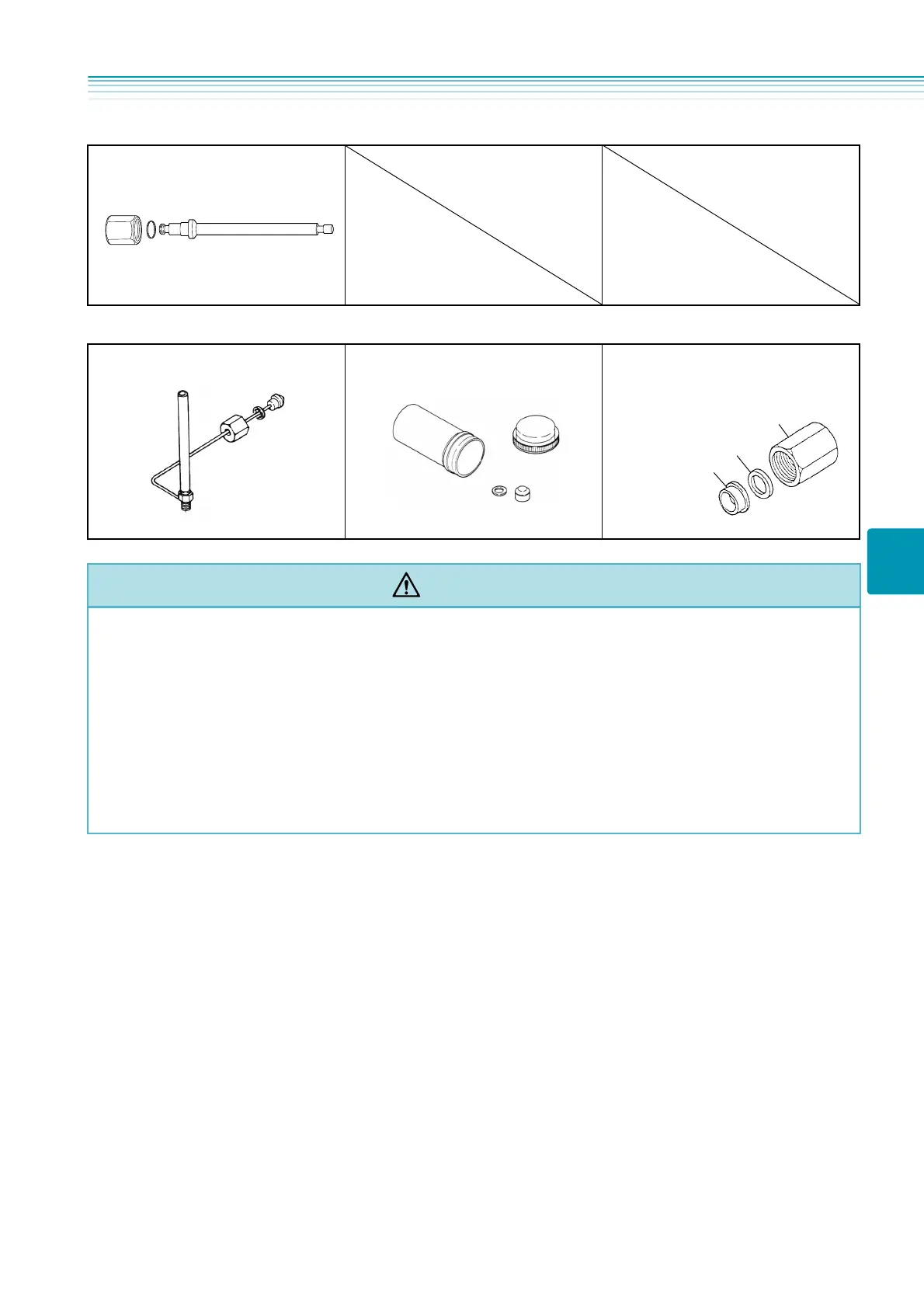

 If you are using GC-2014AFsc
 In case of installing capillary column to dual FID
Detector side adaptor
Detector side adaptor (with purge) Graphite ferrule Detector side adaptor joint
1. Back ring
2. Washer
3. Nut
3
2
1
CAUTION
When installing the capillary column to the dual FID, supplying makeup gas from the dual packed INJ using the
detector side adaptor (with purge) shown above may have an adverse effect on analysis, such as an increase
in noise due to the effects of organic substances from the graphite ferrule or due to contamination inside the
INJ, and prevent the system from fulfilling its specifications.
Although specifications will not be fulfilled, ALWAYS perform the following conditioning before installing the
detector side adaptor (with purge) in order to reduce the amount of noise etc. as much as possible.
1. Perform conditioning over one day and night by setting the temperature for the dual packed INJ to approx.
300
C and circulating gas (the gas used for makeup) at approx. 10 mL.
Make sure that the column mounting port is left open on the dual packed INJ during conditioning.
2. Condition the graphite ferrule using a gas burner.
(Same as method described in "4.7 Graphite ferrule" P.94.)

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
