Shimadzu GC-2014 Operation Manual

3.3 Analysis using capillary column
52

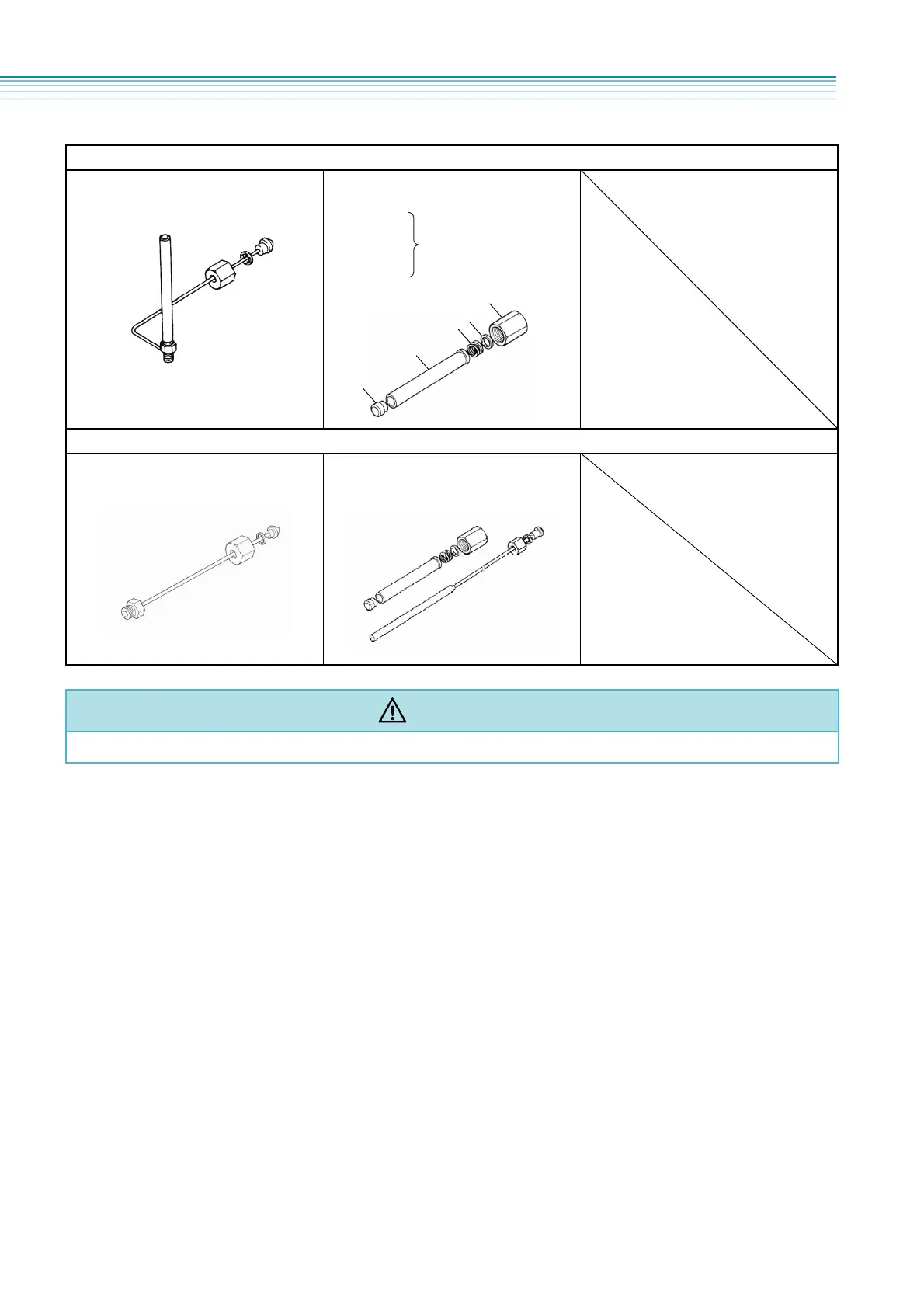

 In case of installing capillary column to TCD
Capillary column side
Detector side adaptor (with purge) Column connection parts for TCD
1. TCD graphite ferrule
2. Sleeve
3. Spring
4. Washer
5. Nut
Reference side
MN2-GM2 pipe Detector side SUS column adaptor
(for TCD)
Column connection
parts for TCD
1
2
3
4
5
CAUTION
DO NOT turn on the power until the preparation has been completed.

Shimadzu GC-2014 Specifications

General

Type	Gas Chromatograph
Display	LCD
Maximum Heating Rate	120°C/min
Data Acquisition	Digital
Maximum Number of Detectors	4
Weight	Approx. 45 kg
Carrier Gas	Helium, Nitrogen, Hydrogen
Detector Options	FID, TCD, ECD, FPD
Injection Port	Split/Splitless, On-column
Gas Control	Electronic Flow Control (EFC)
Temperature Programming Rate	0.1 to 120 °C/min
Power Requirements	230 V AC, 50/60 Hz
Detector Temperature Range	Up to 400°C (depending on detector type)
