SYSTEM DESCRIPTION 3
27
8026362 / V1-0/2022-03|SICK
Subject to change without notice
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100

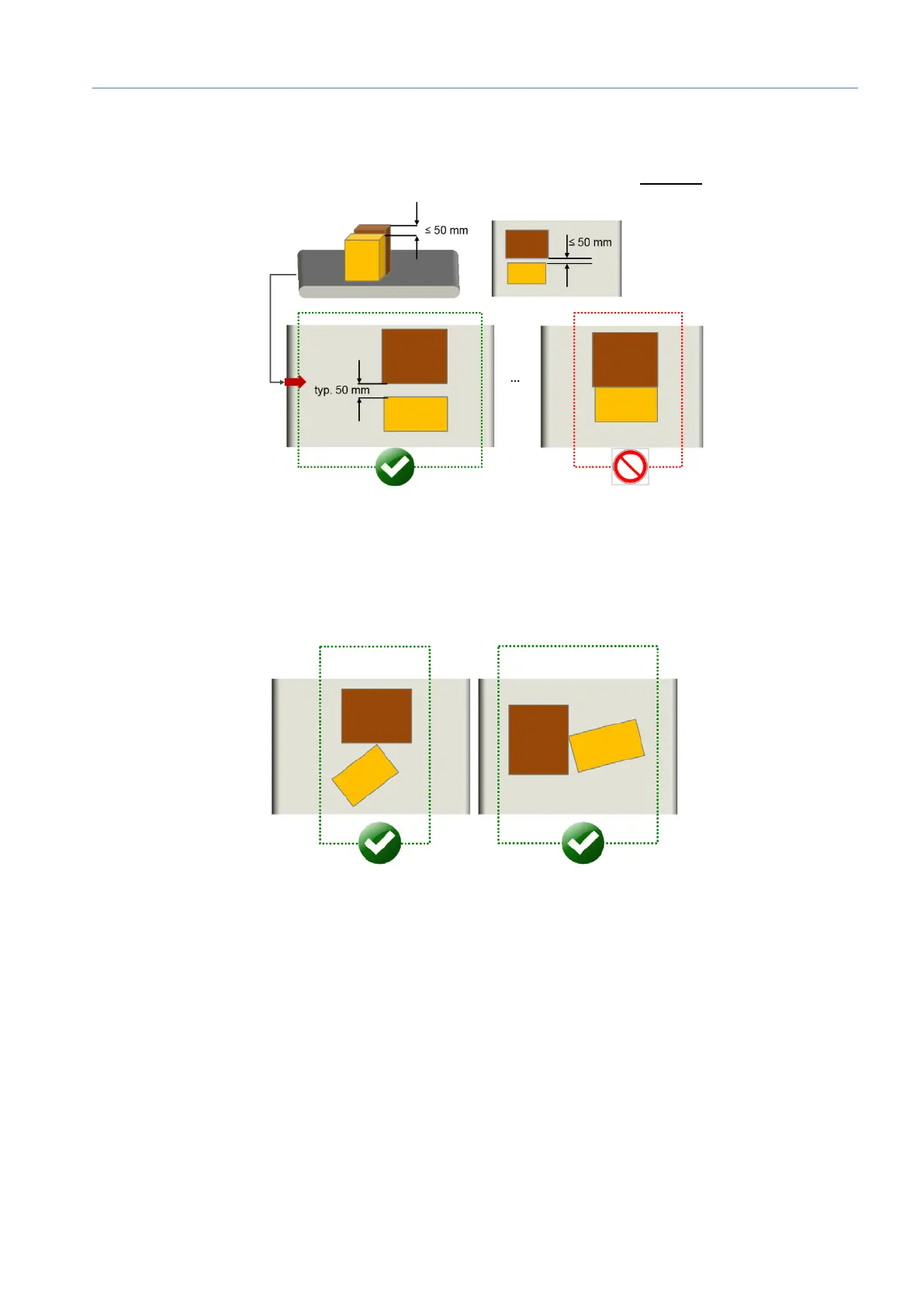

Detects the number of side-by-side cubic and irregular objects with a height difference
of ≤ 50 mm or an offset of ≤ 50 mm if the distance between the objects across to the
conveying direction is typically 50 mm. The objects must not touch.
Fig. 14: Required gap between the objects (side-by-side): typically 50 mm
OR
Detects the number of cubic and irregular objects that are transported one after the
other or side-by-side on the conveyor belt and are touching along one edge. If the
objects are touching on their faces, condition 3 or 4 applies.
Fig. 15: Objects touching along an edge
OR
Transport condition 1
Transport condition 2
