3 SYSTEM DESCRIPTION
8026362 / V1-0/2022-03|SICK
SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
Subject to change without notice
Detects the number of cubic and irregular objects that are transported one after the
other or side-by-side on the conveyor belt and are touching on their faces if the height
difference between the objects is typically 50 mm.

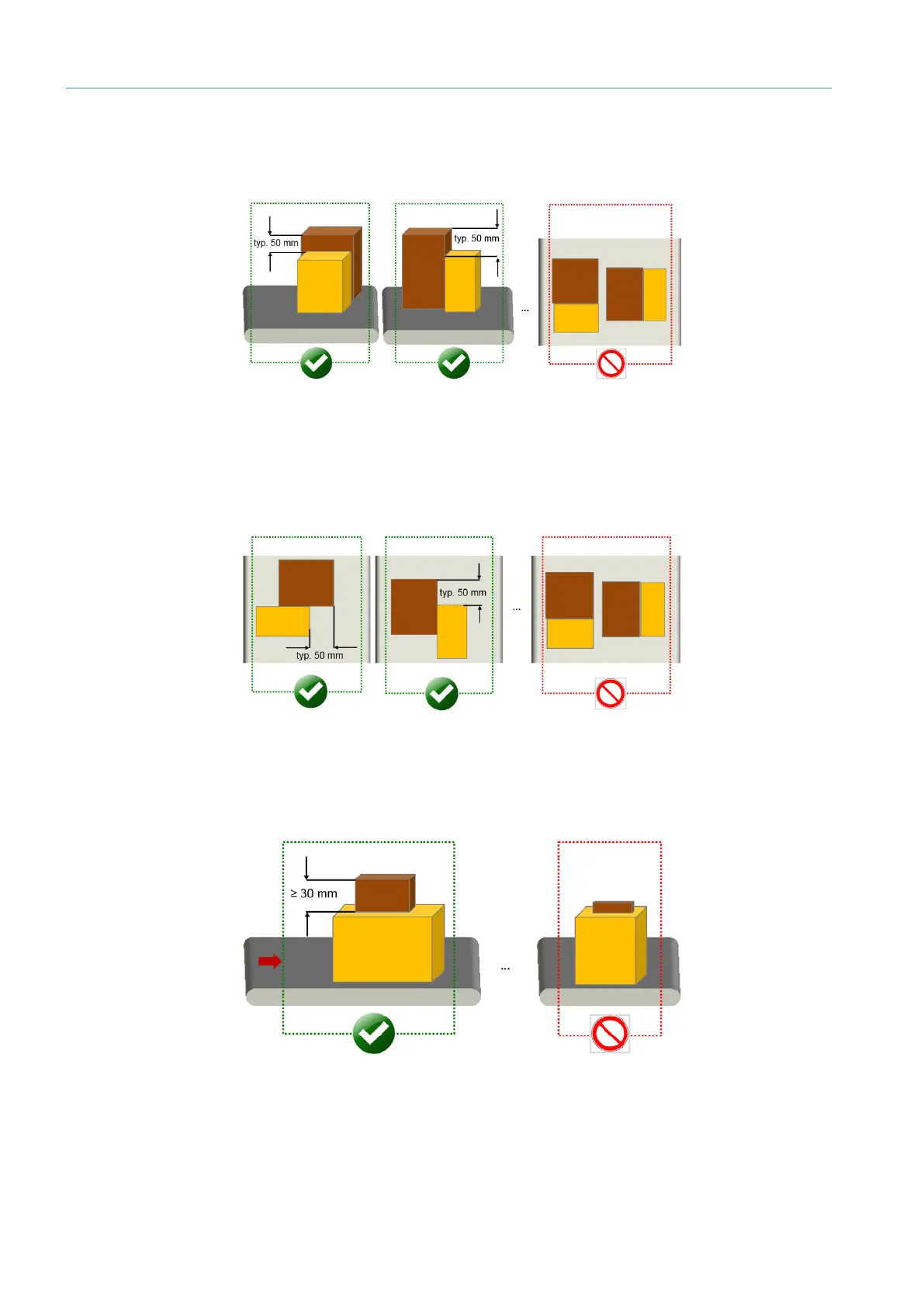

Fig. 16: Required height difference for objects touching on faces: typically 50 mm
OR
Detects the number of cubic and irregular objects that are transported one after the
other or side-by-side on the conveyor belt and are touching on their faces if the offset
between the touching objects is typically 50 mm.
Fig. 17: Required gap for objects touching on faces: typically 50 mm
OR
Detects the number of objects on top of one another, if the height difference between
the objects is > 30 mm.
Fig. 18: Required height difference for objects on top of one another: typically ≥ 30 mm
OR
Transport condition 3
Transport condition 4
Transport condition 5
