SUPPLEMENTARY OPERATING INSTRUCTIONS | VMS4100/5100
If fixed scale values are defined for the VSM5100, use the information label for the
relevant operating mode (Singulated or Touching/Side-by-Side).
The fix scale value and the measuring unit (mm or inch) must be specified on the
information label in indelible ink. Affix the LMS4x21 type label to the appropriate field.
The type label for the SIM2000-2 Prime controller must be affixed to the metrology
information label in the appropriate field.

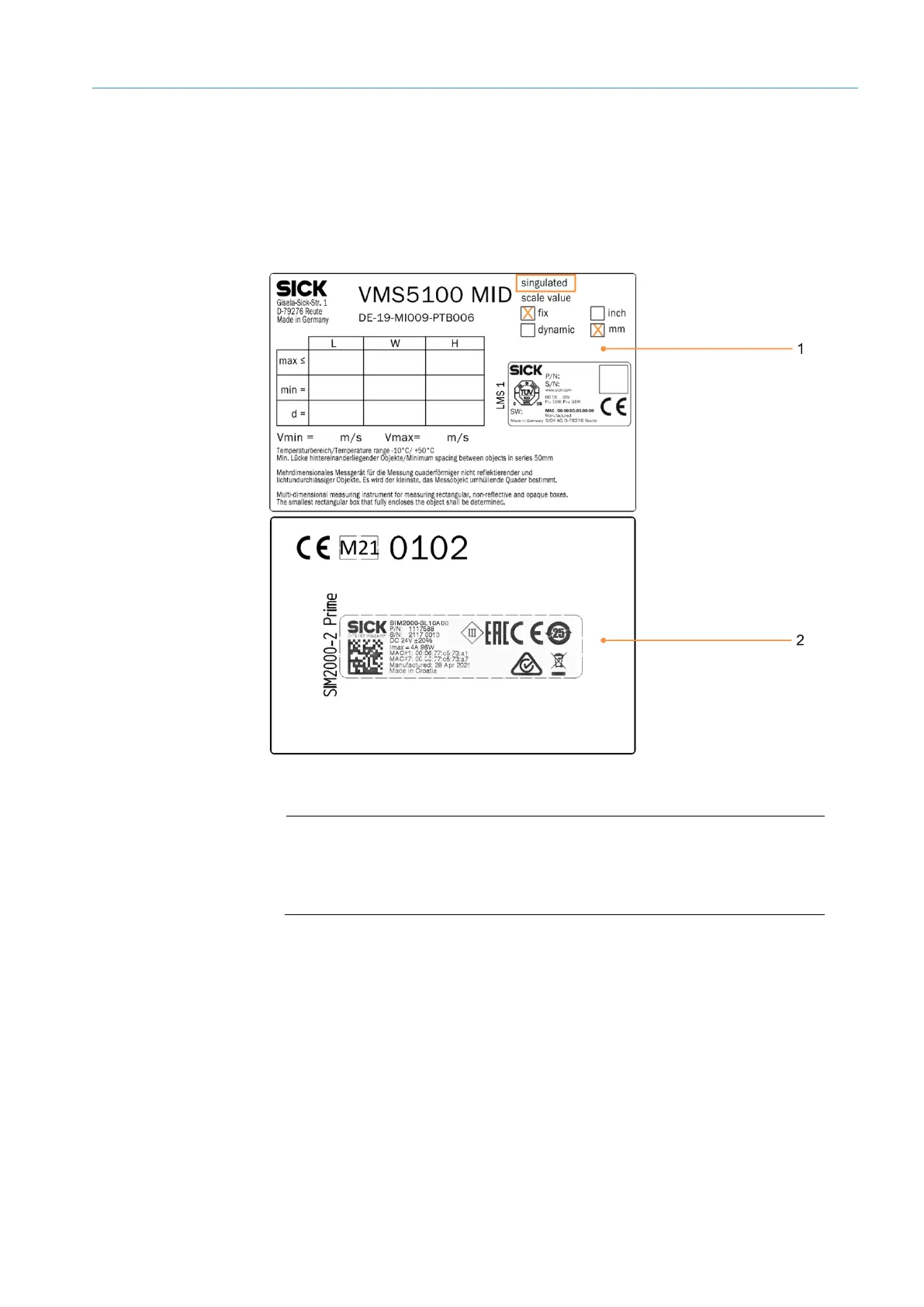

Fig. 37: Information labels for the VMS5100 in “Singulated” operating mode
with fixed scale values and affixed type labels
Legend
1 System information label in “Singulated” operating mode with fixed scale
values
2 Metrology information label with affixed type label
System information
labels with fixed scale
values
